ring Door View Cam User Manual

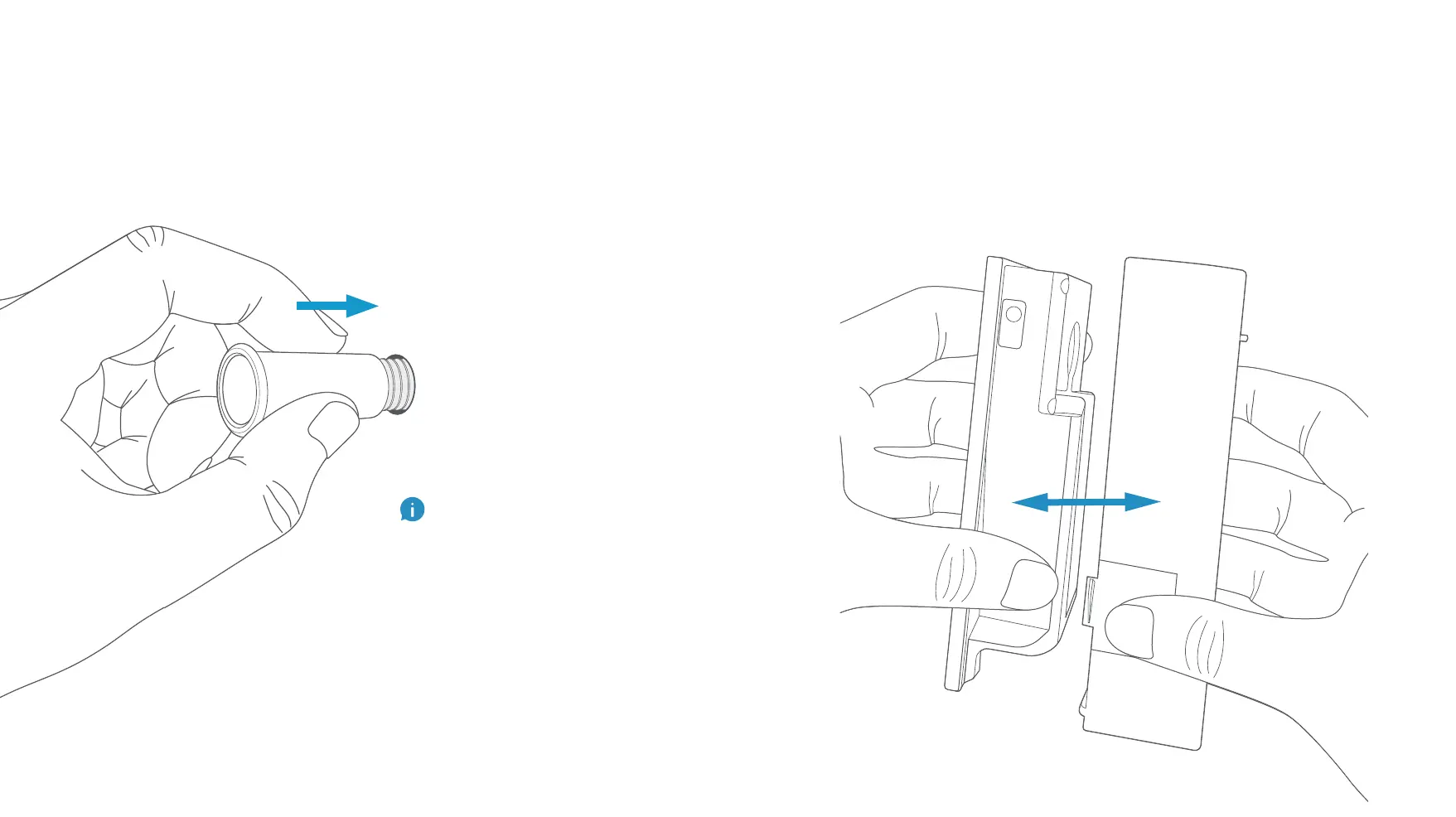

Remove the rear cover.
Grasp the thin edge of the indoor assembly body, and pinch the cover
at the indentations.
Pull the body and cover apart. Set the cover aside for now.
You might need the included adapter.
It’s used to support larger door view holes. Let’s find out if it’ll fit yours...
Remove the adapter from the Door View Kit tray. From the indoor side
of your door, place the adapter over the tube and cable, then slide it
towards the hole.
If it DOES NOT slide in easily,
don’t force it through.
You won’t need the adapter.
If it DOES slide in easily,
insert the adapter until the
rim is flush with your door.
You may have to hold the outdoor
assembly in place while inserting the
adapter to keep it from falling out;
if you’ve got a wide door, grab a partner.
1110

ring Door View Cam Specifications

General

Call notifications	Yes
Product color	Black, Nickel, White
International Protection (IP) code	IPX5
Supported video modes	1080p
Vertical field of view	90 °
Horizontal field of view	155 °
Frequency	2400 MHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Connectivity technology	Wireless
Power source type	Battery
Operating temperature (T-T)	-20.5 - 48.5 °C

Weight and Dimensions

Bell depth	29.5 mm
Bell width	57.4 mm
Bell height	112 mm
