Additional Programming & Activation Requirements
Q
UESTION
?
1
Are there four water controllers connected?
IF NO:
You have three (or fewer) water controllers, go to Question 2.
IF YES:
<RXZLOOQHHGWRDFWLYDWHWKHIRXUWKZDWHUFRQWUROOHUDVIROORZV
STEP 1:
)RU WKH ZDWHU FRQWUROOHU LQWKH .,7&+(1 21/<SUHVV DQG KROG WKH µ3ULRULW\
7UDQVIHU¶DQGµ2Q2ႇ¶EXWWRQVVLPXOWDQHRXVO\VHH)LJXQWLODµEHHS¶LVKHDUG
(approximately 5 seconds).
STEP 2:
Check that the display on ALL FOUR water controllers is lit and displaying a
WHPSHUDWXUHZKHQµVZLWFKHGRQ¶,IDQ\21(RIWKHZDWHUFRQWUROOHUGLVSOD\V
two dashes (see Fig. 2) repeat STEP 1.
This completes the activation procedure for the fourth water controller, you
may ignore Question 2.
Q
UESTION
?
2
Is the water heater marked to state it delivers water not exceeding 50°C?
IF YES:
No further action required..
IF NO:
You will need to program the kitchen water controller to enable selection of
temperatures higher than 50°C.
STEP 1:
)RU WKH ZDWHU FRQWUROOHU LQWKH .,7&+(1 21/<SUHVV DQG KROG WKH µ3ULRULW\
7UDQVIHU¶ DQGµ2Q2ႇ¶ EXWWRQVVLPXOWDQHRXVO\ )LJ XQWLOD µEHHS¶ LV KHDUG
(approximately 5 seconds).
STEP 2:
:KHQWKHZDWHUFRQWUROOHU¿WWHGLQWKH.,7&+(1LVVZLWFKHG2QLWVKRXOGEH
possible to select temperatures higher than 50°C. If not, repeat STEP 1.
NOTE
If the water controller in the kitchen is replaced, repeat STEP 1 for the replacement water
controller.
If the water controller in the kitchen is swapped with another water controller (for example, the
ZDWHUFRQWUROOHU¿WWHGLQDEDWKURRPUHSHDWSTEP 1 for the water controller moved from the
kitchen to the bathroom. Then perform STEP 1 for the water controller moved from bathroom
to the kitchen.

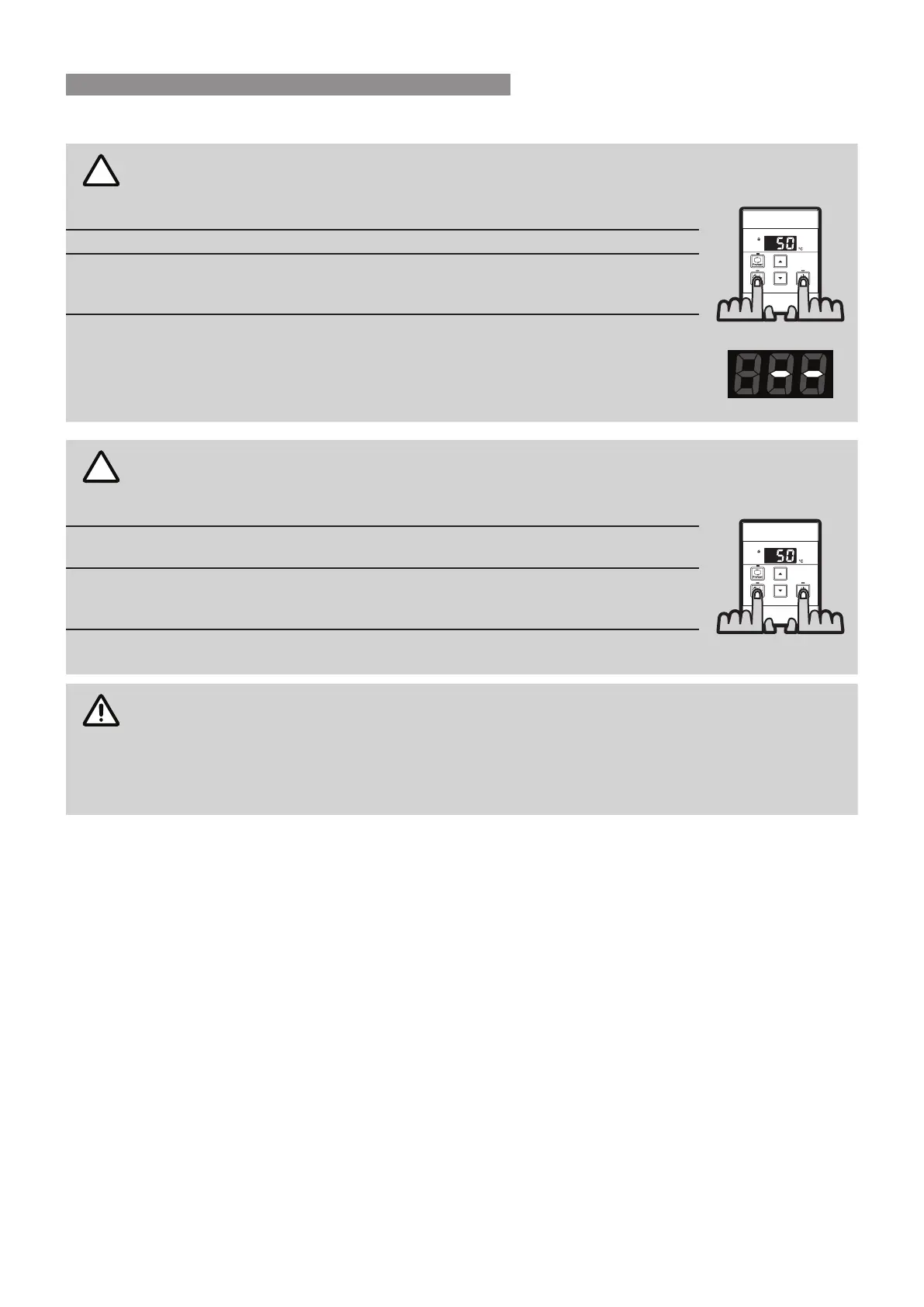

Fig. 1
Fig. 2
Fig. 3
WATER CONTROLLER INSTALLATION
