Infinity REU-V2632FFU / HD200I REU-V2632FFUC - 24 - Issue 1 - 8/09/03 ©Rinnai
*Note 3 Water Flow Servo Positioning
To return to normal operation
Press the ON/OFF button again while holding down the Water Temperature "DOWN" (Cooler)
button.
To return to normal operation.
Press the ON/OFF button again while holding the Water Temperature “UP” (Hotter) button.
This feature will automatically shut down after 3 minutes.
Servo Position Open Centre Closed
Display “1” “0” “2”
08 Inlet water temperature
(PCB recognition value)
(Example 25 = 25 C)
C
0~999
09 Hot water fan current flow value
(Example 6 x 10 = 60 mA)
10 mA 0~999
10 Bath fill amount (this counts the litres during bath
fill operation).
Litres 0~999
11 Heat exchanger exit thermistor temperature
Example 55 = 55 C)
C
0~999
12 Bypass servo present recognition positioning
(Example 0 = Closed
160 = Half open
320 = Open
Degrees 0~320

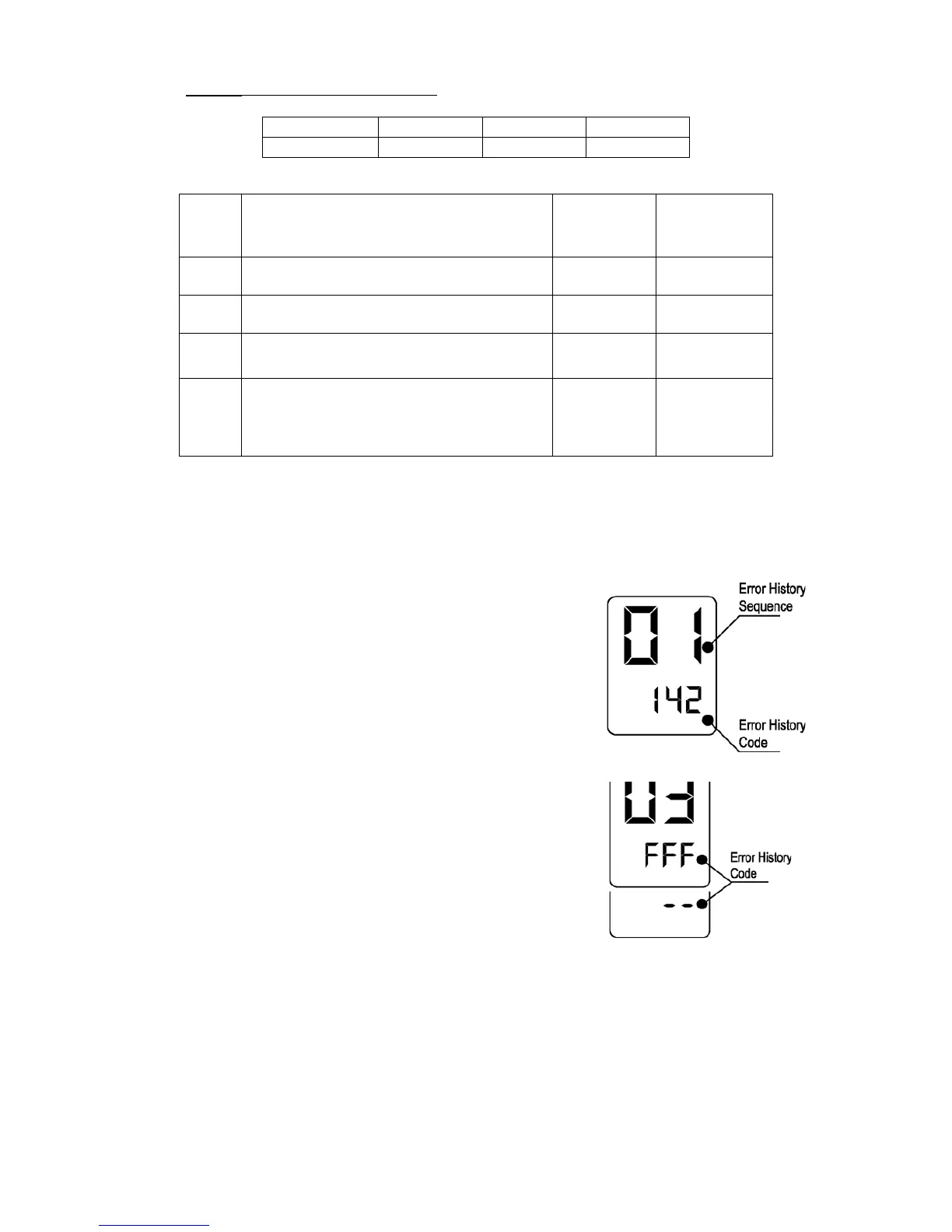

Error History
To Display Error Memory (History)
(This feature will show the last 10 faults in sequence)
1. Turn off at the ON/OFF button. (This can be done during
operation)
2. Press the ON/OFF button while holding the Water Temperature
"UP" (Hotter) button.
The Sequence will be shown in the Water Temperature display.
Error Code will be shown in the Clock display. (See service
Manual for error codes).
Where there are less than a total of 9 errors, "FFF" or " - - " will
be displayed in the Clock display.
°
°
°
°
