32 VA Series Outdoor LS Manual
Fig.5
Fig.4
Fig.3
Fig.2
Fig.1

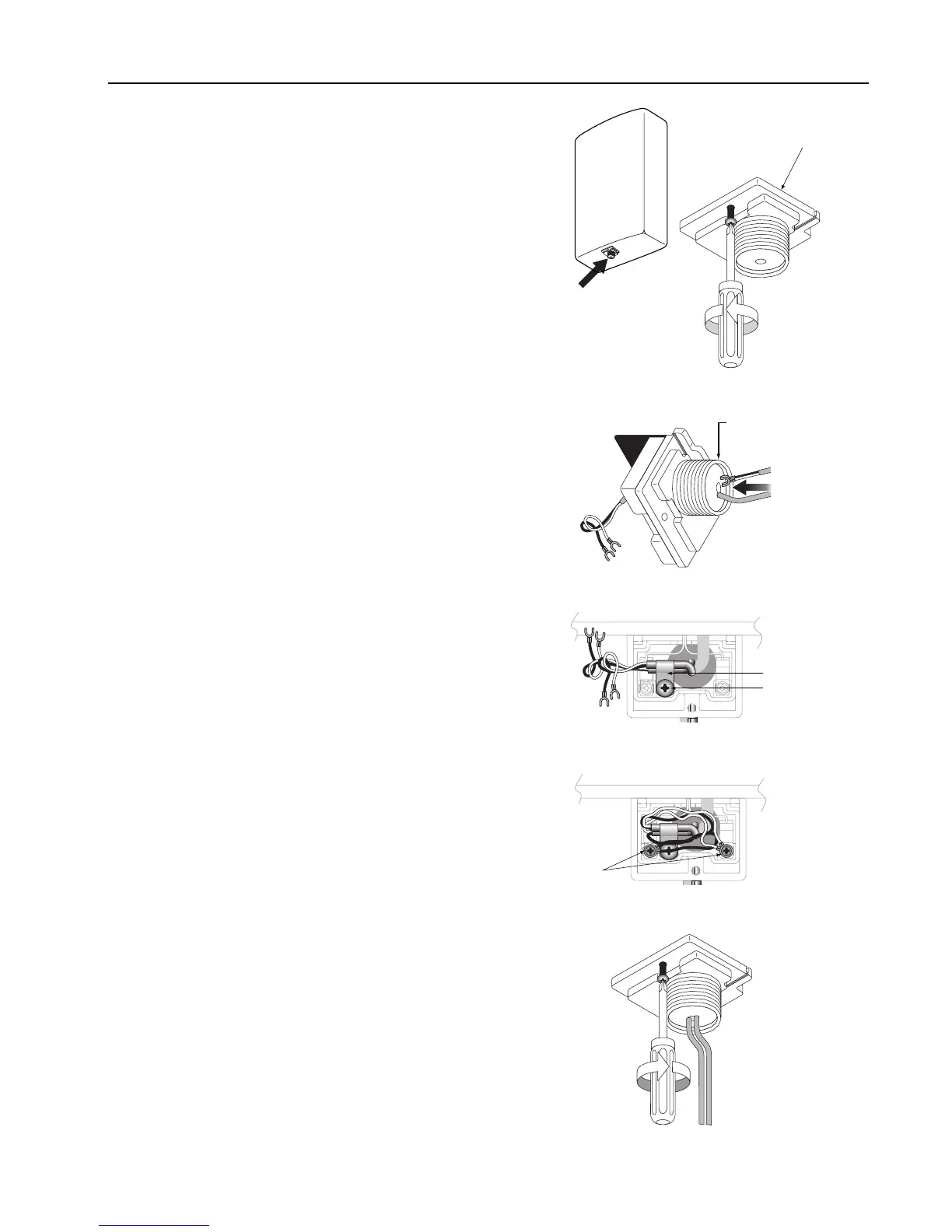

7. Disconnect the power from the water heater.
8. Remove a screw on the Quick Cable Connector.
(Fig. 1)
9. To access the cable screws rotate the Quick
Cable Connector 90º (Fig. 2)
10. Insert wire cable through the Cable Access Hole
(Fig. 2)
12. Loosen 2 cable screws on the terminals for
controls and connect the cable. You cannot
connect more than 2 cables at a time. When
connecting more than 2 cables, connect them in
parallel. (Fig. 4)
11. Loosen the clamp screw and secure wire cable
with clamp. The clamp is in the box with the
remote controller. Make sure the length of the
wire is long enough. There should be no tension
in the wire. (Fig. 3)
13. Install the Quick Cable Connector with 1 screw.
(Fig. 5)
Remote Controller Installation
Connecting to the R63LSe
Cable Access
Hole
Clamp
Clamp Screw
Cable Screw
Quick Cable
Connector
To Next Page
