Rinnai R63LSe - Dimensions

36 VA Series Outdoor LS Manual

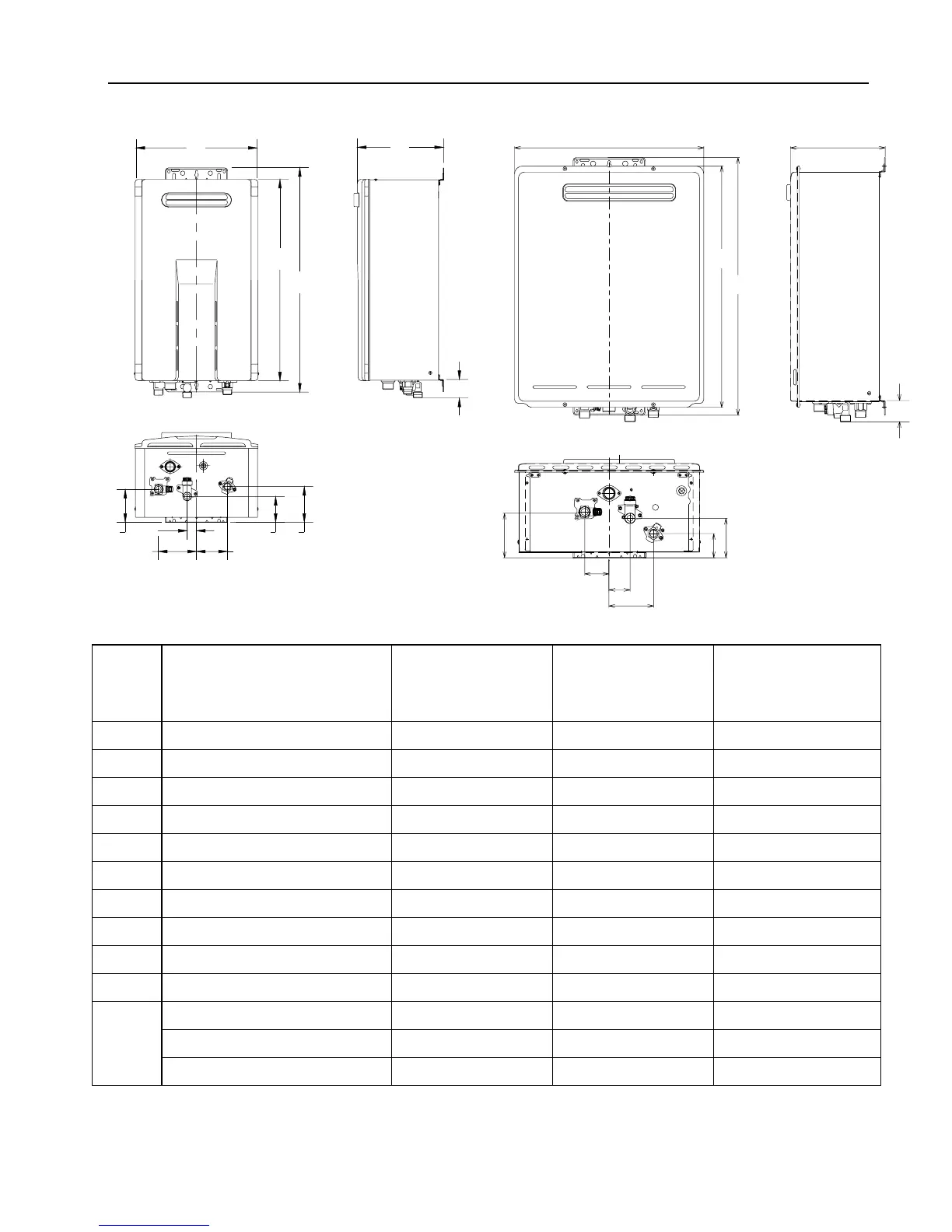

Dimensions
DIM DESCRIPTION
R63LSe
in (mm)
R75LSe
R94LSe
in (mm)
R98LSe
R98LSe-ASME
in (mm)
A Width 14 (355.6) 14 (355.6) 18.5 (470)
B Depth * 7.7 (196) 9.8 (249.5) 9.3 (235.5)
C Height - Unit 19.8 (503) 22.9 (582) 23.6 (600)
D Height - with brackets 22.5 (571) 25.4 (646.4) 25.2 (640)
E Hot Water Outlet - from wall * 3.4 (87) 3.8 (96) 4.5 (115)
F Hot Water Outlet - from center 4.1 (105) 4.3 (110) 2.4 (61)
G Cold Water Inlet - from wall * 2.7 (68) 3.0 (75) 3.9 (99)
H Cold Water Inlet - from center 0.4 (10) 1.1 (27) 2.0 (52)
I Gas Connection - from wall * 3.0 (77) 4.1 (104) 2.4 (61.2)
J Gas Connection - from center 3.3 (83) 3.5 (89) 4.3 (110)
From base to gas connection 1.6 (40) 1.6 (40) 1.6 (40.2)
K From base to cold connection 2.0 (50) 2.0 (50) 2.0 (50.2)
From base to hot connection 1.6 (41) 1.6 (41) 1.6 (41.2)
G
I
F
H
J
E
C
D
A
B
K
A
F
J
H
E
I
G
B
R63LSe, R75LSe, R94LSe R98LSe, R98LSe-ASME
C
D
K
