Rinnai 11 Portable Room AC OIM

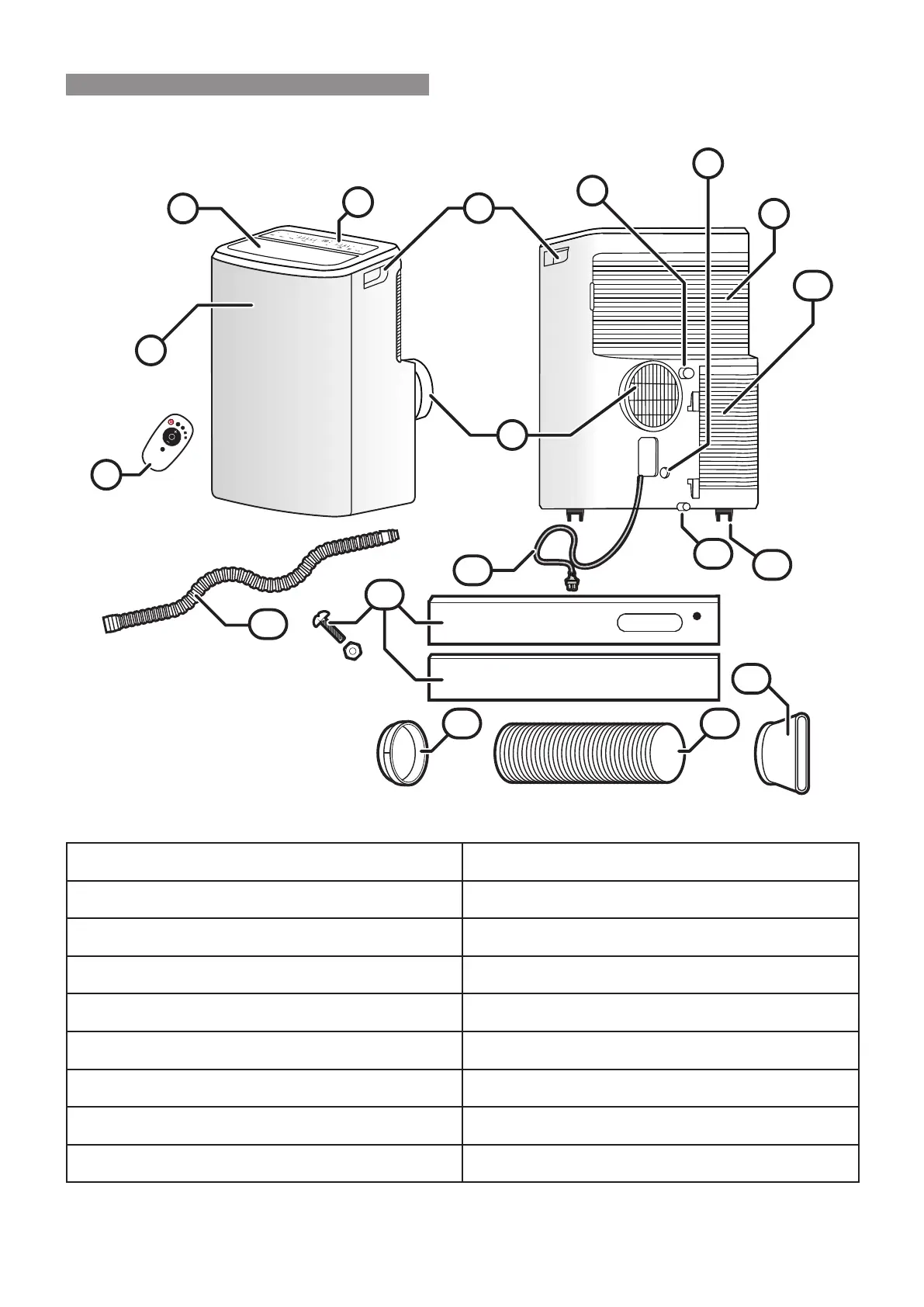

APPLIANCE COMPONENTS
1� Control panel 2� Cool air outlet
3� Receiver window 4� Remote control
5� Exhaust outlet 6� Carry handles
7� Drain outlet 1 8� Drain outlet 2 (not used on this model)
9� Room air intake (lter located behind grill) 10� Lower air intake (lter located behind grill)
11� Swivel casters (x4) 12� Drain tray outlet
13� 1.2m exible 2 pin cord 220-240V 50Hz 10A 14� Adjustable window slide kit
15� Window exhaust duct window adaptor. 16� Exhaust duct (extends to 1.8M)
17� Duct to appliance adaptor 18� Condensate drain hose
1
2
3
4
9
6
5
7
8
11
12
13
10
Front
Back
15
17 16
18
14
