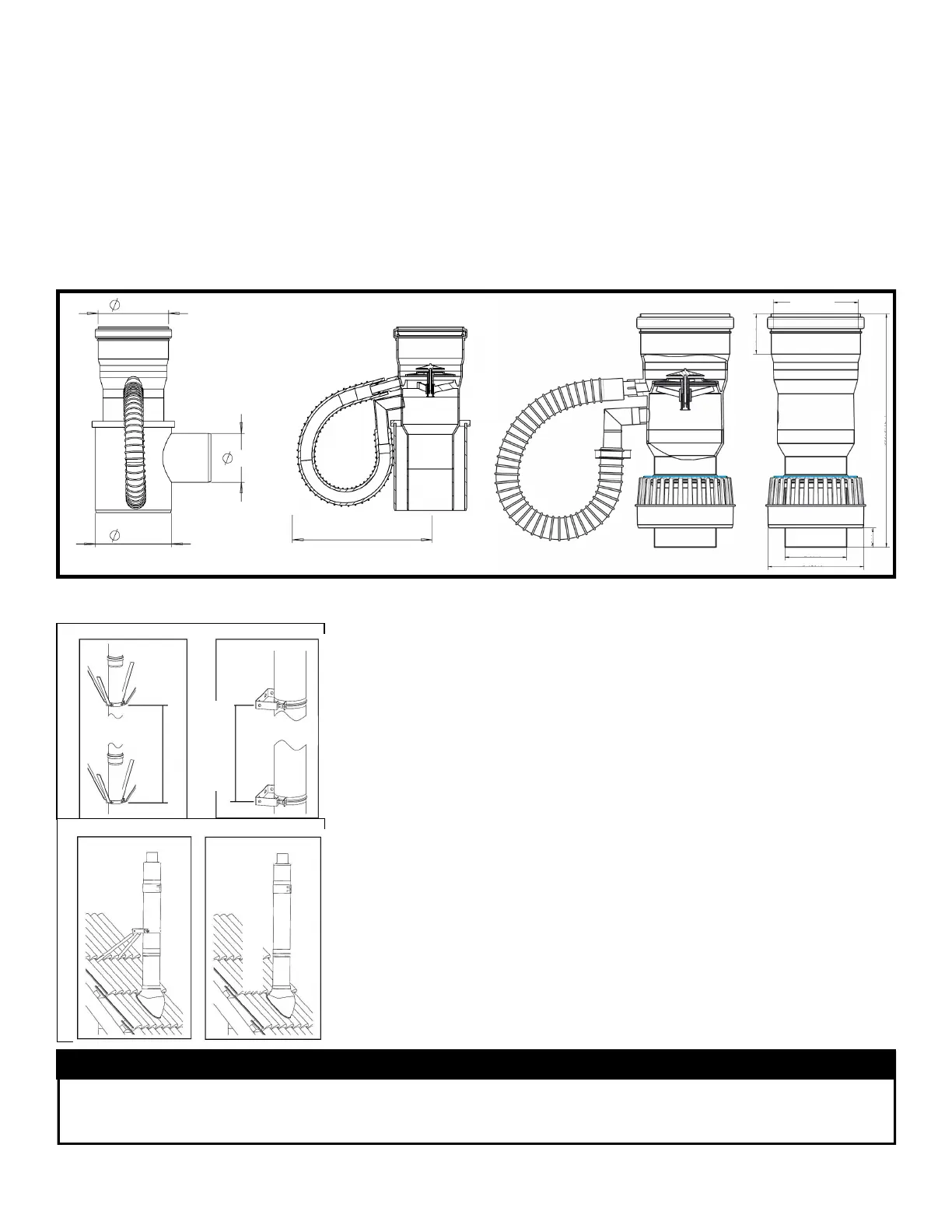

A11 Installation and maintenance of the check valves
•The Check Valves must be Installed vertically as first component over the appliance, and are part of the installation kit.
•For B-type installations (room air dependent) the air intake spigot can be protected for debris with a grid, for C-type ap-
pliances (closed system) the air inlet system can be connected to the spigot.
•The valves must be inspected and checked annually, or after 4000 operation hours.
•Rinse the valves with lukewarm water, using the condensate outlet to flush.
Do not use aggressive or abrasive cleaning agents, as these can affect the functionality of
the valves
A12 Clearances of brackets
All supports such as e.g. wall brackets on the external façade or spacer blocks
in a shaft must be assembled in a maximum distance of 6ft (2m). Where there
is an bend, additional spacer blocks or wall brackets can be planned before and
after the bend, depending on the local situation.
A13 Inspection after assembly
After assembly of a system chimney the following points must be noted
inspected
•Carry out a visual seal inspection of the whole flue gas tract.
•The chimney is put into operation together with the heating appliance.
•Regular cleaning and maintenance in accordance with valid country-specific
regulations
Note
The check valves must be inspected for debris and checked annually, or after 4000 operation
hours.
≤6ft (2m)
≤6ft (2m)
≤4.5ft (1.5m)
4.5”
12”
2”
1”
3”
5”
9-12”
3.15”
4.92”
4.57”
