KCM Series Manual 15

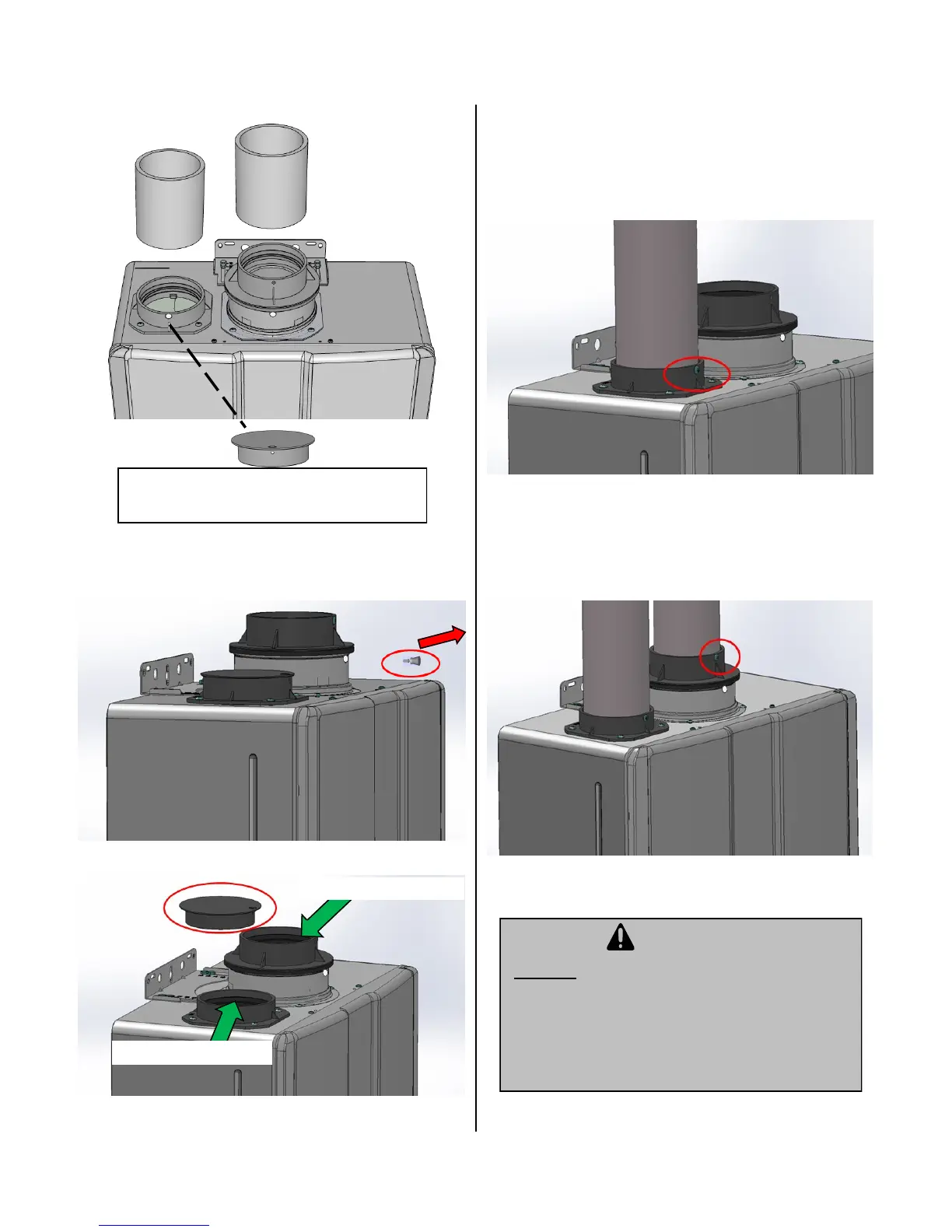

Intake Cap to be removed and discarded
for twin pipe PVC/CPVC conguraon.
Removal of Intake Cap
1. Remove the fastener from intake connecon.
2. Remove the intake cap.
Twin Pipe PVC/CPVC Conguraon
(3”or 4”)
3. Install the intake pipe. Ensure it is properly
seated.
4. Secure the intake pipe to the unit with the
supplied screw (in the carton box).
5. Install the exhaust pipe. Ensure it is properly
seated.
6. Secure the exhaust pipe to the unit with the
supplied screw (in the carton box).
apply PVC glues, solvents, or cleaners
to the water heaters intake or exhaust gasket
connecons. Failure to correctly assemble the
components according to these instrucons
may result in property damage, personal injury,
or death.
Intake Gasket Connecon
Exhaust Gasket Connecon
To Next Page
