 Comply with the exhaust clearances found in this Rinnai Installaon and Operaon Manual.
 Only one appliance can be aached to the vent system.
 Install the system according to the Centrotherm installaon instrucons included with the vent system.
 The vent terminaon and air intake must be in the same pressure zone.
 Do not exceed the maximum straight vent length with number of elbows as shown in the tables in the
following secon.
 Maintain the clearances shown in the gures below.

The following vent materials are for use with this appliance:
 Cellular core PVC/CPVC
 Radel, ABS, and/or Galvanized ducts.
Failure to use approved vent materials can result in property damage, personal injury, or death.

Flue Installaon with Centrotherm Venng (indoor models only)

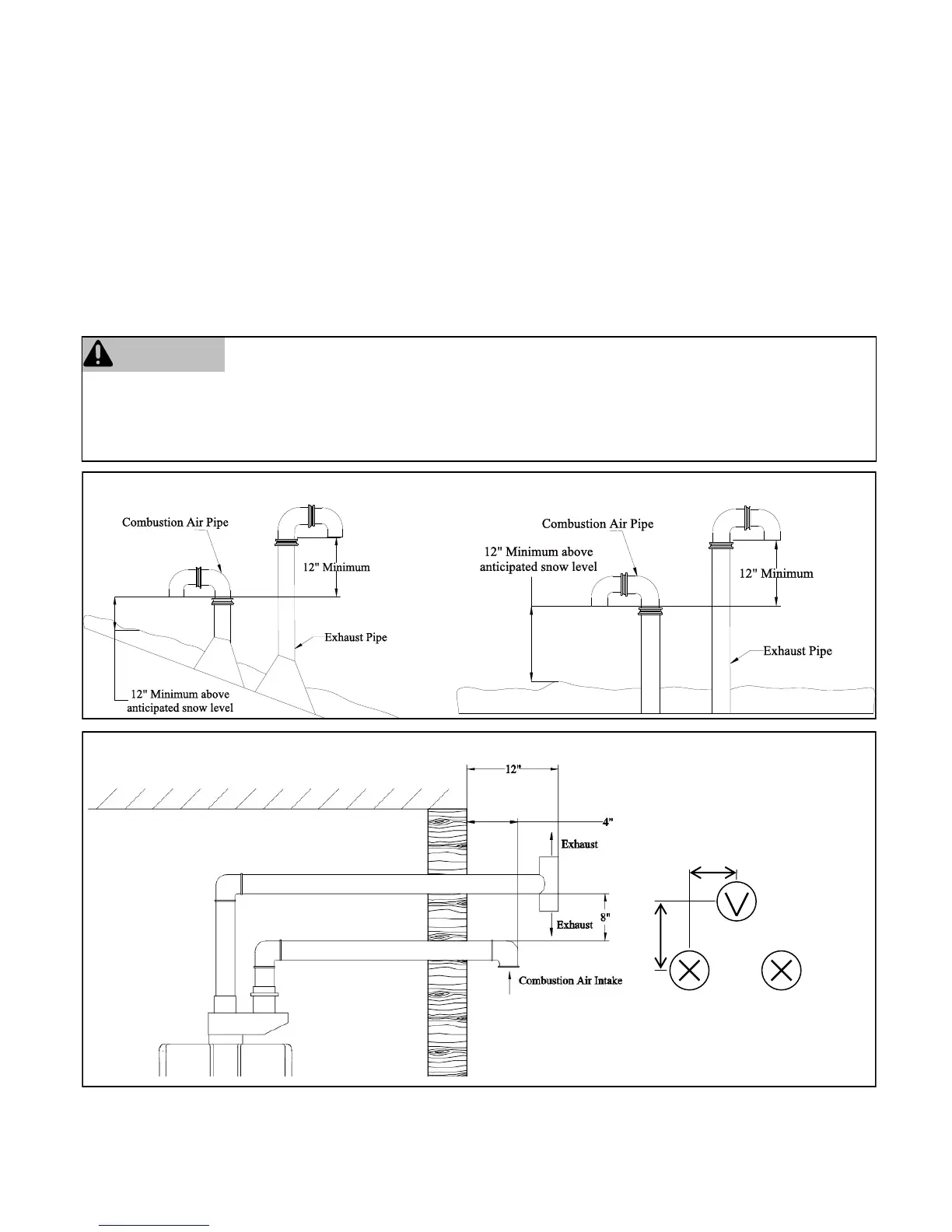

Install the venng terminaon according to the diagrams and instrucons below.

11”
5”
Intake
Oponal
Vent
Slope horizontal exhaust run towards the water heater 1/4” per foot. slope combuson air pipe towards unit. Be
sure to dispose of condensate per local codes.

Rinnai RUS75e series Specifications

General

Brand	Rinnai
Model	RUS75e series
Category	Water Heater
Language	English
