Rinnai V Model Series User Manual

18 V53De Manual

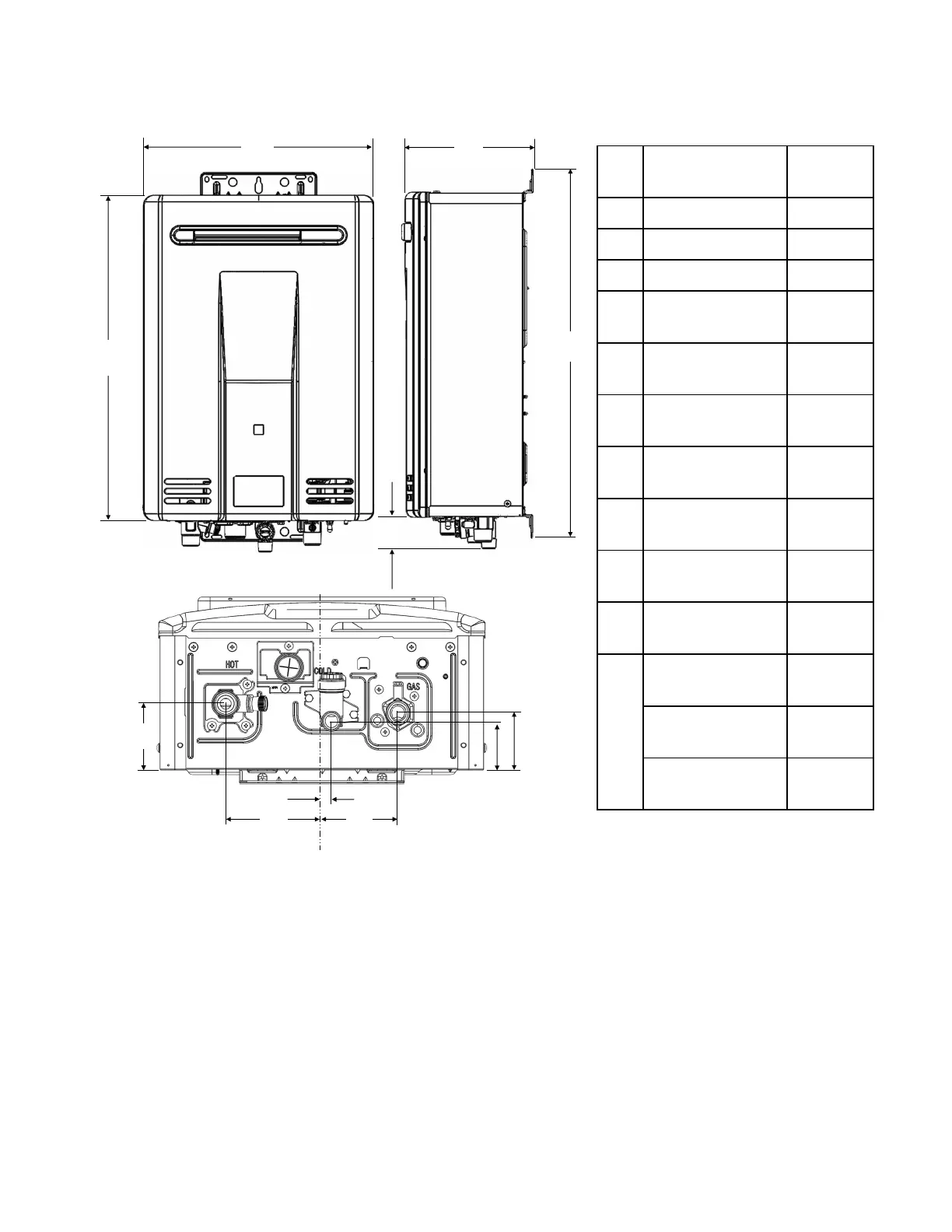

Dimensions
DIM DESCRIPTION V53De
in (mm)
A Width 14.0 (356)
B Depth * 7.9 (202)
C Height - Unit 19.8 (503)
D
Height - with
brackets
22.5 (571)
E
Hot Water Outlet -
from wall *
3.4 (87)
F
Hot Water Outlet -
from center
4.1 (105)
G
Cold Water Inlet -
from wall *
2.7 (68)
H
Cold Water Inlet -
from center
0.4 (10)
I
Gas Connecon -
from wall *
3.0 (77)
J
Gas Connecon -
from center
3.3 (83)
K
From base to gas
connecon
1.6 (40)
From base to cold
connecon
2.0 (50)
From base to hot
connecon
1.5 (39)
G
K
H
A
C
D
I
F
J
B
E
