Riotoro MORPHEUS - Exploded View

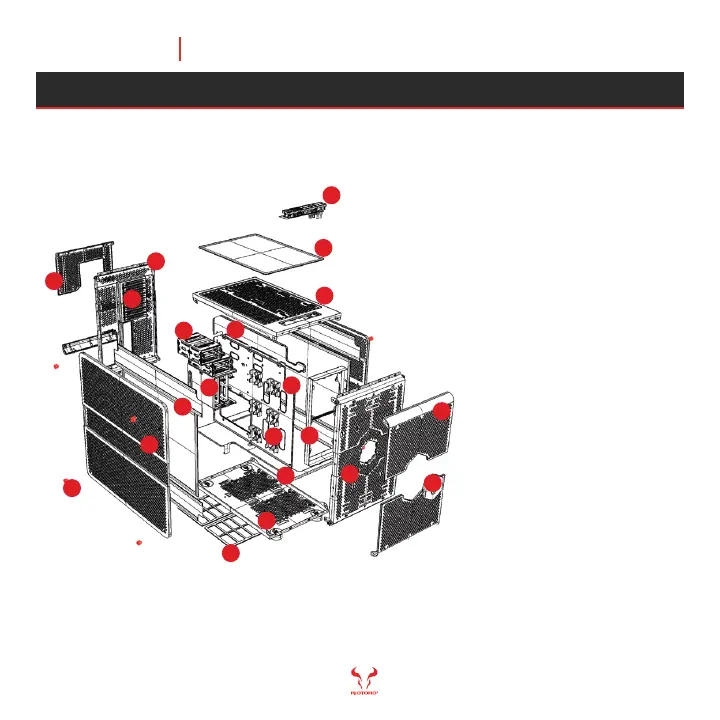

Exploded view
CONVERTIBLE PC CASEMORPHEUS
11
1
2
3
4
5
6
7
8
10
12
13
14
15
16
9
17
18
19
20
21
1. I/O panel
2. Dust filter
3. Top panel structure
4. Extension bracket
5. SSD cage
6. HDD cage
7. Middle panel
8. Cable management channels
9. Cooling bracket
10. Base plate structure
11. Bottom panel
12. Dust filters
13. Back panel structure
14. PCIe expasion bracket
15. Back trim
16. Front panel structure
17. Front trim
18. Red LED logo
19. Dust filter
20. Adjustable side panel
21. Thumb screws
