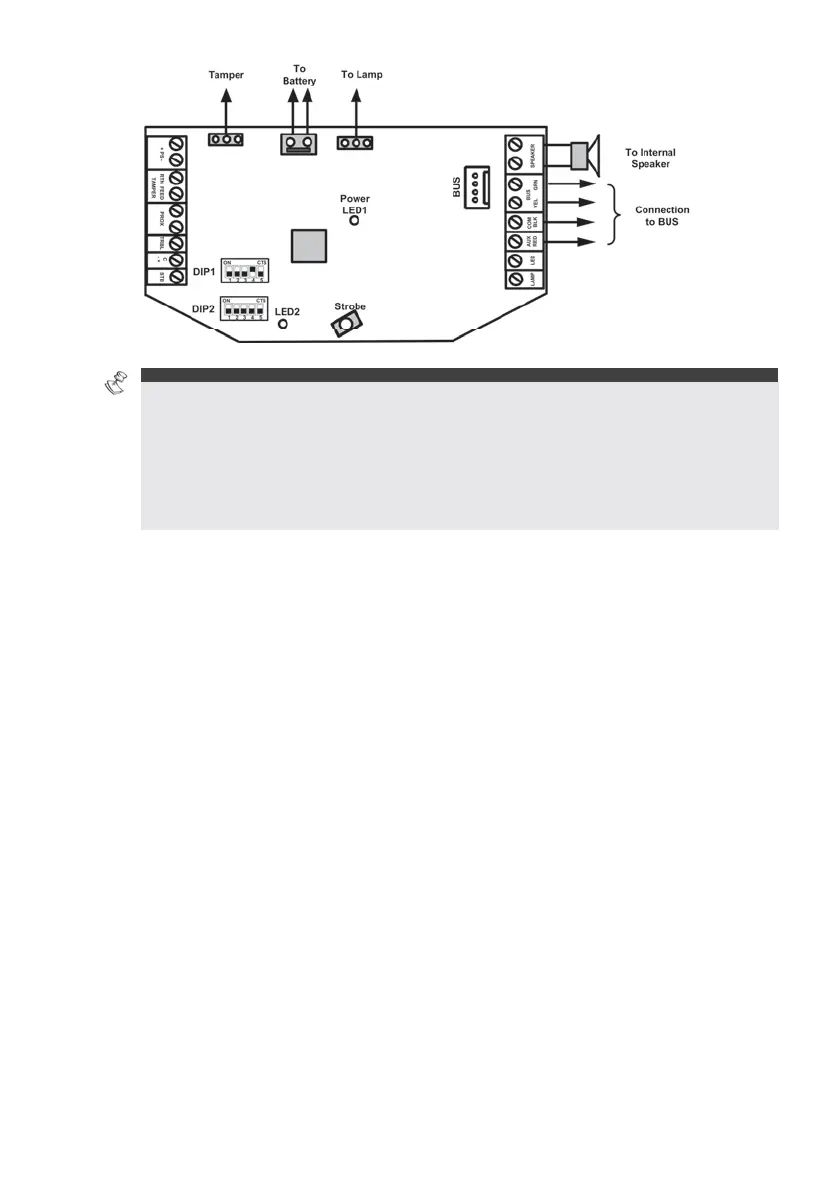

Figure 2: BUS Wiring
Notes For BOTH Stand Alone and BUS modes:
1. The sounder will not operate when a battery is not connected or no power supply is connected to the PS
terminals.
2. After powering-up the sounder, it will not operate for a period of 20 seconds (sound and strobe) in order to
avoid accidental activation during installation.
3. After powering-up the sounder, the sounder inputs (C+/C-) will cause activation only if they have been in
normal (silent) state at least for 10 seconds.
4. The PROX and TRBL outputs are deactivated in BUS mode configuration.
5. To protect the battery against deep discharge, the battery will be automatically disconnected below 10.5
VDC.
Technical Specifications
Input DC Power Regulated 13.5-14.2V, 200 mA maximum
Standby Current Consumption 54 mA + charge current
Battery charging current 140 mA maximum
Operating Current Consumption
(Sounder + Strobe)
1.6A
Speaker Sound level 106 dB @ 3 meters
Tone frequency 1500-1800 Hz
Strobe light Surface Light Technology SMT LED with 6000 mcd
Strobe lens Polycarbonate, available in amber, red or blue
Strobe flash rate 60 times per minute (maximum)
Back-up battery (rechargeable) SLA (Sealed Lead Acid) rechargeable 12V, 2.2 A/H, UL approved,
Max Size (L x W x H): 17.8 cm x 6.4 cm x 3.5 cm
Low battery protection Automatic disconnection below 10.5 VDC
Reverse Battery Protection Battery Charger Disconnected for Battery Voltages below 9V
Ingress Protection IP 43, IK 6
Operating Temperature -25°C to 70°C (-13°F to 158°F)
Humidity 95% maximum
Tamper contact 0.1 A, 24 V, N.C. termination or internal EOL resistor
Proximity Anti foam contact 0.1 A, 24 V, N.C. termination
Housing material Polycarbonate with UV protection
Dimension (L x W x H) 30.5 cm X 21.8 cm X 11.6 cm
Weight (without battery) 1.4 kg
Compatibility All control panels
ProSYS compatibility 4-wire BUS, up to 300m from main panel
