37

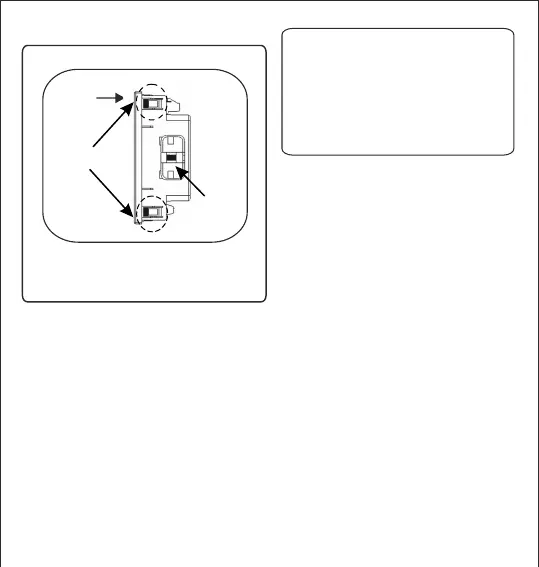

Mounting of multifunction is featured meter
with easy “Clip- in” mounting. push the meter
in panel slot (size 92 x92 mm), it will click
fit into panel with the four integral retention
clips on two sides of meter. If required
Additional support is provided with swivel
screws as shown in figure.
11. Installation
Panel
1 - 3mm for self clicking,
1 - 6mm for swivel screws
Panel Thickness :
The front of the enclosure conforms to IP50.
Additional protection to the panel may be
obtained by the use of an Optional panel
gasket. The terminals at the rear of the
product should be protected from liquids.
The multifunction meter should be mounted
in a reasonably stable ambient temperature
and where the operating temperature is within
specified limit. Vibration should be
kept to a minimum and the product should
not be mounted where it will be subjected
to excessive direct sunlight.
In the interest of safety and functionality this
product must be installed by a qualified engineer,
abiding by any local regulations.
Voltages dangerous to human life are present at
some of the terminal connections of this unit.
Ensure that all supplies are de-energised before
attempting any connection or disconnection.
These products do not have internal fuses
therefore external fuses must be used to ensure
safety under fault conditions.
Caution
1.
2.
Easy Clip
-
in
mounting
Swivel screw
