1. Introduction
4

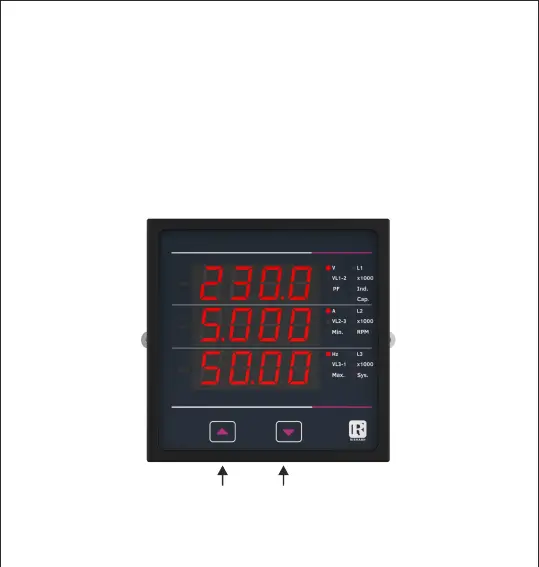

DOWN Key
UP Key
The Multifunction Meter is a panel mounted 96 x 96mm DIN Quadratic Digital Panel
Meter, which measures important electrical parameters in 3P4W, 3P3W, 1P3W (Split
Phase) and 1P2W networks and replaces the multiple analog panel meters. It measures
electrical parameters like AC Voltage, Current, Frequency, Power Factor, The instruments
comes with 3 Line 4 Digits ultra bright LED display with clearly visible annunciated units
with bright LED Indications. The Multifunction Meter can be configured & programmed on
site for the following: PT Primary, PT Secondary, CT Primary, CT Secondary & System
Type (P4W/3P3W/1P3W/1P2W).
The front panel has two Keys for user interface to scroll through the available parameters.
The function of the up and down keys are explained in the following page.
