RPR-4000
Operations manual
REV 8-21 50
B. Power Supply Output Connector
There is an auxiliary power connector located on the rear panel of the RPR-4000 to
power peripherals such as a preamplifier. For safety reasons, the connector on the
instrument is female.
All Ritec peripherals are powered via a seven pin connector. When ordering RITEC
peripherals, please indicate that you will be powering them from an RPR-4000. This will
insure the Ritec power peripheral will be set up to work properly with your instrument
and be supplied with the proper peripheral power cord. In the case of the RPR-4000 the
proper peripheral power cord will be a three pin male to seven pin female cord.

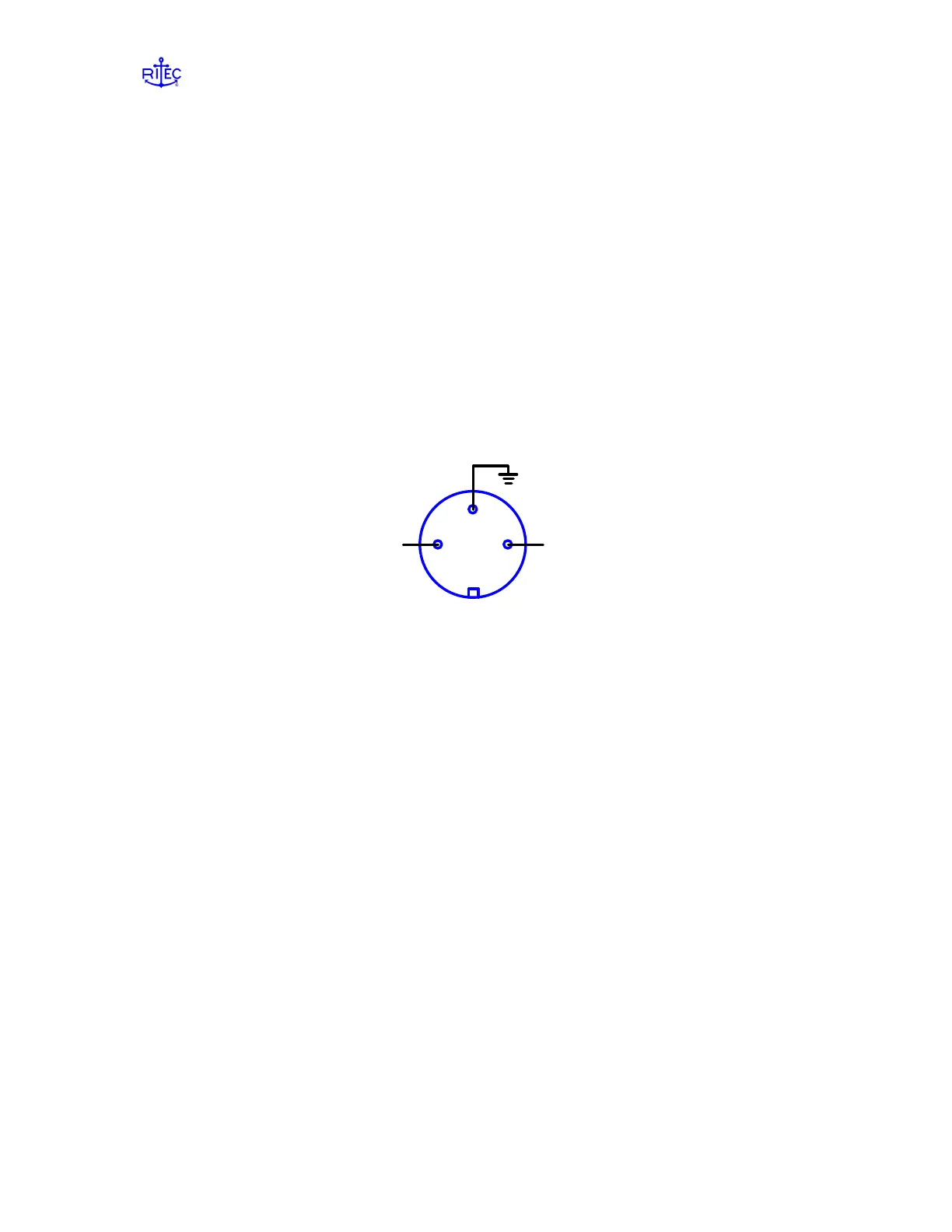

The female connector on the rear panel is shown below. Outputs available are -12V @
100 mA on pin one, +12V @ 100 mA on pin three. Pin two is tied to earth ground.
1
2
3
-12V +12V
