RITEC RPR-4000 - Pulser Settings (2;2)

RPR-4000
Operations manual
REV 8-21 28

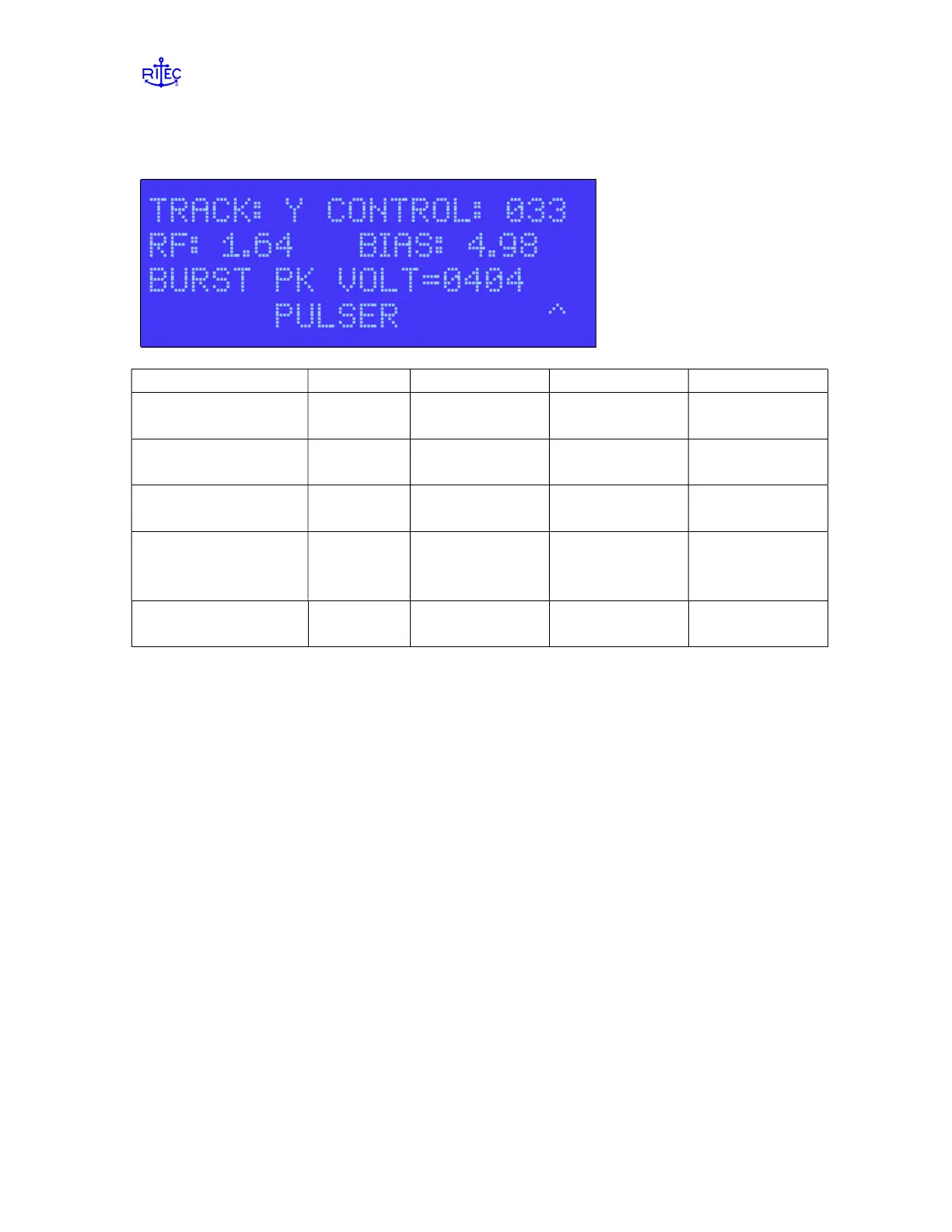

Page 2 – Pulser settings (2/2)
Label Parameter Data range Units Data type
TRACK Control
Tracking
Y, N Alpha
CONTROL Level
control
Control 0 to 100 Numeric
RF RF control
voltage
0 to 4.99 V Numeric
BIAS Bias
control
voltage
0 to 4.99 V Numeric
BURST PK VOLT Peak burst
voltage
Tracking TRACK
Allows the operator to manually select the RF Gain and Bias Level settings or allow the
CONTROL function to automatically calculate the RF and Bias.
If TRACK is set to Y(es) then the RF Gain and BIAS Level will be calculated by the
control module. Anytime the CONTROL setting is changed the RF and BIAS will be
recalculated and displayed. With TRACK set to Y(es) the operator cannot access the RF
and BIAS data fields on the display.
If TRACK is set to N (o) the RF Gain and BIAS Level may be entered by the operator
but must remain within acceptable limits. Any setting not within the system’s acceptable
limits will be rejected and the following message will appear on the display: “ILLEGAL
COMMAND”.
With TRACK set to N (o) the operator can access the RF and BIAS data fields on the
display but cannot access the CONTROL data field.
