RPR-4000
Operations manual
REV 8-21 16
RF pulse monitor
This is a monitor signal output. The voltage present at this point is 40 dB less (a factor of
100) than the voltage present on the High power RF pulse output. Connect this to an
oscilloscope with a 50 Ω terminated input.
Diplexer output to receiver
This is the output of the internal signal diplexer. Connect this to one of the receiver
inputs to do pulse-echo mode operation.
Keypad and display
Local interface for controlling the system. For information on using the keypad interface
please see “Section 2: System Operation.”

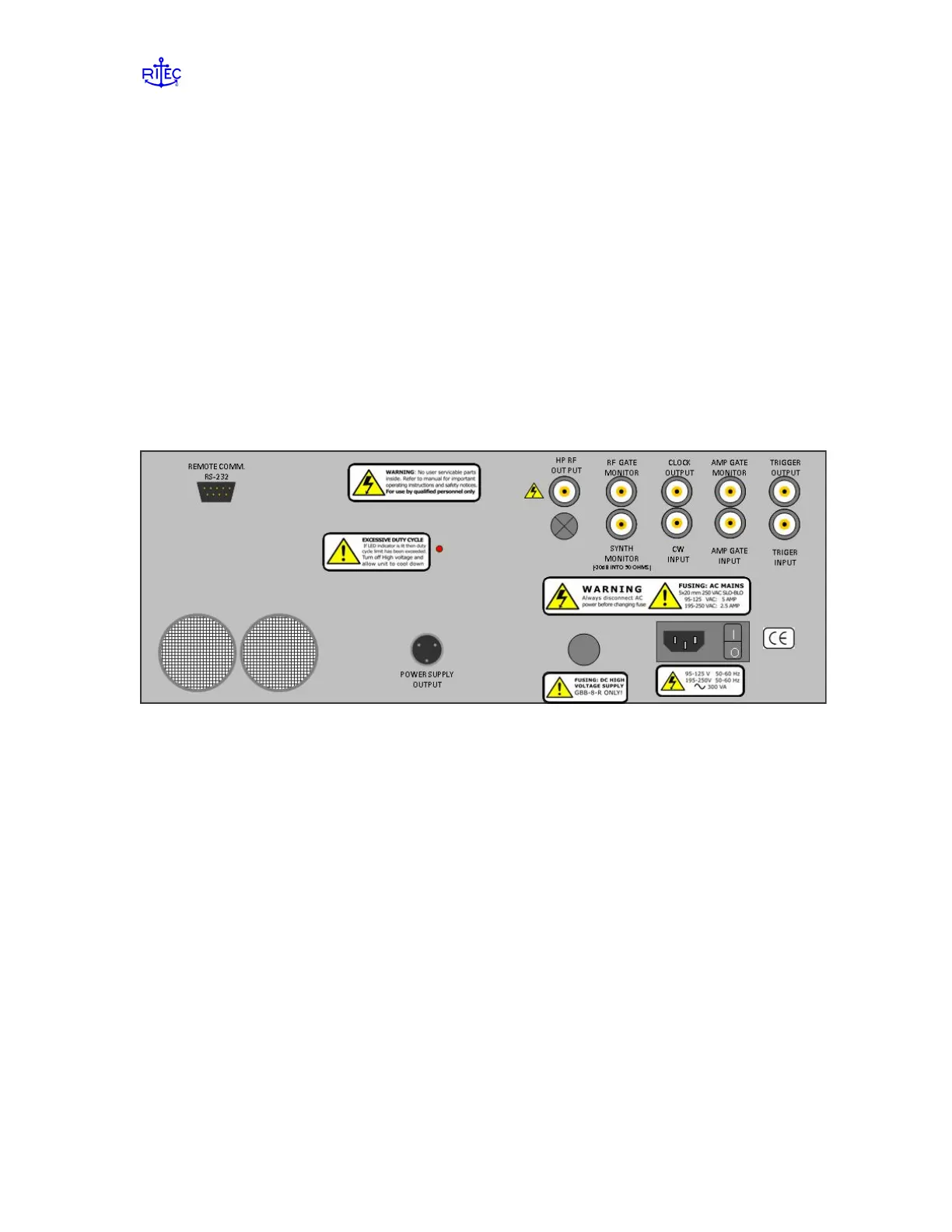

Rear panel overview
AC entry module
This module includes a rocker switch for the main power and a built in fuse holder for the
AC mains.
Rear panel BNC connectors
Additional utility and monitoring signals, as well as a high power pulse output, are
brought out to the rear panel.
HP RF Output
For models that have an internal signal diplexer, this signal bypasses the internal signal
diplexer.
Clock output
A buffered system clock output has been provided for synchronizing high speed
digitizers, etc.
