10

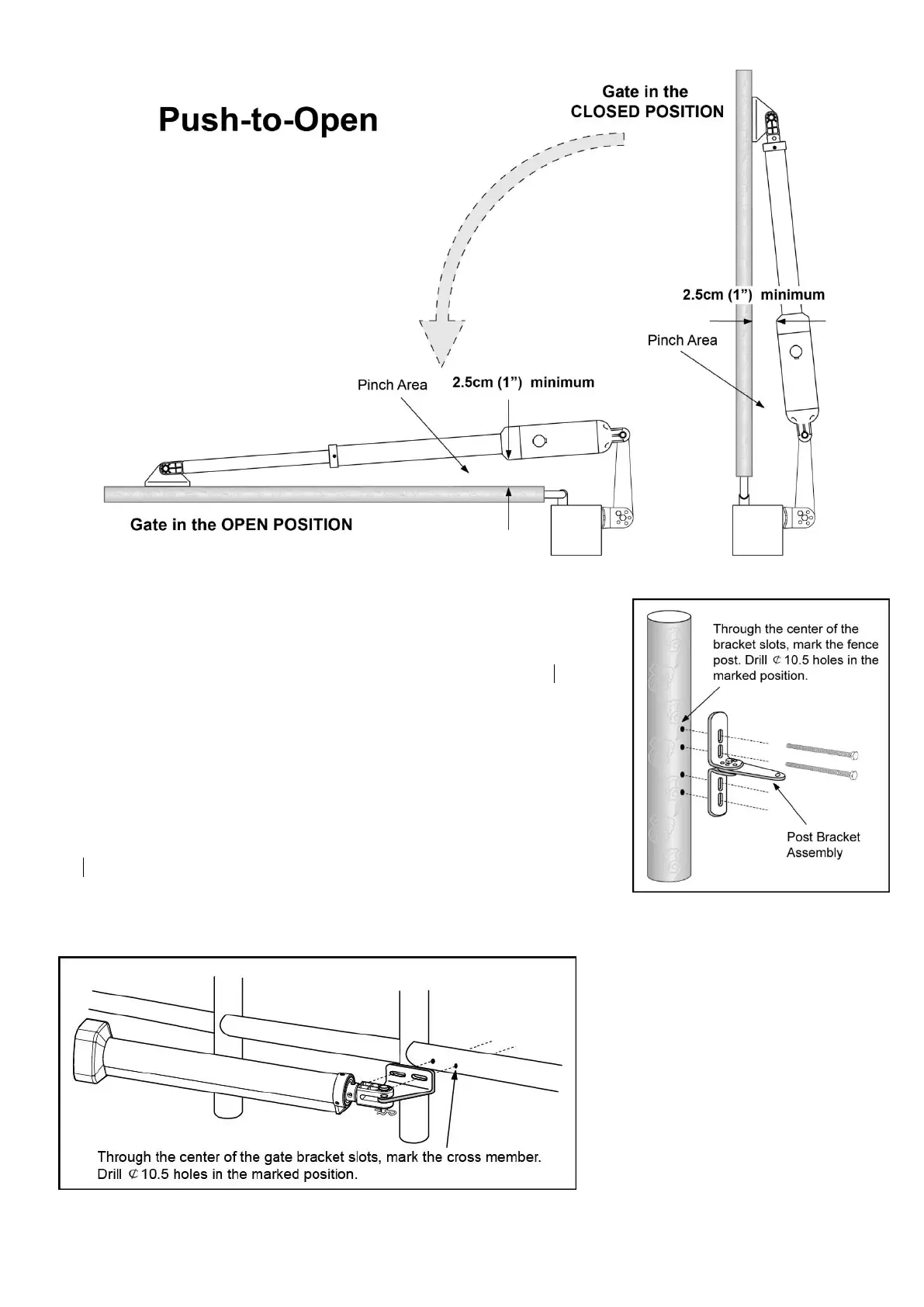

6. Sign the bolt-hole point on the gate bracket and gate. Do this by placing a
punch or a sign in the middle of each bolt slot on the post bracket assemblies
and the gate bracket. It allows slight adjustments to the post bracket. Then
remove the post bracket and gate bracket by taking off the C-clamps.
7. Drill 10.5 mm diameter holes through the post and the gate at the marked
locations.
8. Attach the post bracket assemblies to the gate posts by inserting M10 x 200
bolts through each post bracket assembly and the drilled holes in the gate post.
Fasten each bolt with one ￠10 washer, one ￠10 lock washer, and one ￠10
nut.
9. Attach the gate brackets to each gate by inserting two M10 x 75 bolts through the gate brackets and the drilled
holes in the gates. Fasten each bolt with one ￠10 lock washer, and one ￠10 nut.
