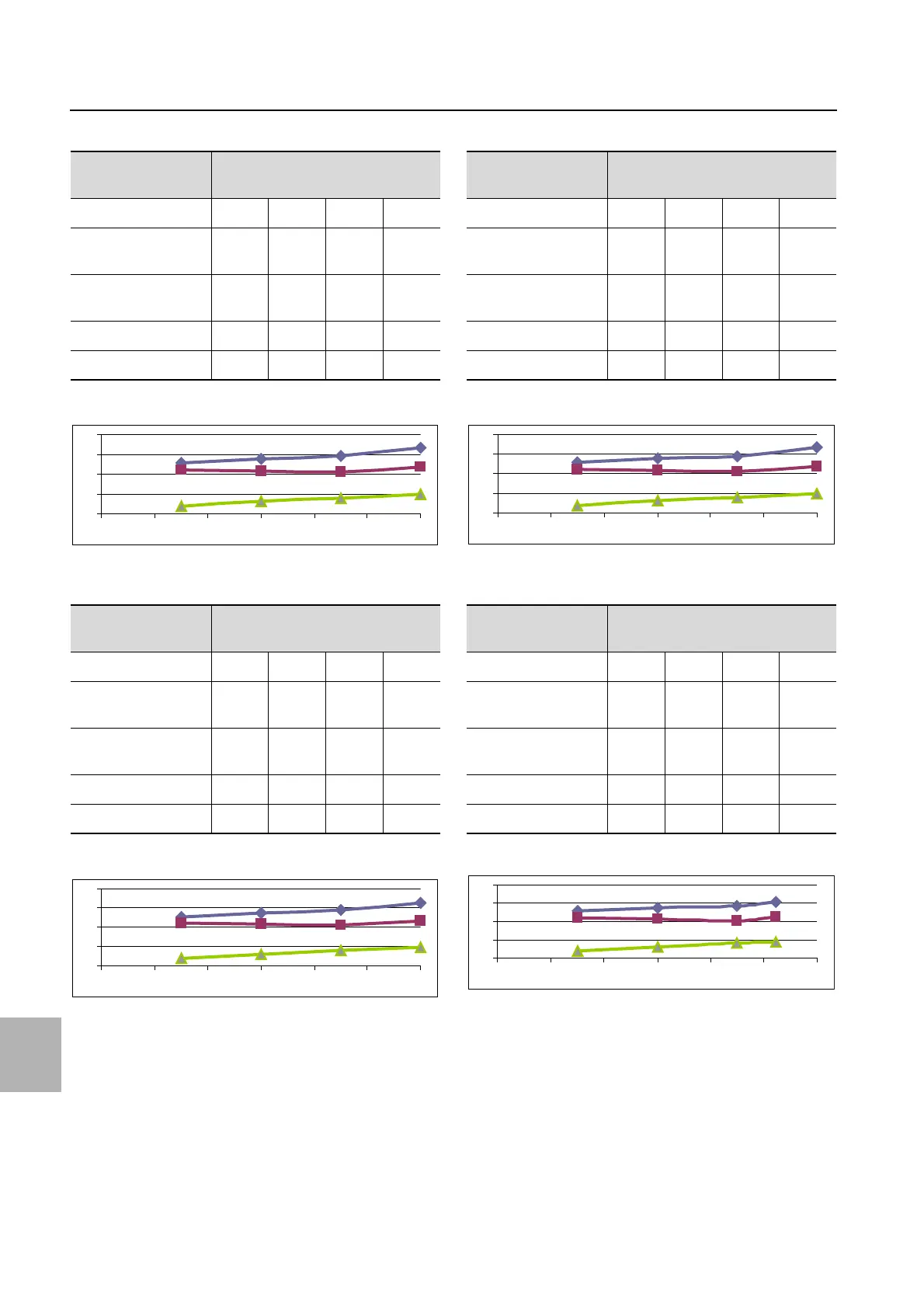

62 Rittal Liquid Cooling Package
Exterior temperature 10°C
Fig. 65: Diagrammatic view
Exterior temperature 20°C
Fig. 66: Diagrammatic view
Exterior temperature 30°C
Fig. 67: Diagrammatic view
Exterior temperature 42°C
Fig. 68: Diagrammatic view
Exterior tempera-
ture [°C]
10
Cooling output [kW] 3 6 9 12
Inlet temperature
[°C]
25.62 27.53 29.1 33.18
Outlet temperature
[°C]
22.15 21.56 21.26 23.66
dT [°C] 3.47 5.97 7.84 9.52
Output [kW] 0.825 1.608 2.639 4.02
Tab. 35: Tabular view
Exterior tempera-
ture [°C]
20
Cooling output [kW] 3 6 9 12
Inlet temperature
[°C]
25.43 27.45 29.07 32.83
Outlet temperature
[°C]
21.86 21.5 21.19 23.2
dT [°C] 3.57 5.95 7.88 9.63
Output [kW] 0.777 1.627 2.717 4.142
Tab. 36: Tabular view
0
10
20
30
40
024681012
0
10
20
30
40
024681012
Exterior tempera-
ture [°C]
30
Cooling output [kW] 3 6 9 12
Inlet temperature
[°C]
25.56 27.59 28.91 33.28
Outlet temperature
[°C]
21.89 21.56 21.16 23.6
dT [°C] 3.67 6.03 7.75 9.68
Output [kW] 0.859 1.772 2.861 4.193
Tab. 37: Tabular view
Exterior tempera-
ture [°C]
42
Cooling output [kW] 3 6 9 10.46
Inlet temperature
[°C]
25.51 27.32 28.67 30.75
Outlet temperature
[°C]
21.73 21.22 20.46 22.22
dT [°C] 3.78 6.1 8.21 8.53
Output [kW] 1.084 2.258 4.182 4.521
Tab. 38: Tabular view
0
10
20
30
40
024681012
0
10
20
30
40
024681012
