STEP 3

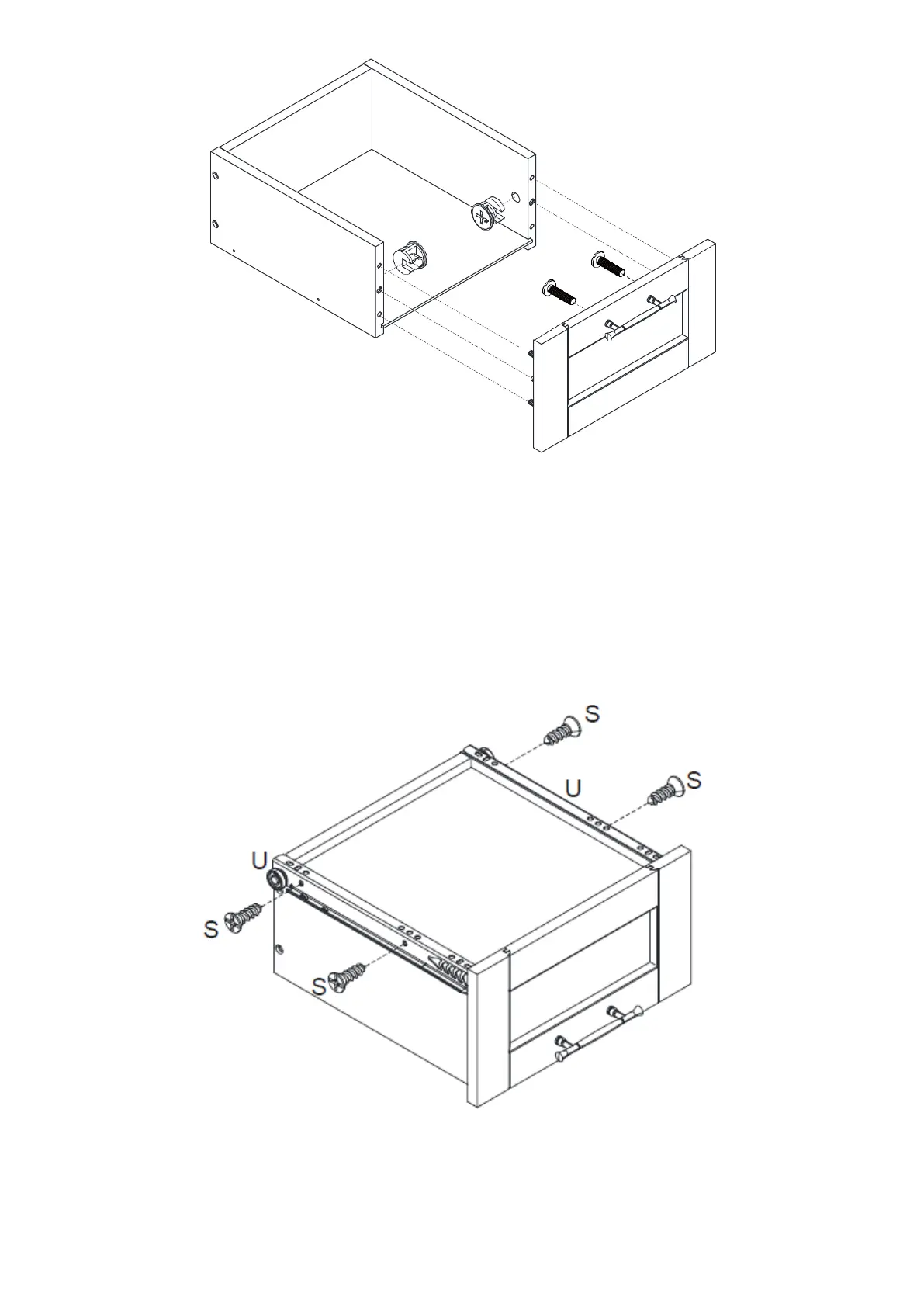

1. Attach drawer front board (8) to drawer left side panel (9), drawer right side panel (10) and drawer bottom board
(12) by inserting cam bolts (B) and wood dowels (A) into holes on drawer left side panel (9) and drawer right side
panel (10) and inserting edge of drawer bottom board (12) into groove on drawer front board (8).
2. Insert 2 cam locks (C) into cam lock holes on drawer left side panel (9) and drawer right side panel (10) and
rotate clockwise to secure cam bolts (B).
3. Attach 1 handle (K) to drawer front board (8) by inserting 2 machine screw (J) through holes on drawer front
board (8) and tighten to handle (K).
STEP 4
STEP 4
1. Turn assembled drawer upside down.
2. Attach drawer slides (attach to drawer-U) to drawer right side panel (10) by inserting 2 wood screws (S) through
holes on drawer slides (attach to drawer-U) and tighten into drawer right side panel (10).
3. Attach drawer slides (attach to drawer-U) to drawer left side panel (9) by inserting 2 wood screws (S) through
holes on drawer slides (attach to drawer-U) and tighten into drawer left side panel (9).
