3. SETTING FOR COMMUNICATION
IMCB03-E4
9

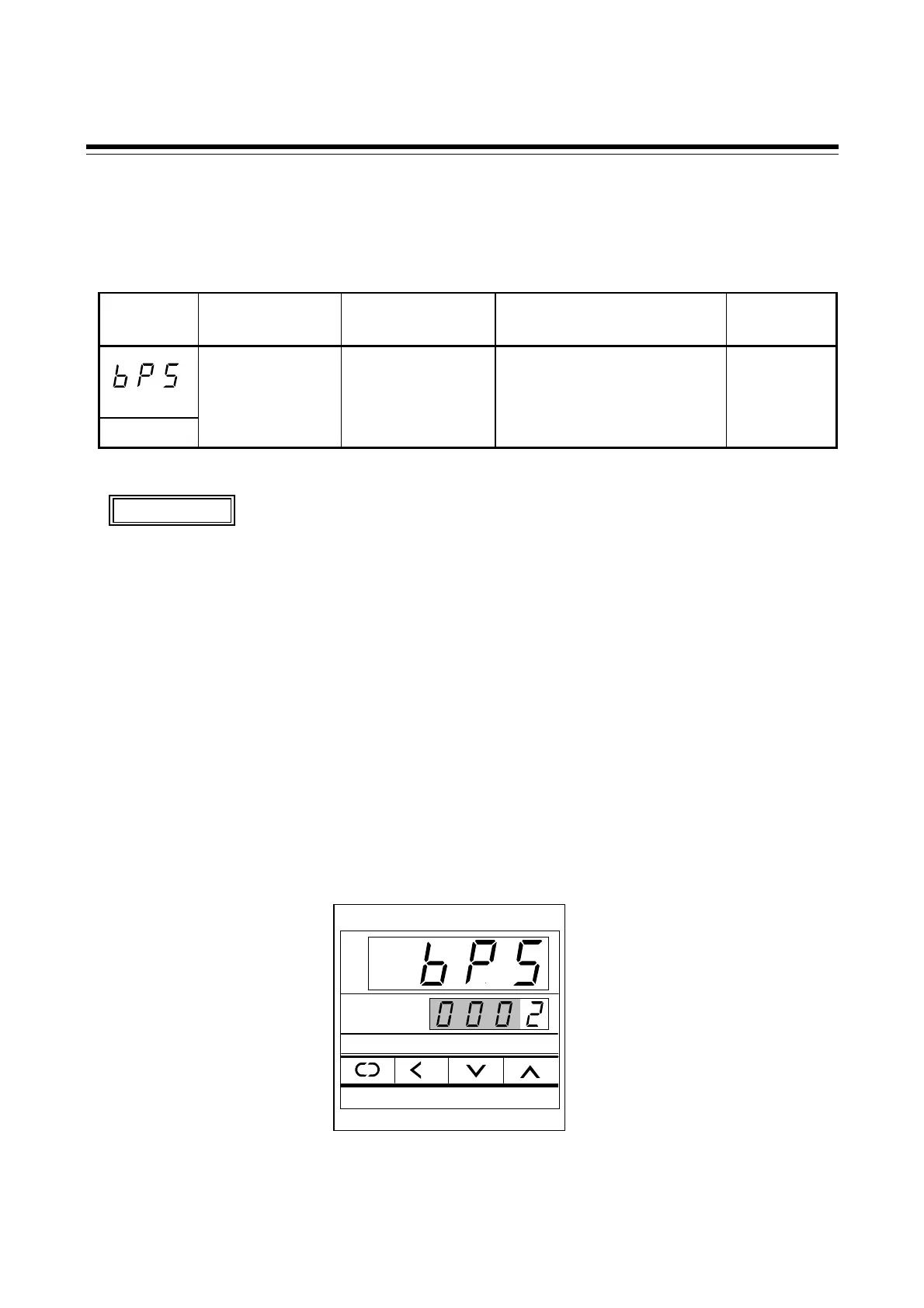

3.4 Communication speed setting
Set a communication speed of 2400 bps, 4800 bps, 9600 bps or 19200 bps by using numerals from 0
to 3. Press the UP or DOWN key to change the numeral.
Symbol Name Setting range Description
Factory set
value
Communication
speed
0 : 2400 bps
1 : 4800 bps
2 : 9600 bps
Selects the communication
speed.
2
bPS
3 : 19200 bps
Set the same communication speed to both the controller and connecting host computer.
When the communication parameter was changed, always turn on the power again.
Otherwise, no communication is performed by using the changed value.
If key operation is not performed for more than 1 minute without pressing the SET key
after the communication speed is set, the controller is automatically changed to PV/SV
display mode. In this case, the set communication speed returns to the value before the
setting is changed.
Setting procedure
Example: When setting communication speed to "1: 4800 bps."
1. Change the controller to communication setting mode, and then display the communication
speed (See P. 5, 6).
CAUTIONS
Communication speed
SET
R/S
SV
PV
ALM2ALM1AT OUT2OUT1
To Next Page
