3. SETTING FOR COMMUNICATION
IMCB03-E4
12
 Setting procedure
Example: When setting data bit configuration to "1: 8 data bits, no parity bit and 2 stop bits."
1. Change the controller to communication setting mode, and then display the data bit configuration
(See P. 5, 6).
2. Press the UP key to enter "1" in the lowest digit. As a result, data bit configuration is set to "8
data bits, no parity bit and 2 stop bits."
3. Press the SET key to change to the next communication parameter. As a result, the set data bit
configuration is registered.

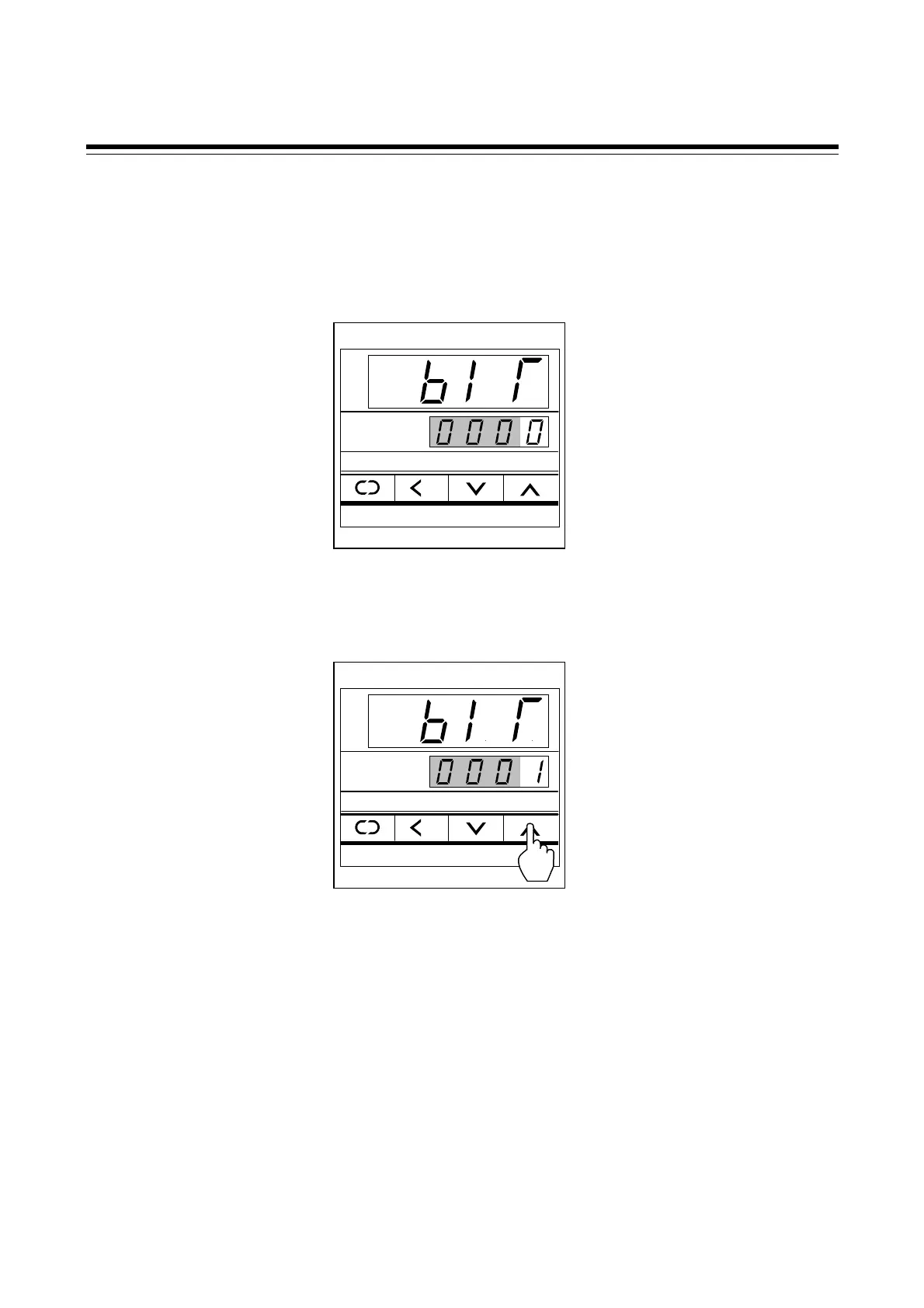

Data bit configuration
SET
R/S
SV
PV
ALM2ALM1AT OUT2OUT1
SET
R/S
SV
PV
ALM2ALM1AT OUT2OUT1
