2. CONNECTING

IMSRM04-E8







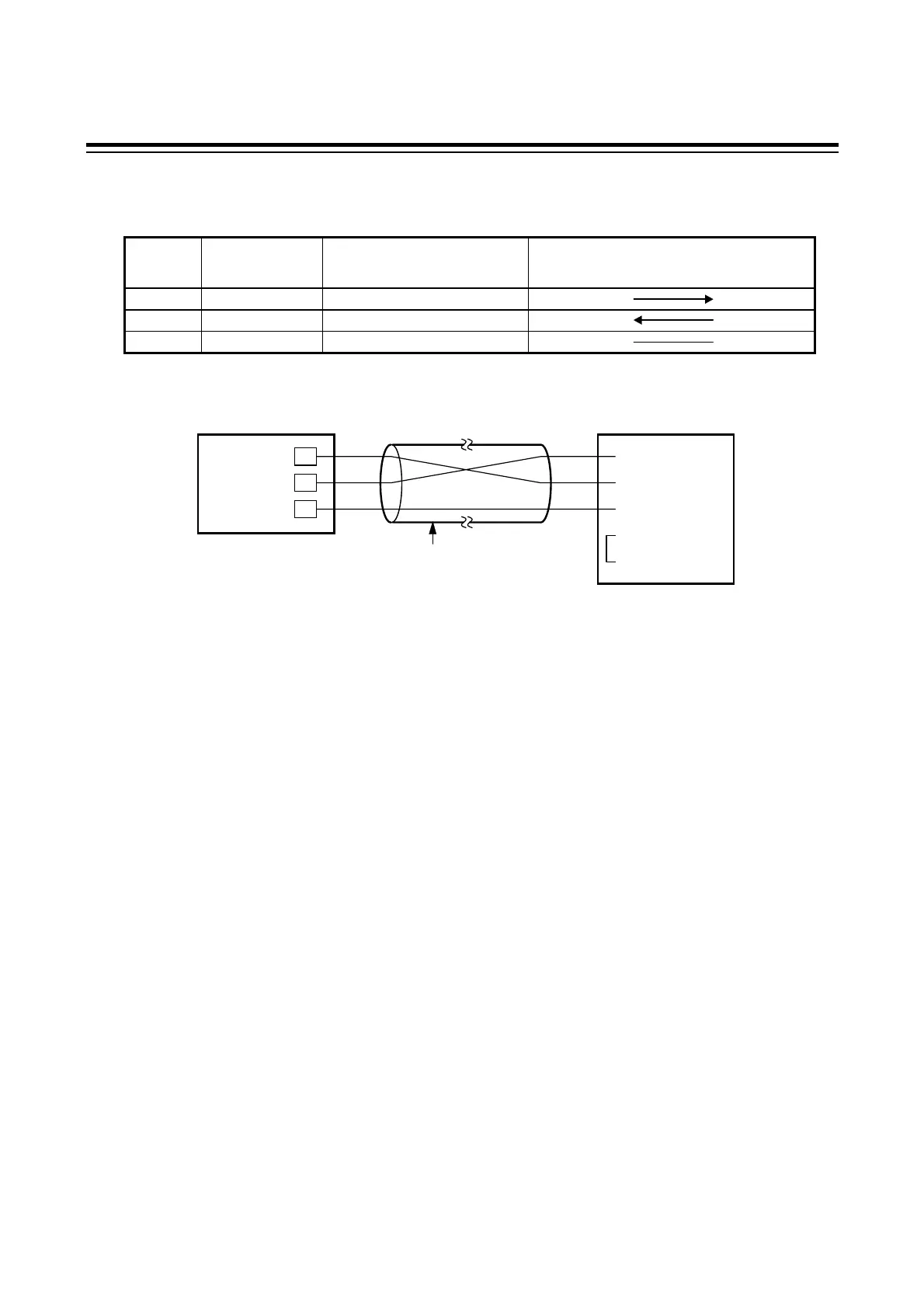

RS-232C

Pin number and signal name

Pin No. Mark Name

Signal Direction

Operation panel Host computer

3 SD (TXD) Send data

2 RD (RXD) Receive data

5 SG (GND) Ground for signal

Contents of communication cable wiring

*Short RS and CS

within connector

Host computer

Operation panel

RS-232C

Shield wire

(Maximum connections: 1 unit)

SD (TXD)

RD (RXD)

SG (GND)

SD (TXD)

RD (RXD)

SG (GND)

RS (RTS)

CS (CTS)
