20
IMSRM04-E8
3. SETTING FOR COMMUNICATION
In order to make communication between the SR Mini HG SYSTEM and the host computer, it is
necessary to set the communication speed, data configuration and address.

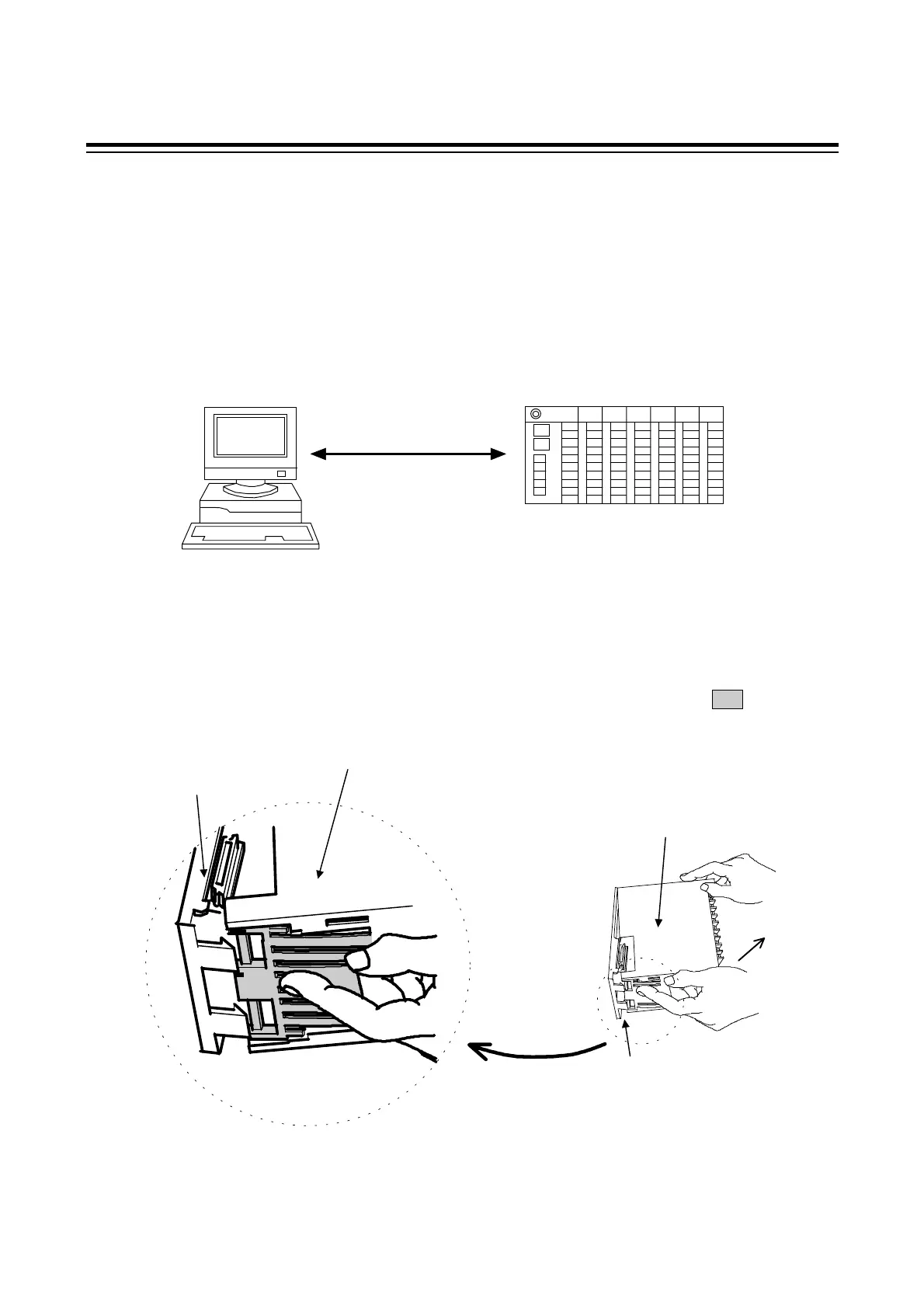

3.1 When Connecting Control Unit with Host Computer
Directly
Host communication setting (data configuration, communication speed, unit address, etc.) are to be set
by the PCP module of the control unit.
Set the same communication setting to both the control unit and connecting host computer.
Host communication setting
-Data configuration
-Communication speed
-Unit address, etc.
Host computer
Control unit
îî
Setting the data configuration and communication speed
1. To separate the mainframe of the module from the mother block, pull the mainframe upward
with the upper connection of the mainframe set to the fulcrum while pressing the section
of the mainframe (removal lever ) with your index finger.
Mother block
Module mainframe
Upper
section
Mother block
Module mainframe
Lower
section
To Next Page
