Roadmaster Sterling - Mounting the Quick Disconnect Base; Connecting to Motorhome Receiver; Positioning Tow Bar Arms Vertically; Securing Tow Bar Arms Horizontally

7
STEP 3
Follow Installation Instructions (in separate envelope) to
mount STERLING Quick Disconnect Base
STEP 1
STEP 2
STEP 4

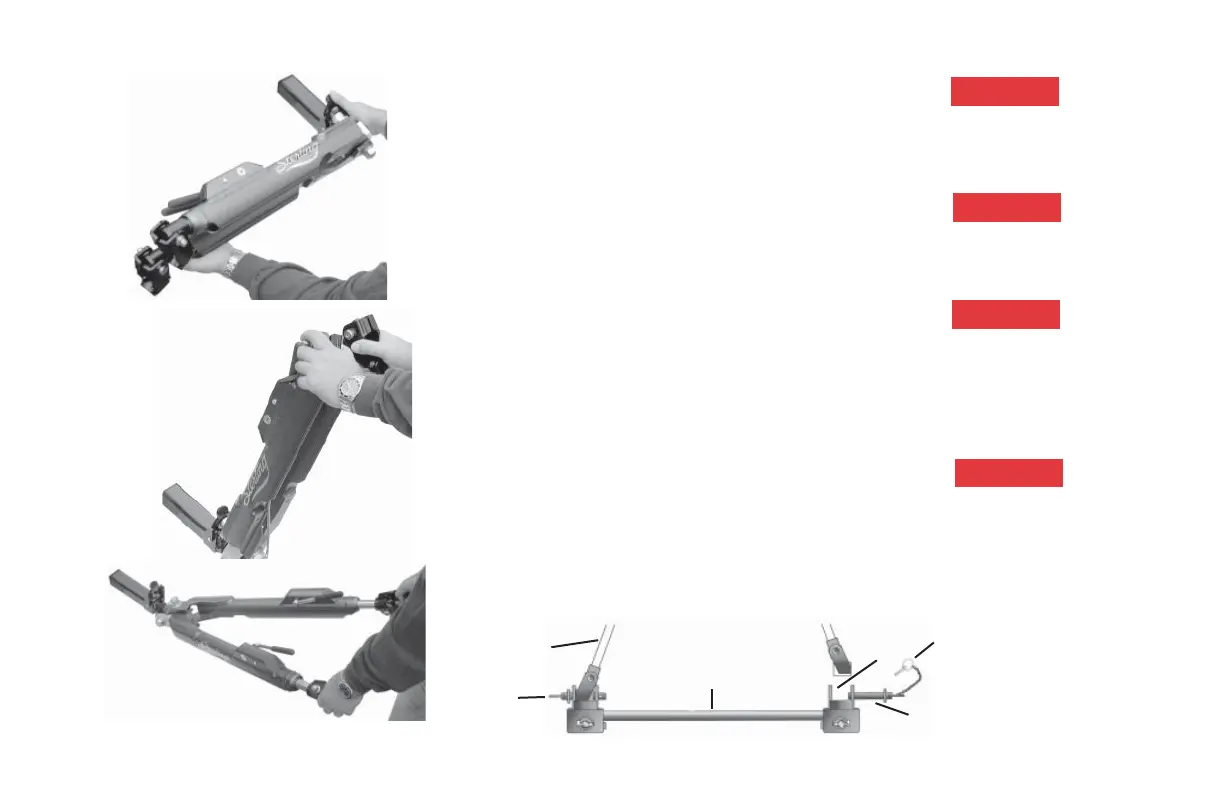

With the STERLING tow bar in the folded position (Fig.1), insert it into
the motorhome’s receiver and secure with Hitch Pin & Clip.
Firmly hold both tow bar arms and rotate them so that they are
vertical as shown in Figure 2. WARNING: Never let go of the arms when
they are in the vertical position. The arms can fall and cause severe
injury if any part of your body is in the way.
Push the Release Latch forward to bring both arms down
to a horizontal position (Fig. 3). Swing both arms away from you
aligning the outermost arm with the tabs on the Quick-Disconnect
Base. Using the included Base pin, attach the arm and secure with
linch pin or optional padlock.
Fig. 1
Fig. 2
Tow Bar Arm
Base Pin
Tabs
Base Pin
Linch Pin
QUICK-DISCONNECT
BASE
Fig. 3
