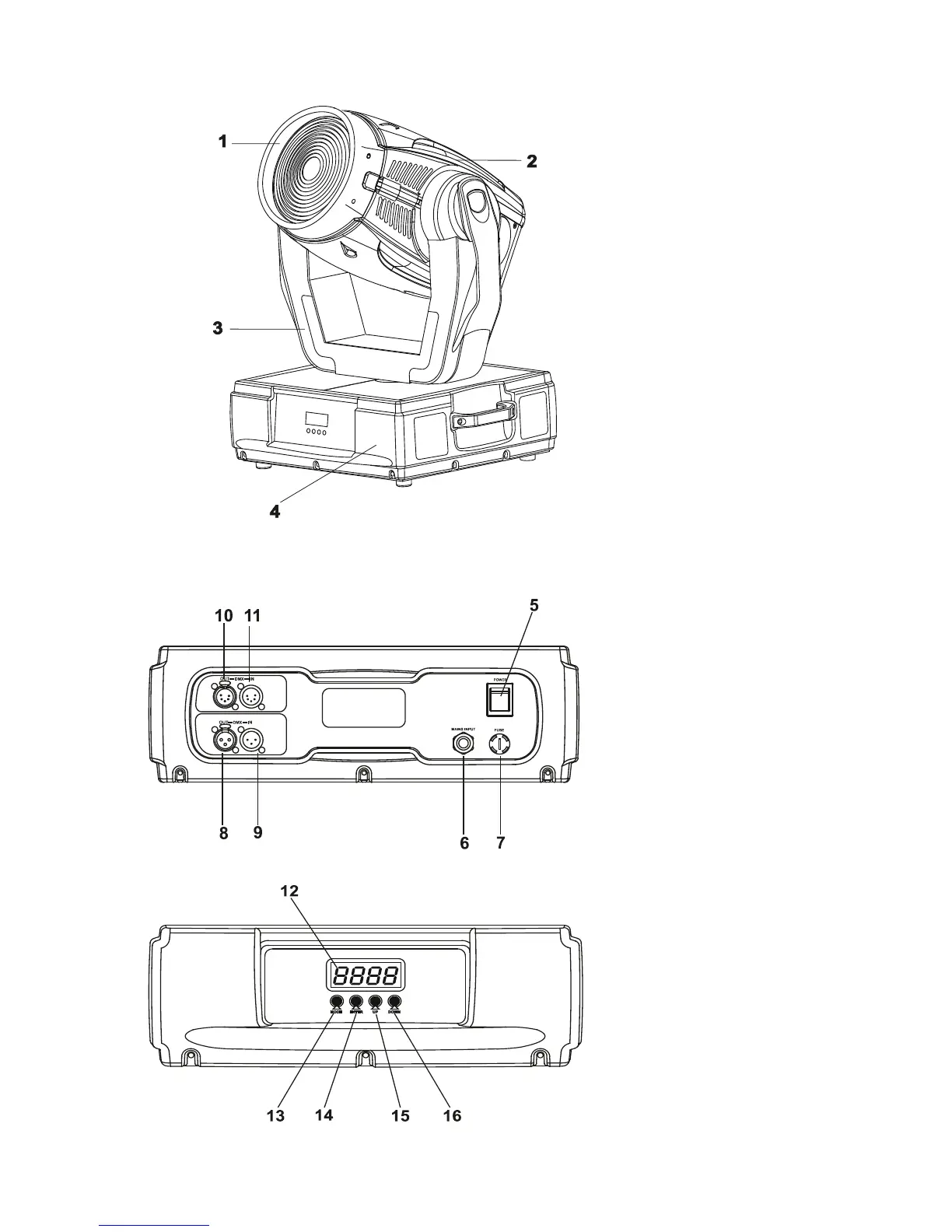

3. Description of the device
1 - Front lens
2 - Moving head
3 - Yoke
4 - Base
Rear panel:
5 - Power switch
6 - Power cord
7 - Fuse holder
8 - 3-pin DMX output
9 - 3-pin DMX input
10 - 5-pin DMX output
11 - 5-pin DMX input
Front panel:
12 - Mode-button
13 - Enter-button
14 - Up-button
15 - Down-button
16 - Display
