3.4 Replacing rotating gobos
DANGER!
Replace gobos with the device switched o only.
Unplug from mains before!
1. Disconnect the xture from mains and allow it to cool.
2. Remove the bottom plastic cover of the xture head by loosening the 4 quarter-turn fasteners on the cover.

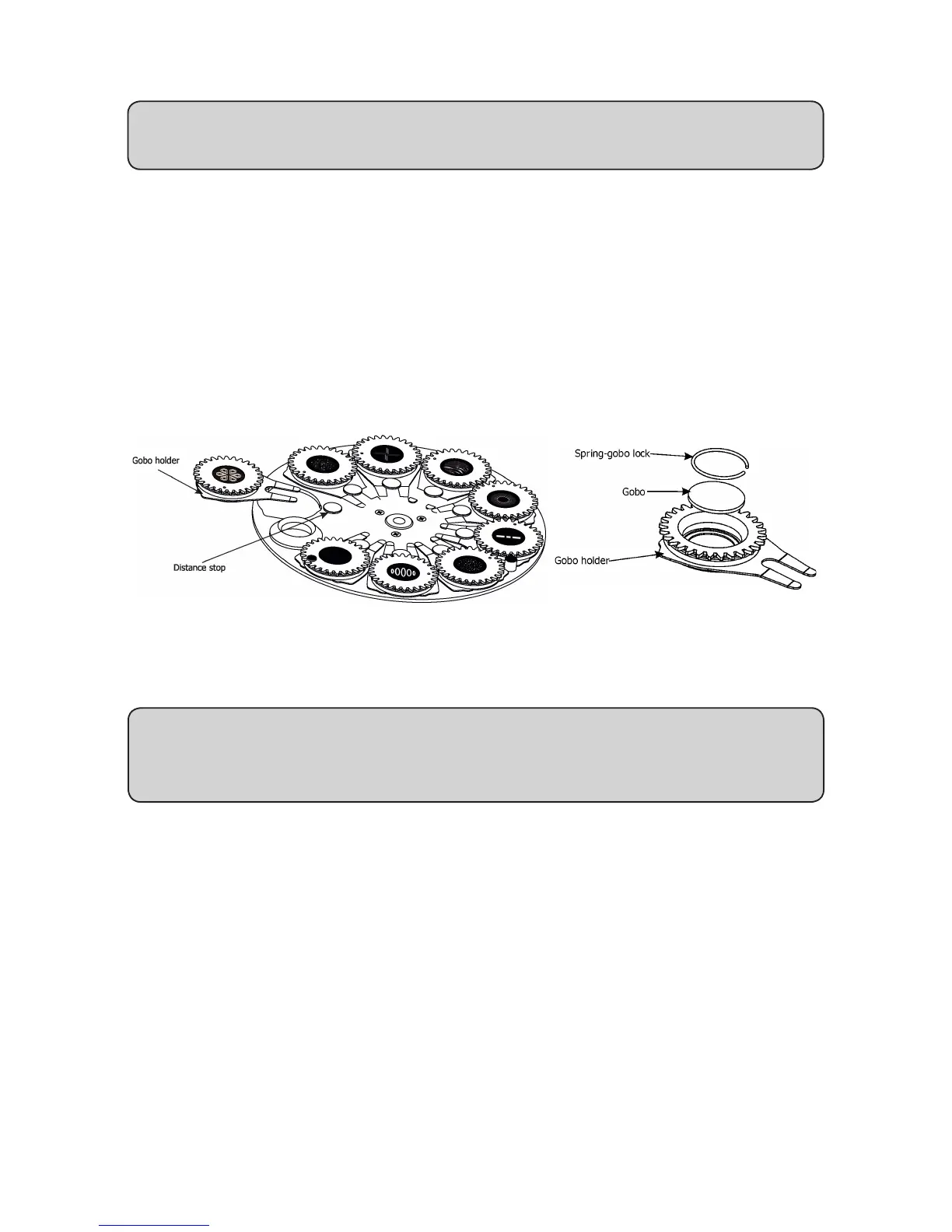

3. Gently pull the gobo holder up from the rotation gobo wheel
.
4. Carefully remove the spring lock and the gobo from the gobo holder by pushing to the gobo from side
without toothed wheel
. Do not touch the glass gobo bare ngers - use a suitable gloves.
5. Insert the new gobo (glazy side towards lamp). Insert the spring lock to secure the gobo in the gobo holder.
6. Insert the gobo holder back into the rotation gobo wheel
.
5. Place the bottom cover back on the xture head before applying power.
Warning!
Use only gobos intended for the Robin MegaPointe.
Do not try to use gobos from the Robin Pointe.
(The Robin MegaPointe generates heat the gobos of the Robin Pointe are not designed for).
