ELECTRIC OPTION
1. For non electric cabinets, proceed to Final Assembly on page 12.

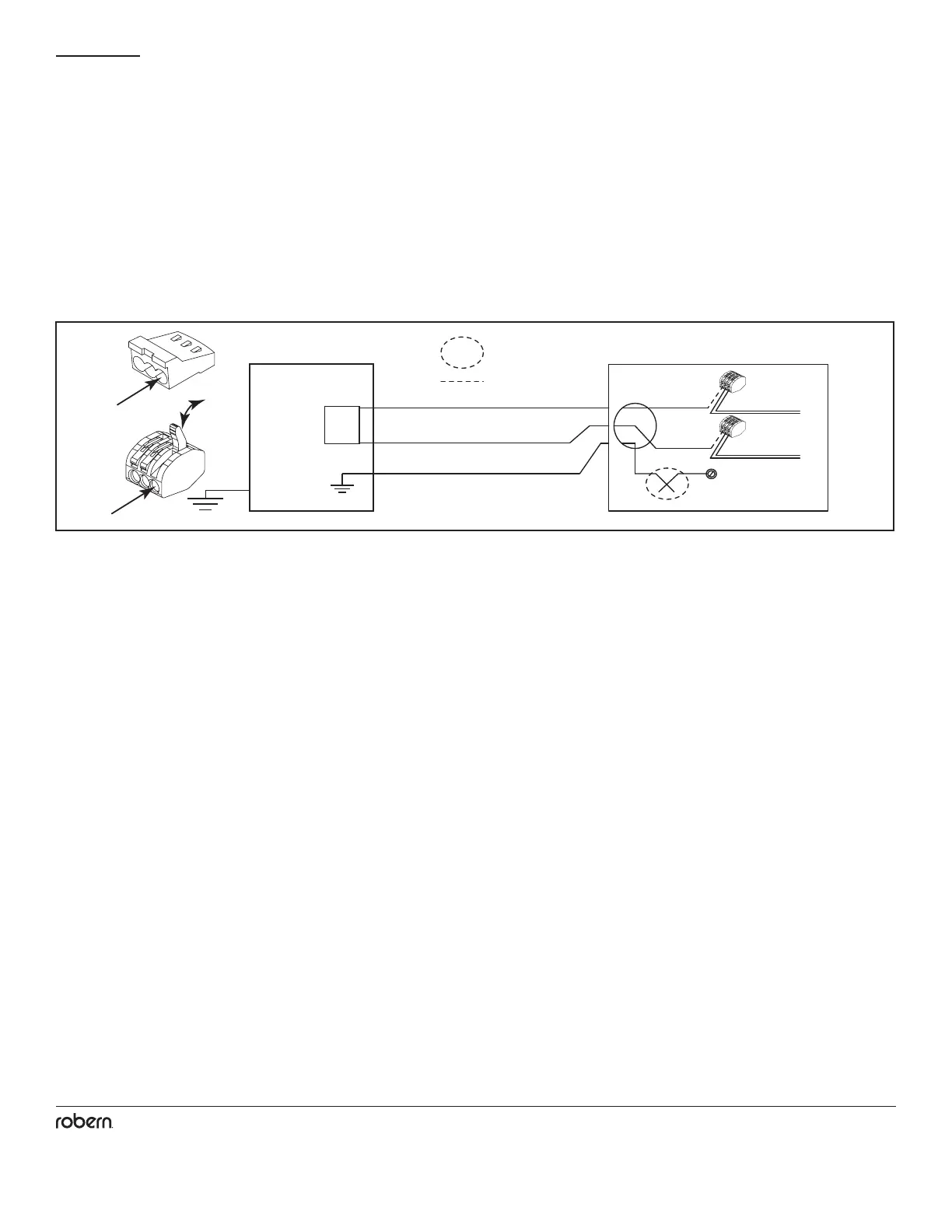

2. Make eld connections as per wiring diagram for the electrical option being installed.
7
Part no. CB-209-1350 09/13/21
PL Portray Cabinet
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
ELECTRIC OPTION
WHITE
BLANC
BLANCO
GROUND
MISE À LA TERRE
BAJADA A TIERRA
BLACK
NOIR
NEGRO
YELLOW
AMARILLO
JAUNE
WHITE
BLANC
BLANCO
GROUND
MISE À LA TERRE
BAJADA A TIERRA
BLACK
NOIR
NEGRO
FIELD CONNECTION
CONNEXION DE CHAMP
CONNEXIÓN DE CAMPO
CIRCUIT BREAKER
DISJONCTEUR
CORTACICUITOS
120VAC
20A GFI
RED
ROUGE
ROJO
M SERIES E4 CABINET WITH OPTIONAL WALL SWITCH
M SÉRIE E4 ARMOIRE AVEC OPTION INTERRUPTEUR MURAL
M SERIE E4 GABINETE CON INTERRUPTOR DE PARED OPCIONAL
LINE/BLACK
LIGNE/NOIR
LINEA/NEGRO
NEUTRAL/WHITE
NEUTRE/BLANC
NEUTRAL/BLANCO
CIRCUIT BREAKER
DISJONCTEUR
CORTACICUITOS
WHITE
BLANC
BLANCO
GROUND
MISE À LA TERRE
BAJADA A TIERRA
BLACK
NOIR
NEGRO
WHITE
BLANC
BLANCO
GROUND
MISE À LA TERRE
BAJADA A TIERRA
BLACK
NOIR
NEGRO
FIELD CONNECTION
CONNEXION DE CHAMP
CONNEXIÓN DE CAMPO
120VAC
20A GFI
M SERIES E4 CABINET
M SÉRIE E4 ARMOIRE
GABINETE M SERIES E4
LINE/BLACK
LIGNE/NOIR
LINEA/NEGRO
NEUTRAL/WHITE
NEUTRE/BLANC
NEUTRAL/BLANCO
CIRCUIT BREAKER
DISJONCTEUR
CORTACICUITOS
WHITE
BLANC
BLANCO
GROUND
MISE À LA TERRE
BAJADA A TIERRA
BLACK
NOIR
NEGRO
WHITE
BLANC
BLANCO
GROUND
MISE À LA TERRE
BAJADA A TIERRA
BLACK
NOIR
NEGRO
FIELD CONNECTION
CONNEXION DE CHAMP
CONNEXIÓN DE CAMPO
120VAC
20A GFI
M SERIES E2 CABINET
M SÉRIE E2 ARMOIRE
GABINETE M SERIES E2
OR
OU
O
LINE/BLACK
LIGNE/NOIR
LINEA/NEGRO
NEUTRAL/WHITE
NEUTRE/BLANC
NEUTRAL/BLANCO
5A
5B
5C
4. For non electric cabinets, proceed to Final Assembly on page 12.
5. 5A-B. Make field connections as per wir-ing diagram for the electrical option being installed.
6. 5C. Optionally, a wall switch may be used for the nightlight. This will eliminate the need for the programming button. However,
the button will still turn the nightlight on and off if the wall switch is in the "on" position. A 3 wire with ground cable will be required if
this is the chosen method of wiring.
2
NOTE: E2 cabinets are non-handed, eld wire harness (within the column) can be rotated to allow wiring install at bottom of
cabinet.
WARNING: An Electrical option cabinet must be wired to a Class A 20 Amp GFCI (Ground Fault Circuit Interrupter) protected
circuit when used in bathrooms and all other locations required by the National Electric Code
