M Series Reserve Recess Cabinet
© 2022 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
RECESS MOUNTING
6
7
8

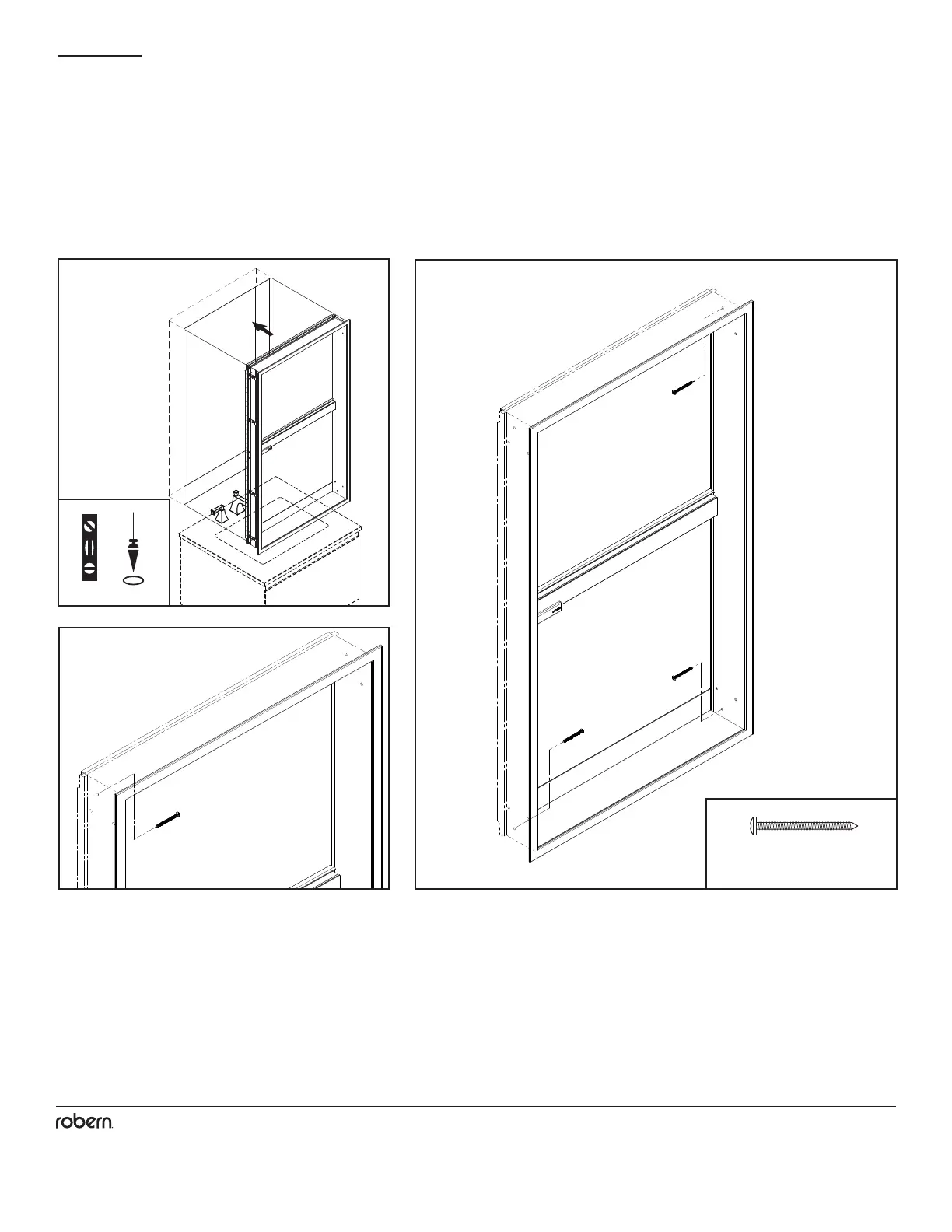

6. Place cabinet in rough-in and make sure cabinet is installed square, plumb, and level.
7. Install a #10 X 2” screw [SS674] through top mounting hole in cabinet side and screw into wall stud as shown. Do not over-tighten
screws or cabinet box may deform.
8. Once cabinet is installed square, plumb, and level, install #10 X 2” screws into wall studs through the three (or 7 for 72" tall cabinets)
remaining mounting holes. Do not over tighten screws.
[SS674]
#10 x 2" Screw
To Next Page
