M Series Reserve Recess Cabinet
© 2022 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
RECESS MOUNTING
4. For cabinets with electrical, remove and place aside the two screws [203-1614] securing the column to the cabinet. For 30" wide
cabinets there are four screws securing the column.
5. Disconnect wiring connectors between column and cabinet for ease of cabinet install, or pull column out of cabinet being mindful of
wires and place inside cabinet away from mounting brackets.

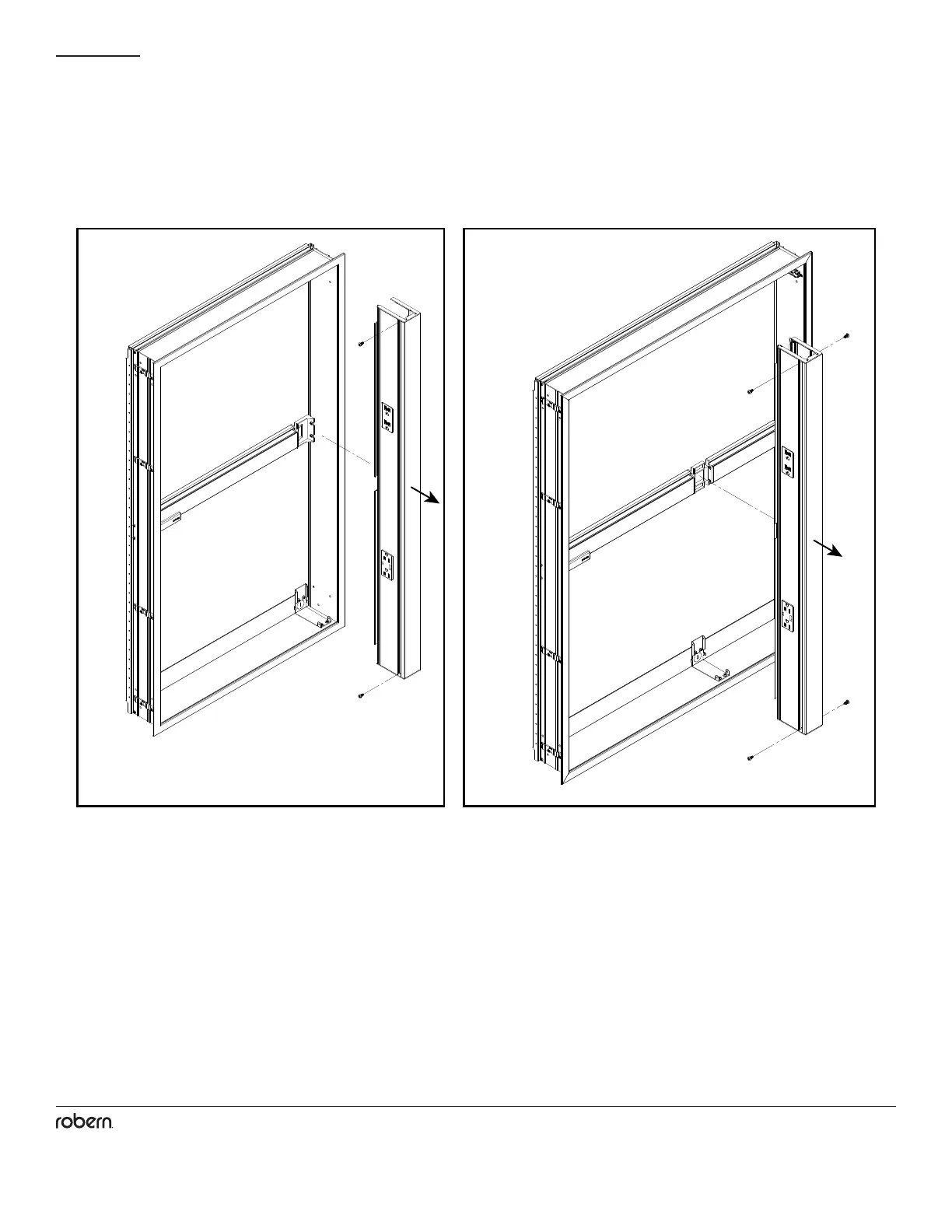

4A 4B
To Next Page
