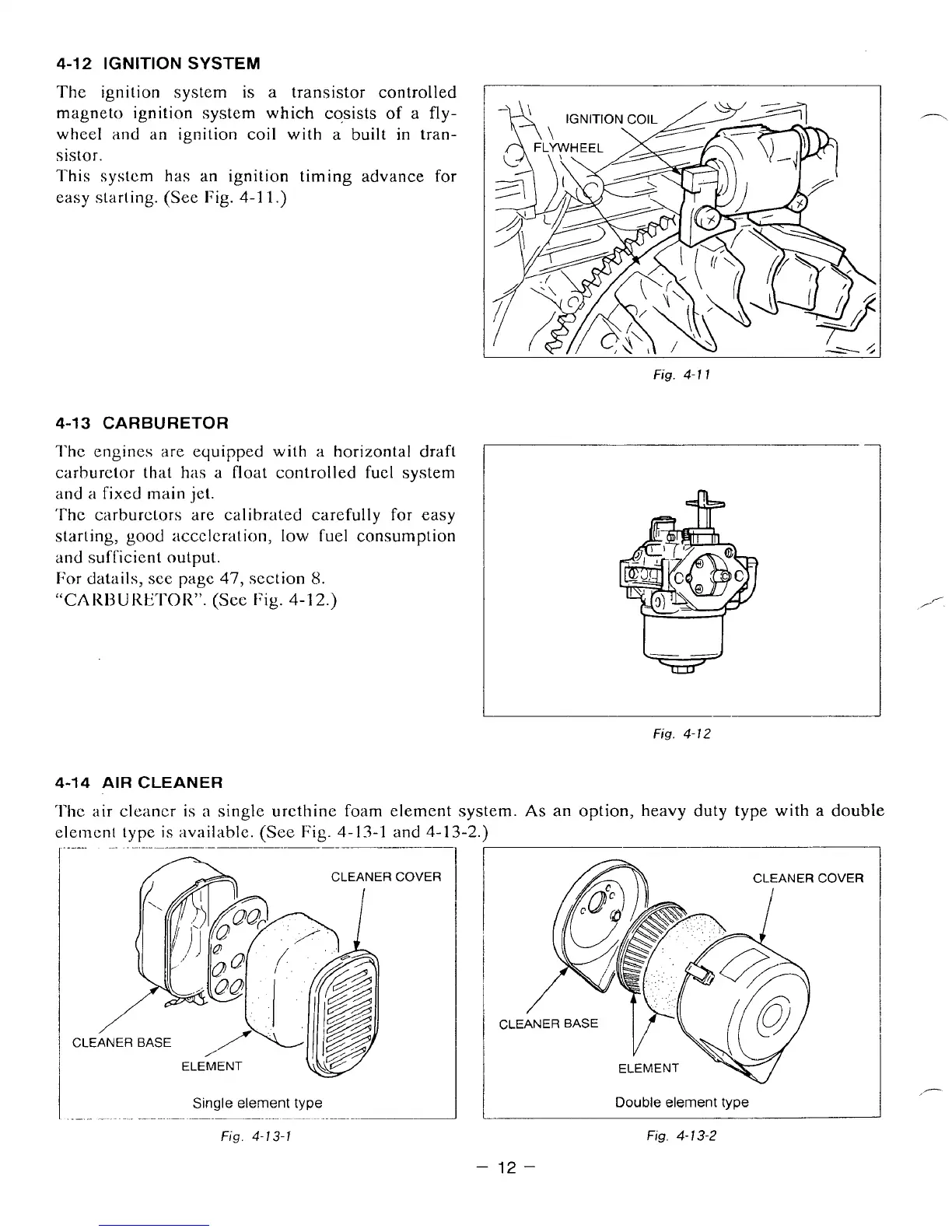

4-12
IGNITION
SYSTEM
The ignition system
is
a
transistor controlled
magneto ignition system which cosists
of
a
fly-
wheel
and
an
ignition coil with a built
in
tran-
sistor.
This system has an ignition timing advance
for
easy starting. (See Fig.
4-1
1.)
Fig.
4-
1
I
4-13
CARBURETOR
The
engines are equipped with
a
horizontal draft
carburetor that
has
a float controlled fuel system
and
a
fixed main
jcl.
The carburetors
are
calibrated carefully
for
easy
starting,
good
acceleration,
low
fuel consumption
and sufficient
output.
For
datails,
see
page
47,
section
8.
“CAKBUKE‘I’OR”.
(SCC
Fig.
4-12.)
4-14
AIR
CLEANER
‘I’hc
air
clcancr is
a
single urcthine foam element system.
As
an
option,
heavy duty type with
a
double
elemcnI type is available. (See Fig.
4-13-1
and
4-13-2.)
Single element type
__
..
”
~.~
~
Fig.
4-
13-1
COVER
Double element type
Fig.
4-
13-2
/”
-
