Robin EH12 Service Manual

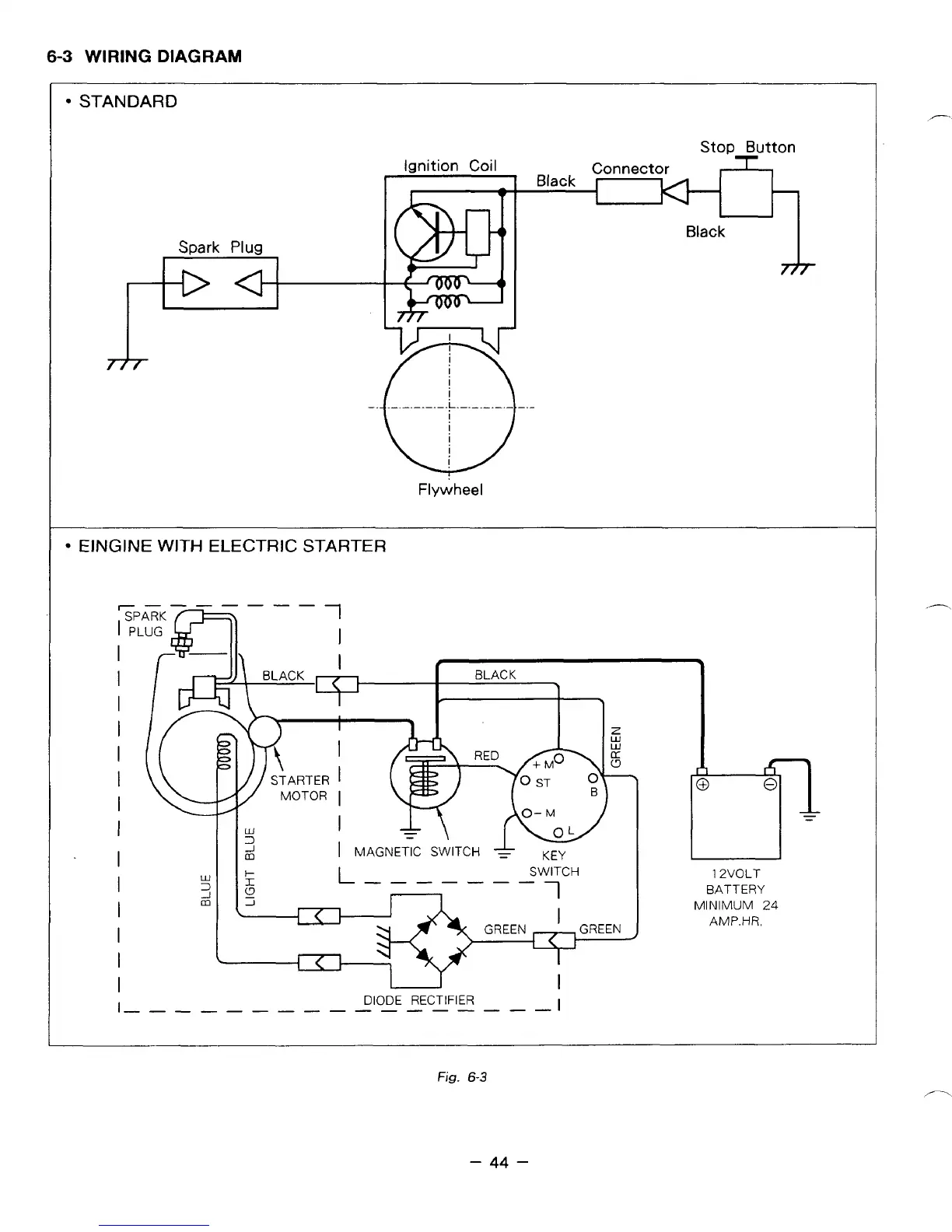

6-3 WIRING DIAGRAM
STANDARD
Ignition Coil
-
r=+
Spark Plug
TfT
Flywheel
Stop Button
Connector
w
3
_1
m
ElNGlNE WITH ELECTRIC STARTER
I MAGNETIC SWITCH KEY
SWITCH
L"""
- -1
U I
DIODE RECTIFIER
I """"""""- I
12VOLT
BATTERY
MINIMUM 24
AMP.HR.
1
Fig. 6-3
- 44 -

Robin EH12 Specifications

General

Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Bore x Stroke	60 mm (2.36 in) x 43 mm (1.69 in)
Max Output	3.6 kW (4.8 HP) at 3, 600 rpm
Engine Type	4-Cycle, Air cooled, Single cylinder, OHV
