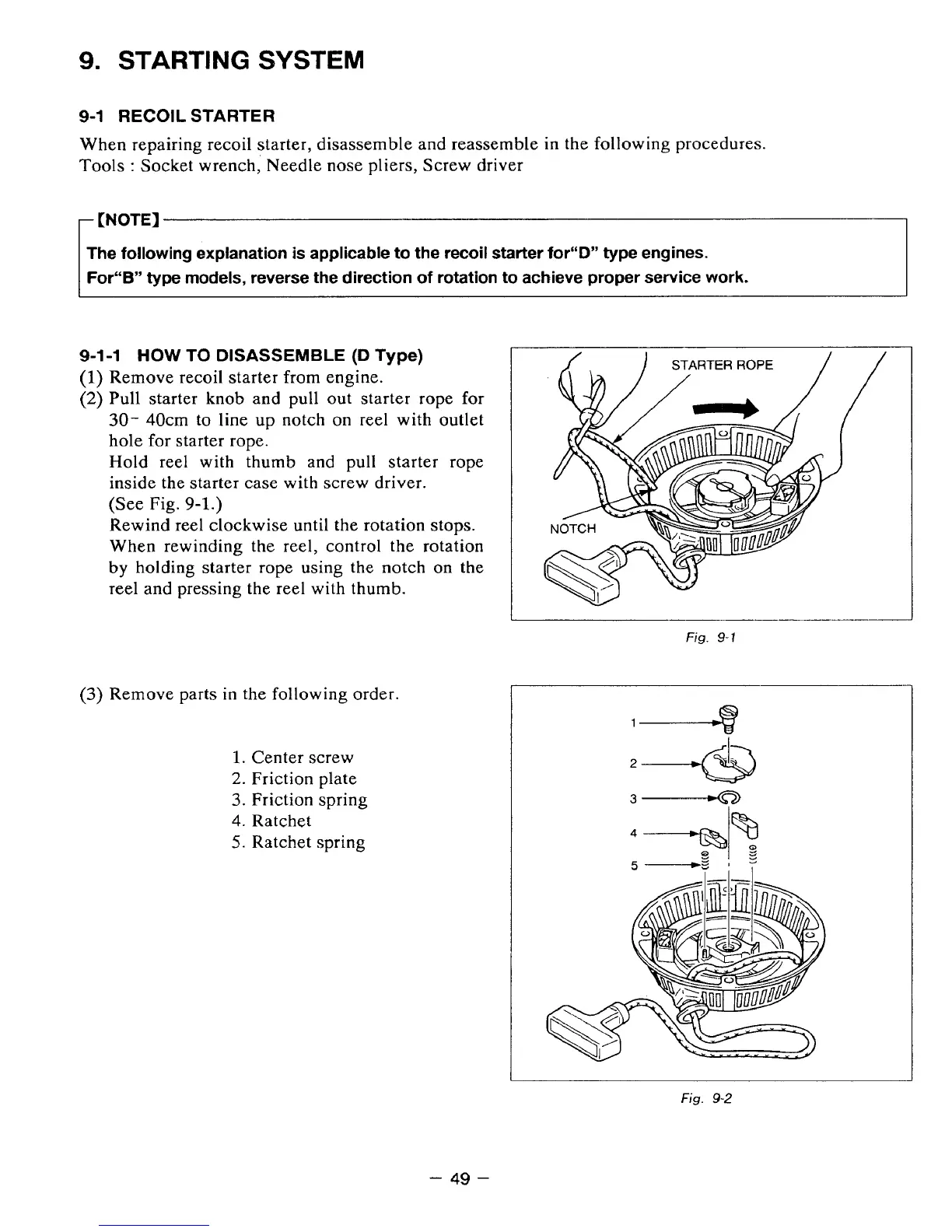

9.
STARTING
SYSTEM
9-1
RECOIL STARTER
When repairing recoil starter, disassemble and reassemble
in
the following procedures.
Tools
:
Socket wrench, Needle nose pliers, Screw driver
[NOTE]
The following explanation
is
applicable to the recoil starter for"D" type engines.
For"B" type models, reverse the direction
of
rotation to achieve proper service work.
9-1-1
HOW TO
DISASSEMBLE
(D
Type)
(1)
Remove recoil starter
from
engine.
(2)
Pull starter knob and pull out starter rope
for
30-
40cm to line
up
notch
on reel with outlet
hole
for
starter rope.
Hold reel with thumb and pull starter rope
inside the starter case with screw driver.
(See Fig.
9-1.)
Rewind reel clockwise
until
the
rotation stops.
When rewinding the reel, control the rotation
by
holding starter rope using the notch
on
the
reel and pressing the reel with thumb.
(3)
Remove parts
in
the following order.
1.
Center
screw
2.
Friction plate
3.
Friction spring
4.
Ratchet
5.
Ratchet spring
Fig.
9-1
3d
Fig.
9-2
-
49
-
