Robin EH12 Service Manual

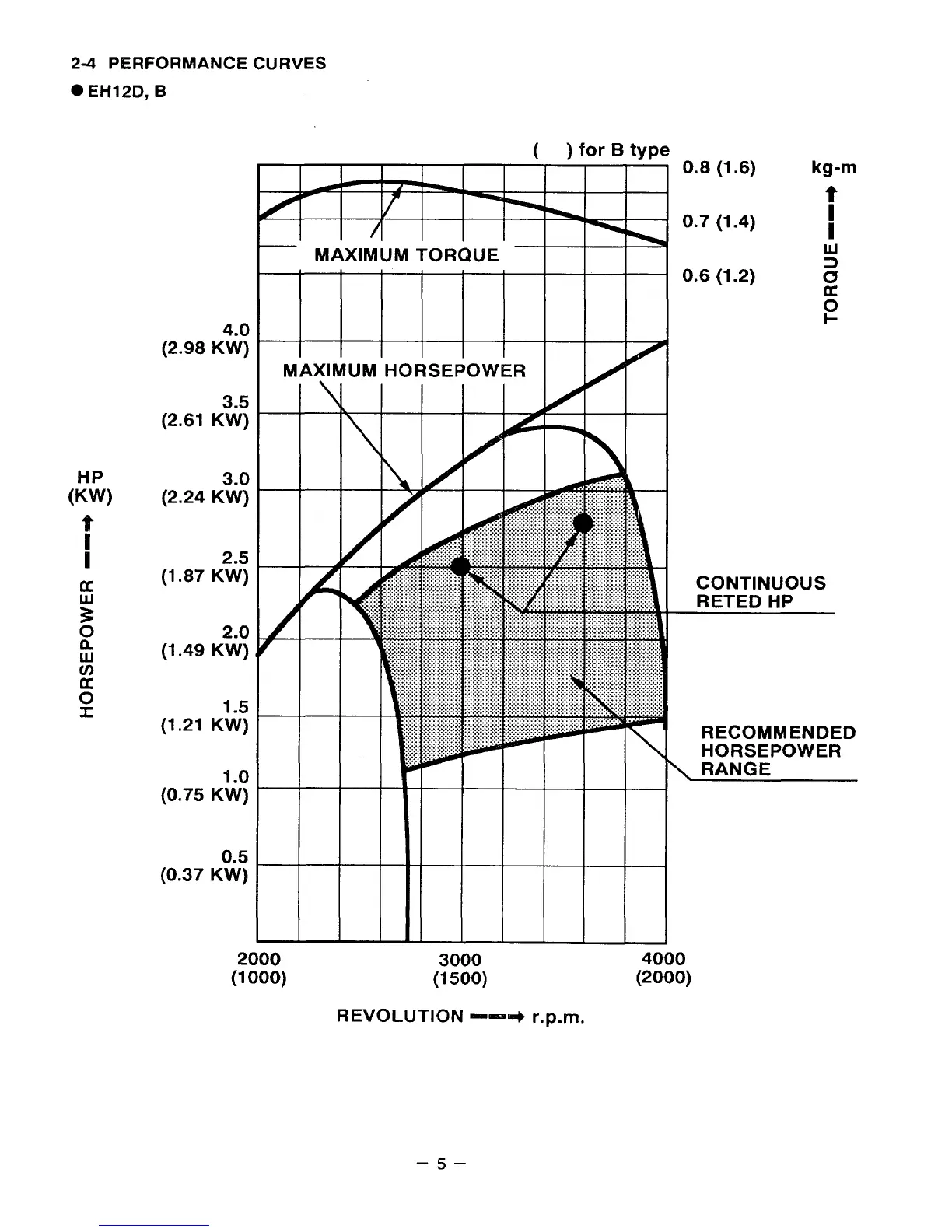

2-4 PERFORMANCE CURVES
0 EH12D, B
4.0
(2.98 KW)
3.5
(2.61 KW)
3.0
(2.24 KW)
2.5
(1.87 KW)
2.0
(1.49 KW)
1.5
(1.21 KW)
1
.o
(0.75 KW)
0.5
(0.37 KW)
( ) for B type
-
MAXIMUM TORQUE
1
2000
(1
000)
3000
(1 500)
REVOLUTION --s) r.p.m.
0.8 (1.6) kg-m
0.7 (1.4) I
W
t
I
0.6 (1.2)
0
I-
CONTINUOUS
RETED
HP
RECOMMENDED
HORSEPOWER
\ RANGE
4000
(2000)
i
f
-5-

Robin EH12 Specifications

General

Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Bore x Stroke	60 mm (2.36 in) x 43 mm (1.69 in)
Max Output	3.6 kW (4.8 HP) at 3, 600 rpm
Engine Type	4-Cycle, Air cooled, Single cylinder, OHV
