Robin EH12 Service Manual

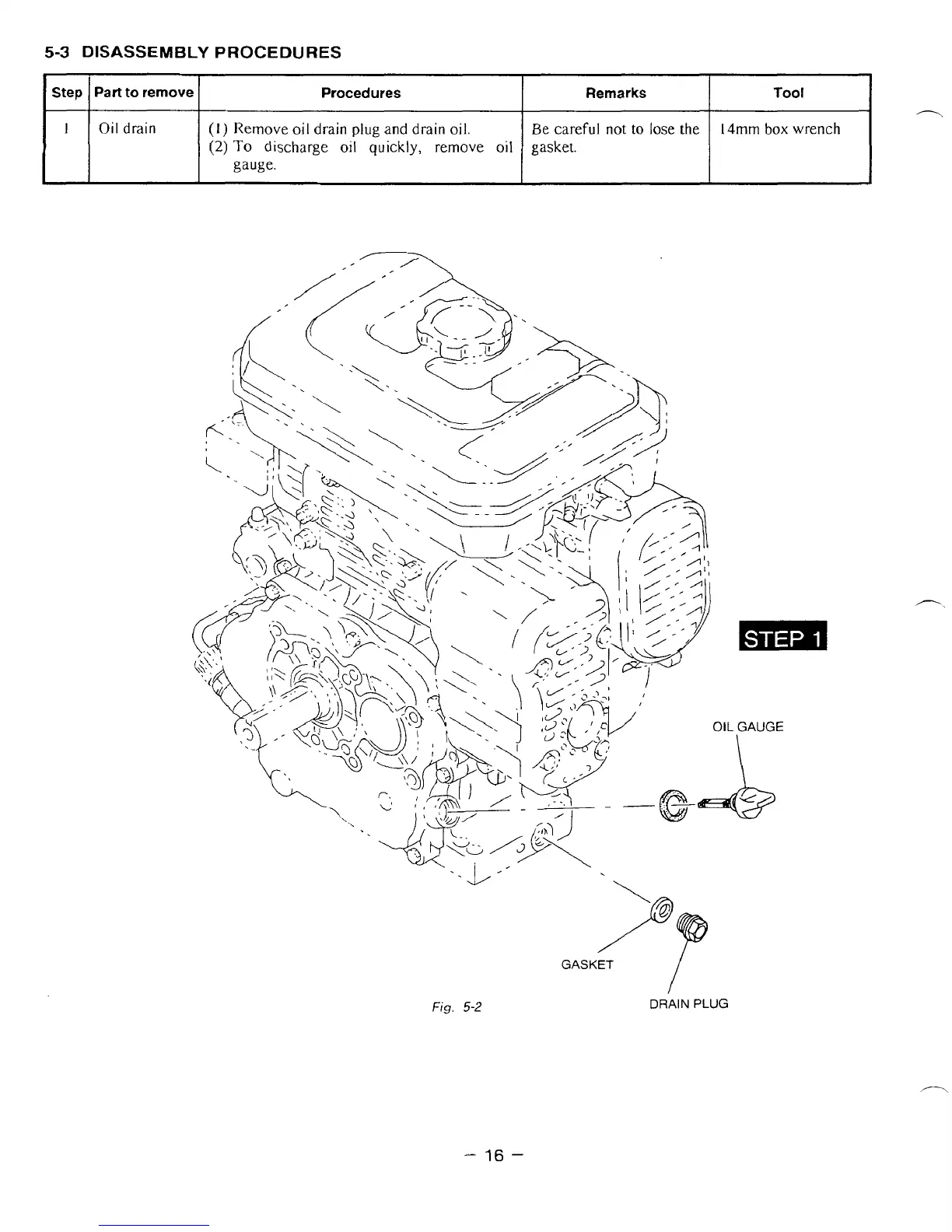

5-3 DISASSEMBLY PROCEDURES
Step
Tool Remarks
Procedures Part to remove
I
14mm box wrench
Be careful not to lose the
(I) Remove oil drain plug and drain oil. Oil drain
(2) ‘To discharge oil quickly, remove oil
gasket.
gauge.
GASKET
I
Fig. 5-2
DRAIN PLUG
- 16 -

Robin EH12 Specifications

General

Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Bore x Stroke	60 mm (2.36 in) x 43 mm (1.69 in)
Max Output	3.6 kW (4.8 HP) at 3, 600 rpm
Engine Type	4-Cycle, Air cooled, Single cylinder, OHV
