Robin EH12 Service Manual

step
2

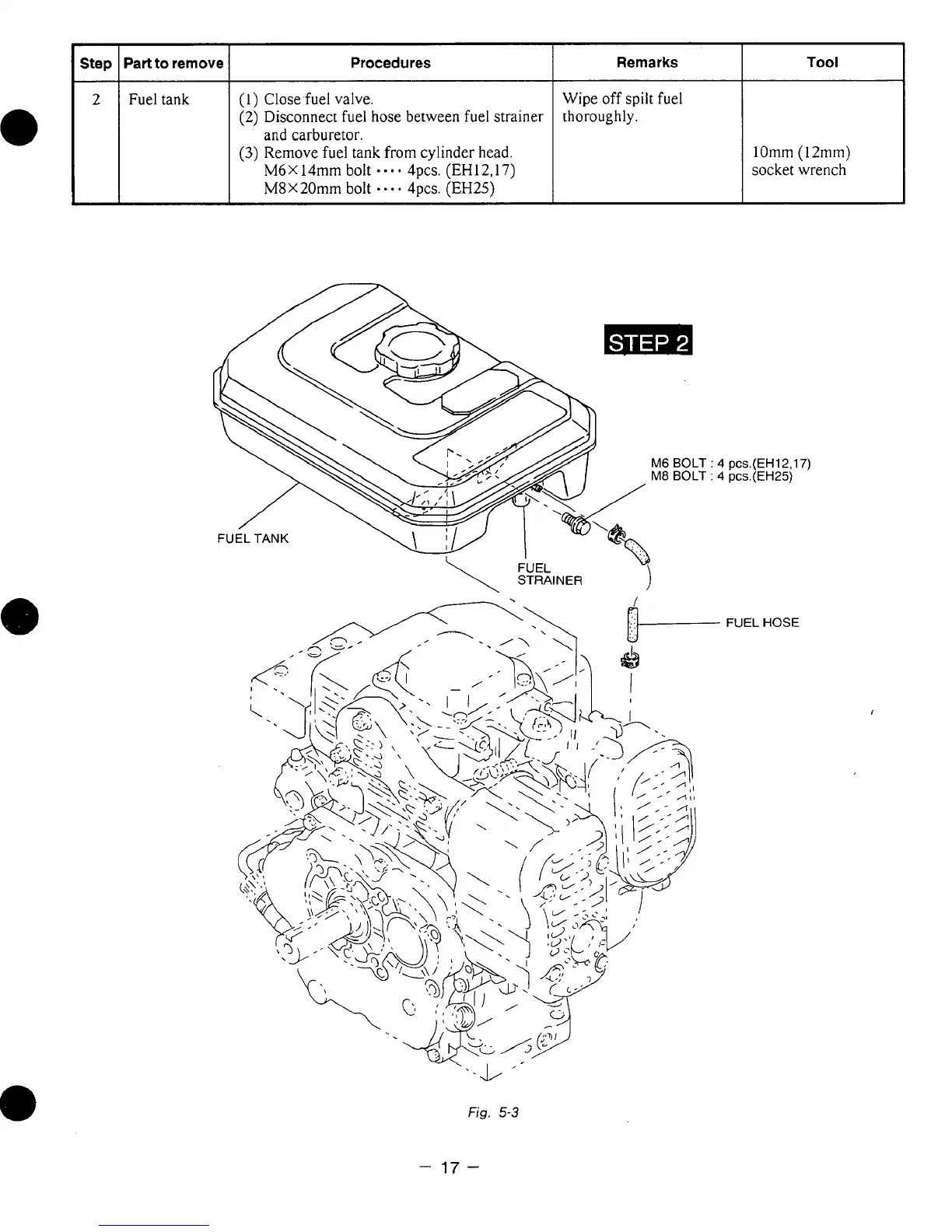

Part to remove
Fuel tank
Procedures
(1) Close fuel valve.
(2) Disconnect fuel hose between fuel strainer
and carburetor.
(3) Remove fuel tank from cylinder head.
M6X14rnm bolt .... 4pcs. (EH12,17)
M8X20mm bolt .-.. 4pcs. (EH25)
Remarks
Wipe off spilt fuel
thoroughly.
Tool
lOrnrn (1 2mm)
socket wrench
M6
ME
BOLT : 4 pcs.(EH12,17)
BOLT : 4 pcs.(EH25)
FUEL HOSE
- 17-

Robin EH12 Specifications

General

Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Bore x Stroke	60 mm (2.36 in) x 43 mm (1.69 in)
Max Output	3.6 kW (4.8 HP) at 3, 600 rpm
Engine Type	4-Cycle, Air cooled, Single cylinder, OHV
