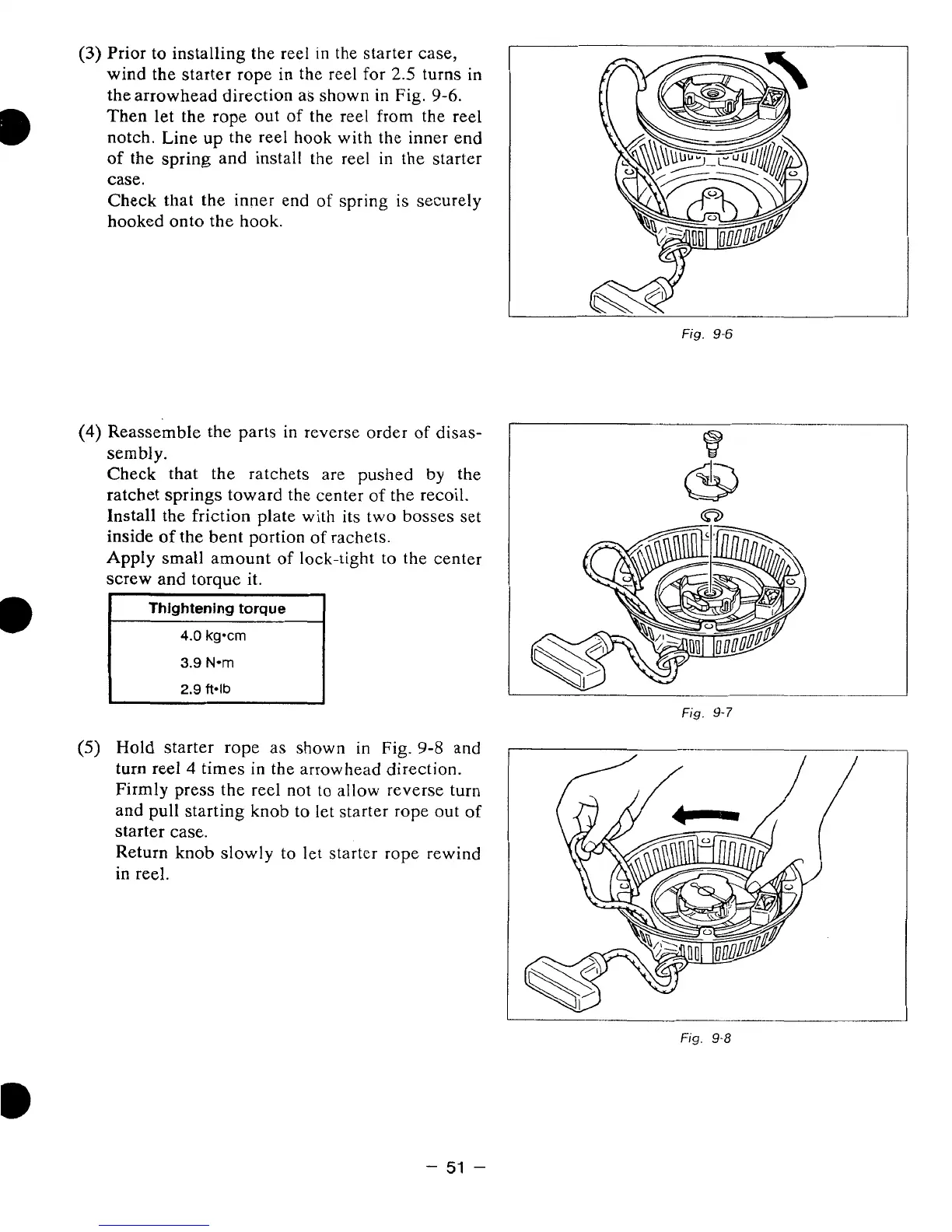

(3)
Prior to installing the reel
in
the starter case,
wind the starter rope
in
the reel for
2.5
turns
in
the arrowhead direction
as
shown
in
Fig.
9-6.
Then
let the rope
out
of the reel from the reel
notch. Line up the reel hook with the inner end
of
the spring and install the reel
in
the
starter
case.
Check that
the
inner end
of
spring
is
securely
hooked onto
the
hook.
(4)
Reassemble the parts
in
reverse order
of
disas-
sembly.
Check that the ratchets are pushed
by
the
ratchet springs toward the center
of
the recoil.
Install the friction plate with
its
two bosses set
inside of the bent portion
of
rachets.
Apply small amount
of
lock-tight
to
the center
screw and torque it.
3.9
Nom
2.9
ft4b
(5)
Hold starter rope as shown
in
Fig.
9-8
and
turn reel
4
times
in
the arrowhead direction.
Firmly press the reel not
to
allow
reverse
turn
and pull starting knob to let starter rope out of
starter case.
Return knob slowly
to
let starter rope rewind
in
reel.
Fig.
9-6
Fig.
9-7
I
I
Fig.
9-8
