Robin EH25 Service Manual

Step
18
19
20
-
Part to remove 1 Procedures
I
Remarks
~~ ~ ~~
Ignition coil
(I) Disconnect ignition plug cap and remove
ignition coil from crankcase.
M6 X 25rnm bolt and washer - - -. 2pcs.
Spark
plug
(I) Remove spark plug from cylinder head.
Breather
(1 ) Remove breather cover.
M6 X 20mm flange bolt 2pcs.
plate and gasket (breather plate).
(2) Remove gasket (breather cover), breather
Tool
1 Omrn
socket wrench
21 rnrn
socket wrench
1 Ornrn
socket wrench
iGNlTiON COIL
M6 BOLT and WASHER : 2 pcs.
GASKET (BREATHER COVER)
BREATHER COVER
M6 FLANGE BOLT : 2 pCS.

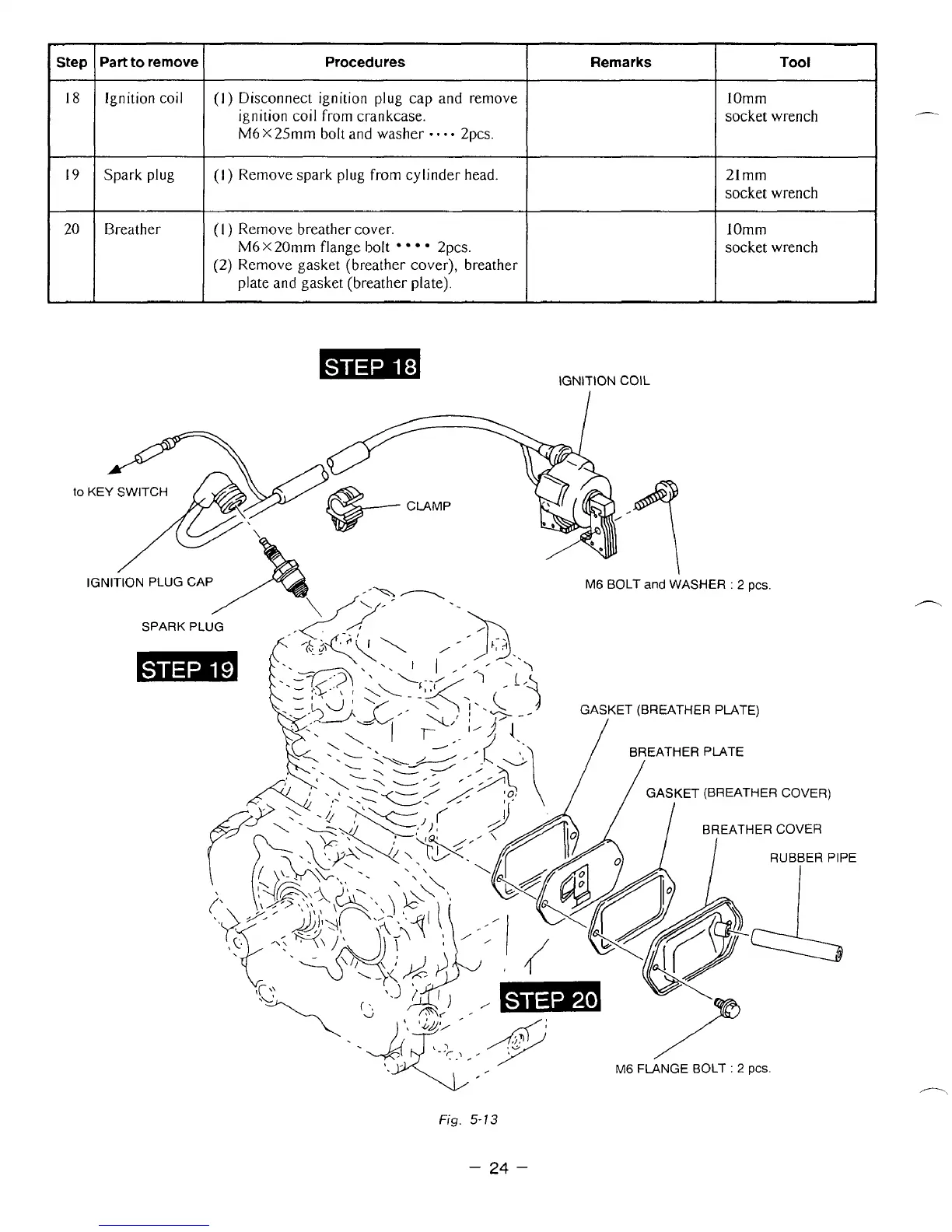

Fig. 5-13
- 24 -
