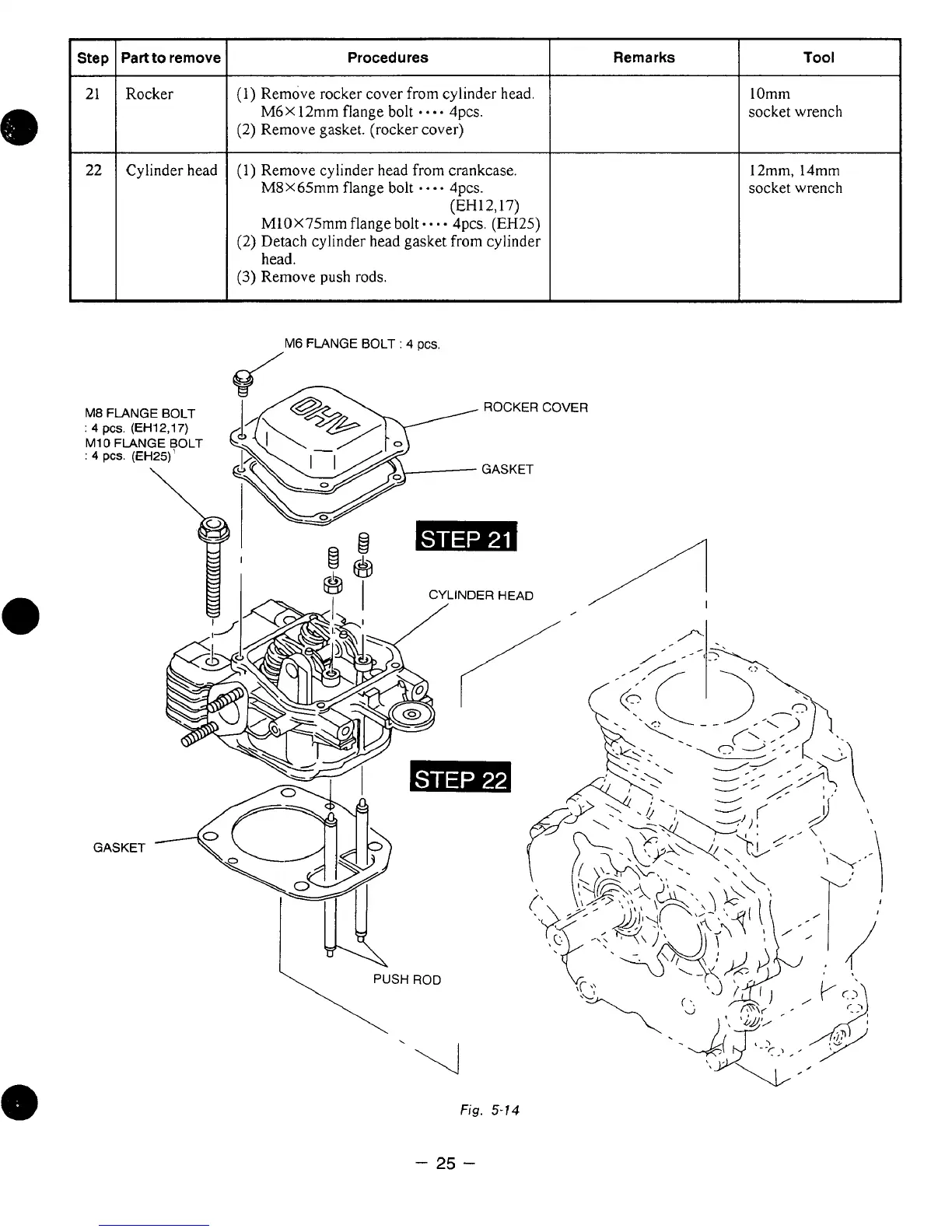

Robin EH25 Service Manual

Step
21
-
-
22
-
Part to remove
Rocker
Cylinder head
Procedures
I
Remarks
(1) Remove cylinder head from crankcase.
M8X65mm flange
bolt .+.. 4pcs.
(EH12,17)
MlOX75mmflange bolt.... 4pcs.
(EH25)
(2) Detach cylinder head gasket from cylinder
head.
(3) Remove push rods.
(1) Remove rocker cover from cylinder head.
(2) Remove gasket. (rocker cover)
M6X 12mm flange bolt 4pcs.
L
M6 FLANGE BOLT : 4 pcs.
/
L
Tool
lOmm
socket wrench
12rnm, 14mm
socket wrench
- 25 -
