Part to remov
Cylinder
head
Procedures
(1) Remove rocker cover and gasket.
(2) Loosen lock nut for rocker arm
6 4 x 12mm Bolt e.- - 4pcs.
adjusting screw.
8 cJ5 Nut ---a 2~~s.
(3) Slide off rocker arm shaft from the
holder to the flywheel side, remove
rocker arms.
(4) Remove
push rods.(See Fig. 31.)
(5) Remove cylinder head and gasket.
10
cJ5 X 75mm Bolt - - 4pcs.
Remarks
Mark rocker arms and
push
rods so they be
reinstalled in their
original positions.
Tool
lOmm ' Box wrench
12mm
Box wrench
14mm
Box wrench
6 + FLANGE
BOLT :
I\ ROCKER ARM
I' 8 4 NUT : 2pcs.
ADJUSTING SCREW

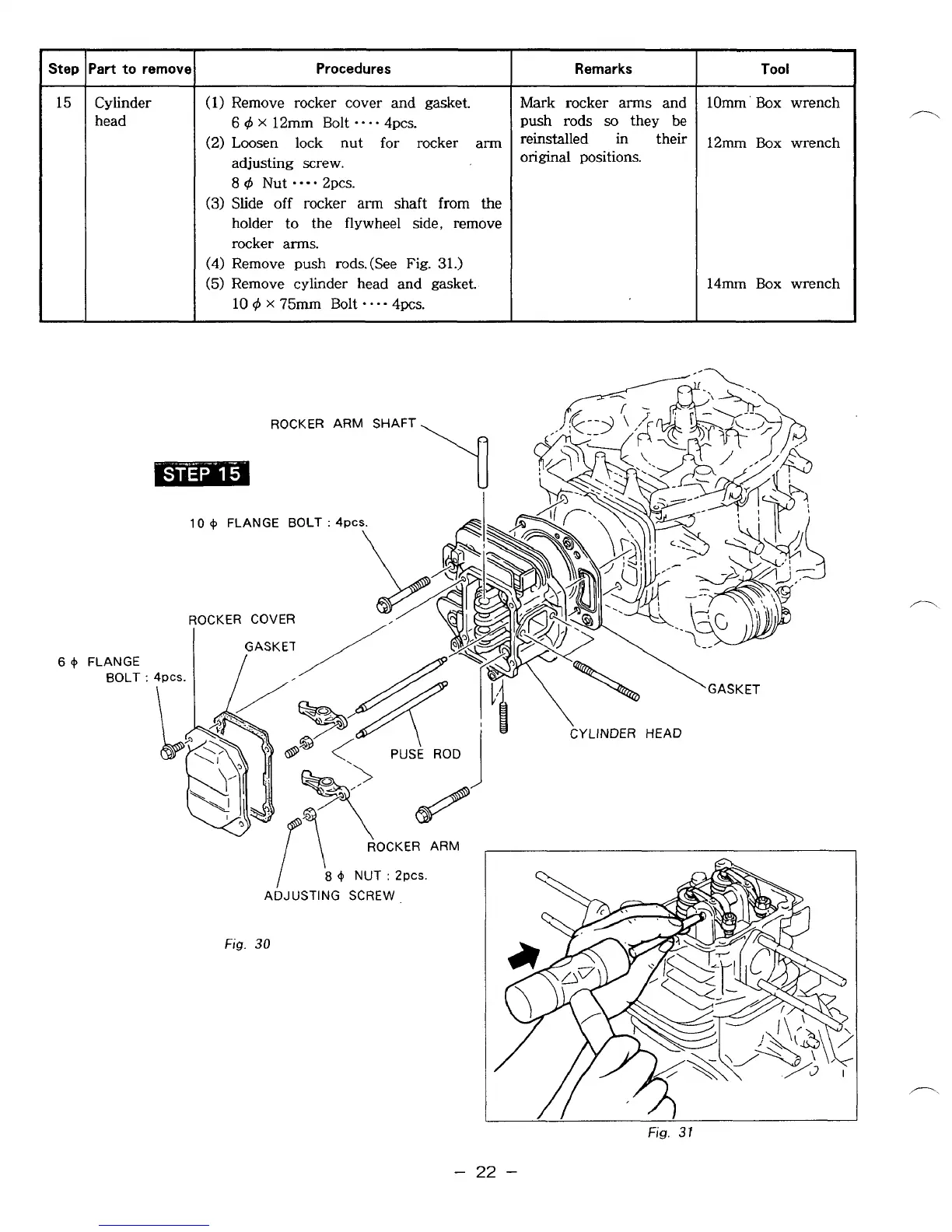

Fig. 30
Fig. 31
- 22 -
