Step
16
17
-
Part to remov
Intake and
exhaust
valve
Breather
Procedures Remarks
(1) Press -down spring retainer and slide Clean carbon and gum
it to release from the groove of valve deposits from the valves,
stem, then remove spring retainer and
valve
seats, ports and
valve spring.(See Fig.
32.)
guides. Inspect valves,
(2) Remove intake and exhaust valves valve seats and guides.
from cylinder head.
(1) Remove breather cover.
6 4 x 12mm Bolt .-e- 2pcs.
Remove gasket
( breather cover ) ,
breather plate and gasket (breather
plate).
Tool
lOmm Box wrench
6 + FLANGE BOLT : 2pcs.
9
BREATHER COVER e
GASKET (BREATHER COVER)
BREATHER PLATE
GASKET (BREATHER PLATE)

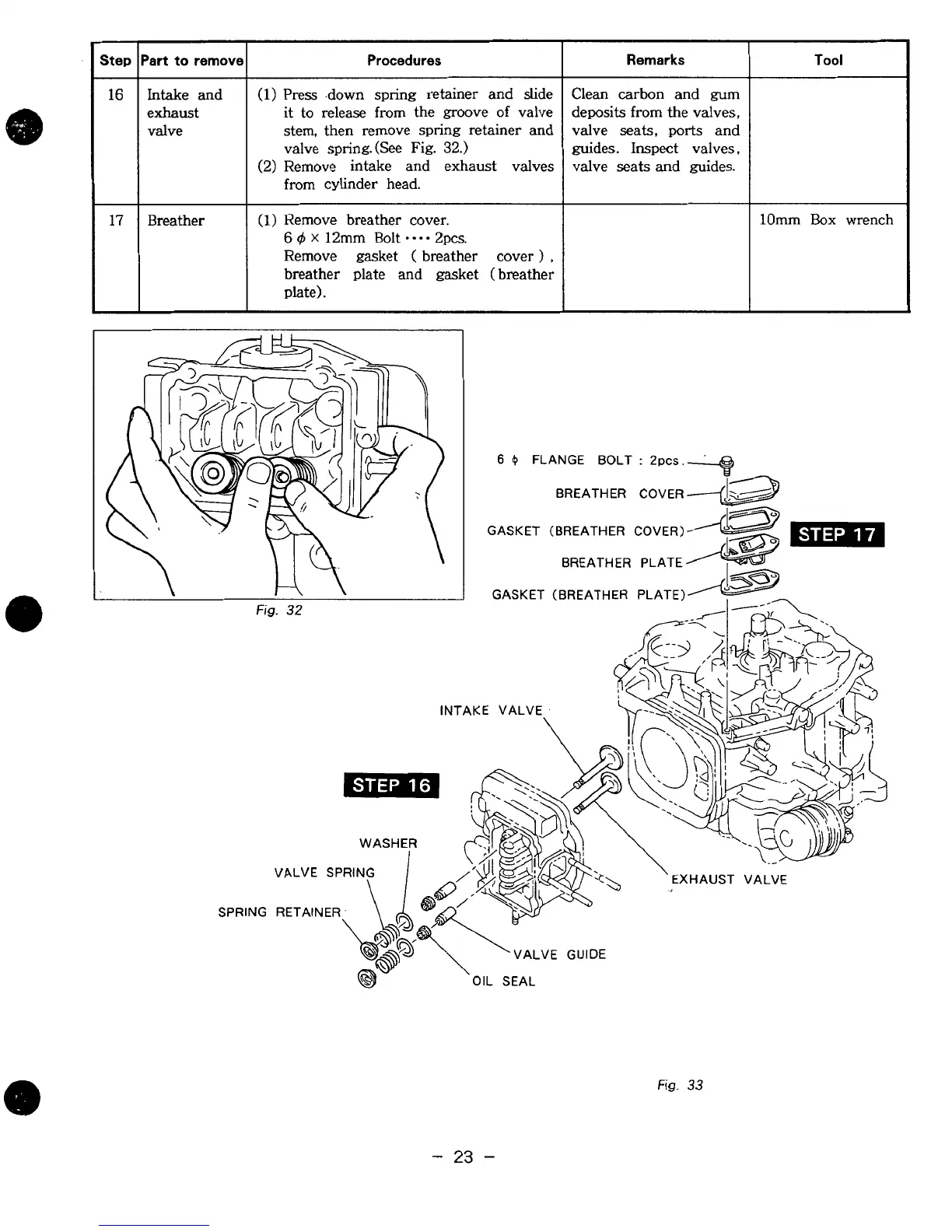

Fig. 32
INTAKE VALVE
VALVE SPRING
EXHAUST VALVE
SPRING RETAINER
VALVE GUIDE
OIL SEAL
Fig. 33
- 23 -
