Robin EH30V User Manual

-
Step
23
-
24
-
Part to remove Procedures
Connecting
8 q5 x 46mm Bolt 2pcs.
piston
-necting rod cap. rod
and
(1) Remove connecting rod bolts and con
(2) Turn crankshaft until piston is at top
dead center, push out connecting rod
and piston assembly through top
of
cylinder.
(3) Remove clips and piston pin to
remove connecting rod from piston.
(4) Remove piston rings from piston.
Crankshaft
(1) Tap lightly on flywheel end of
crankshaft to rmove from crankcase.
(See Fig.
42.)
Remarks
Scrape off all carbon
deposits that might
interfere with removal
of piston from upper
end of cylinder.
12mm Box wrench
Ring expander
PISTON RING
CRANKSHAFT^' 1
U
SPACER ”---@
Tool
\
\ 8 + BOLT : 2pcs
I
CONNECTING ROD CAP
I

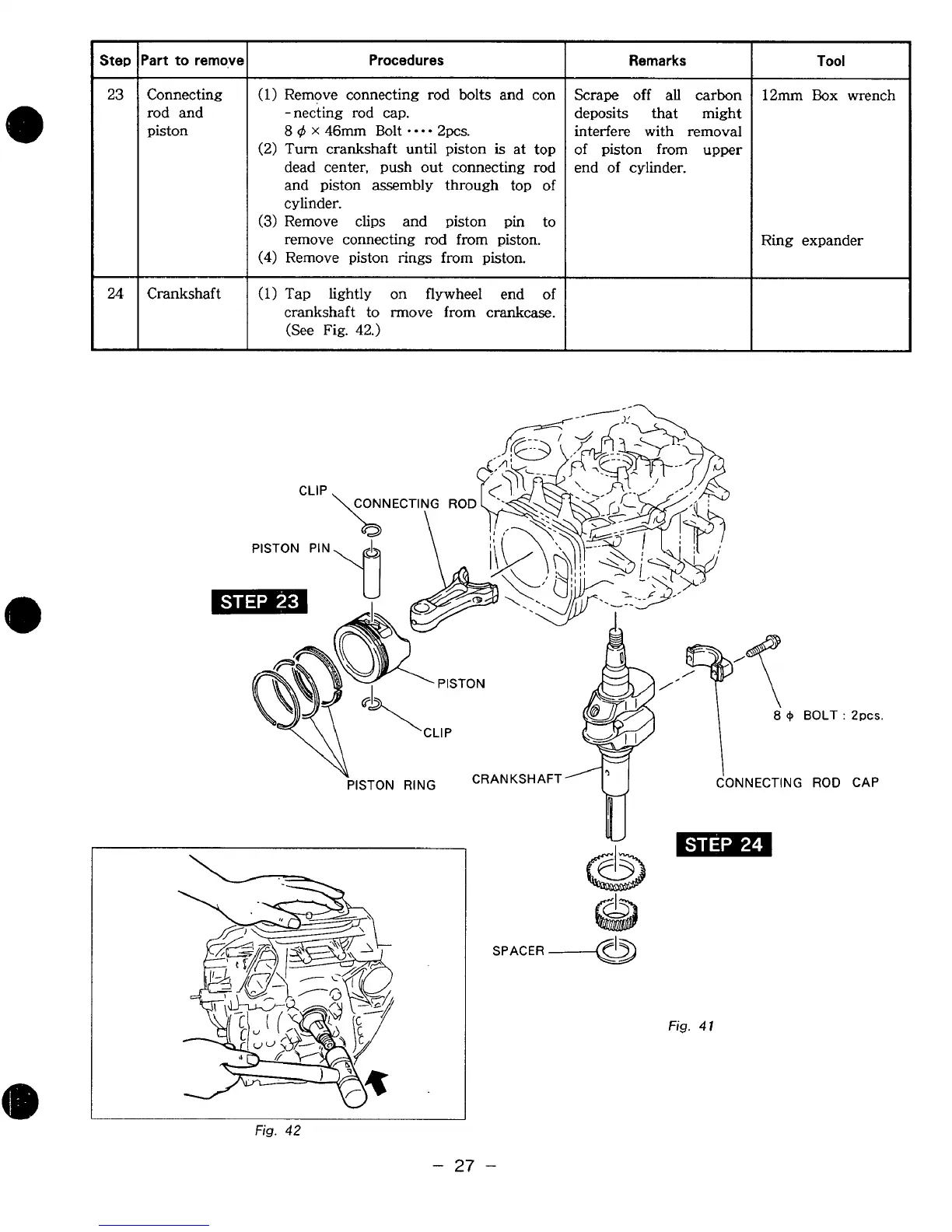

Fig. 41
Fig. 42
- 27 -
