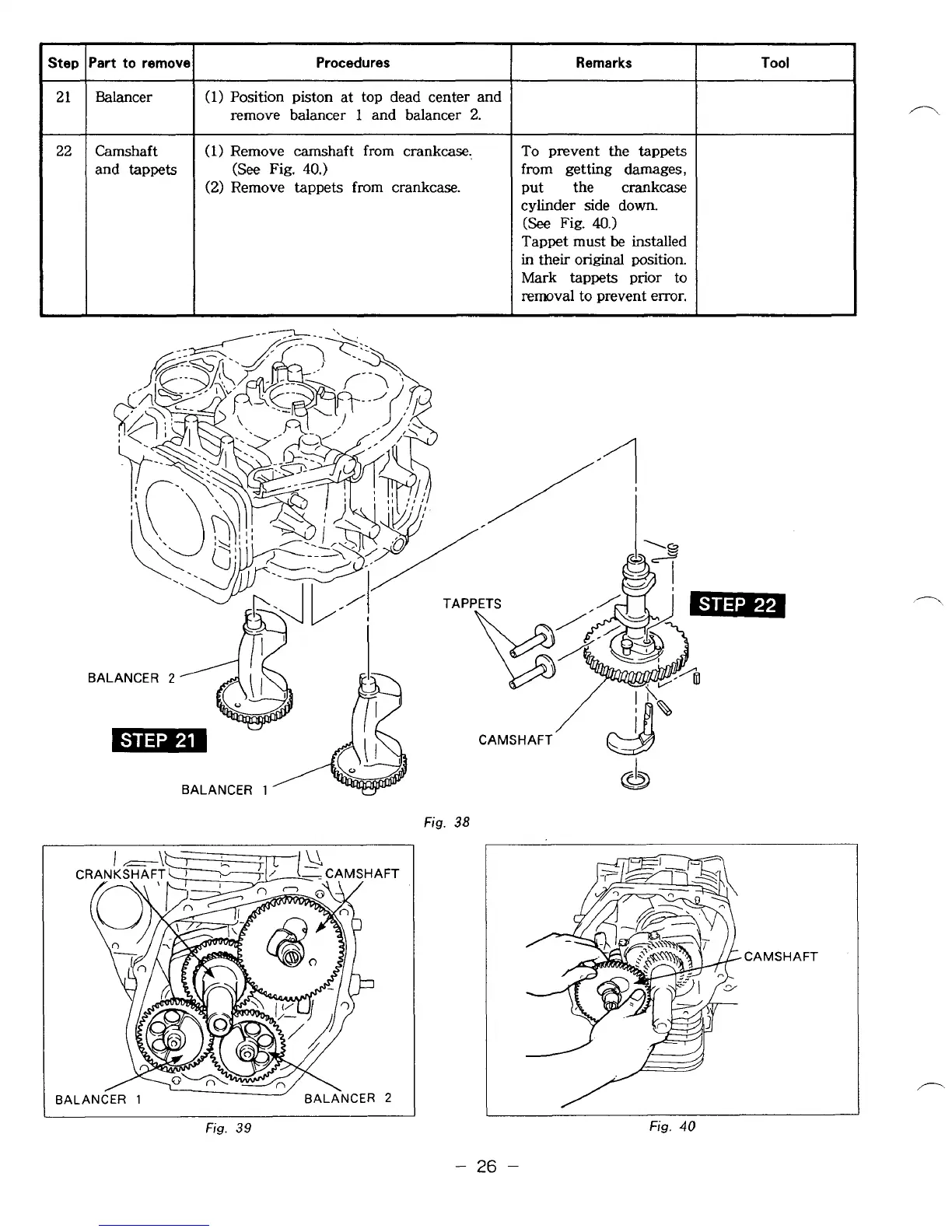

Robin EH30V - Page 30

Step
21
-
-
22
Part to remove
Balancer
Camshaft
and tappets
Procedures
(1 1 Position piston at top dead center and
remove balancer
1 and balancer 2.
(1) Remove camshaft from crankcase.,
(2) Remove tappets from crankcase.
(See Fig. 40.)
Remarks Tool
To prevent the tappets
from getting damages,
put the crankcase
cylinder side down.
(See Fig. 40.)
Tappet must be installed
in their
original position.
Mark tappets prior to
removal
to prevent error.
Fig. 38
CAMSHAFT
fig. 39
- 26 -
Fig. 40
