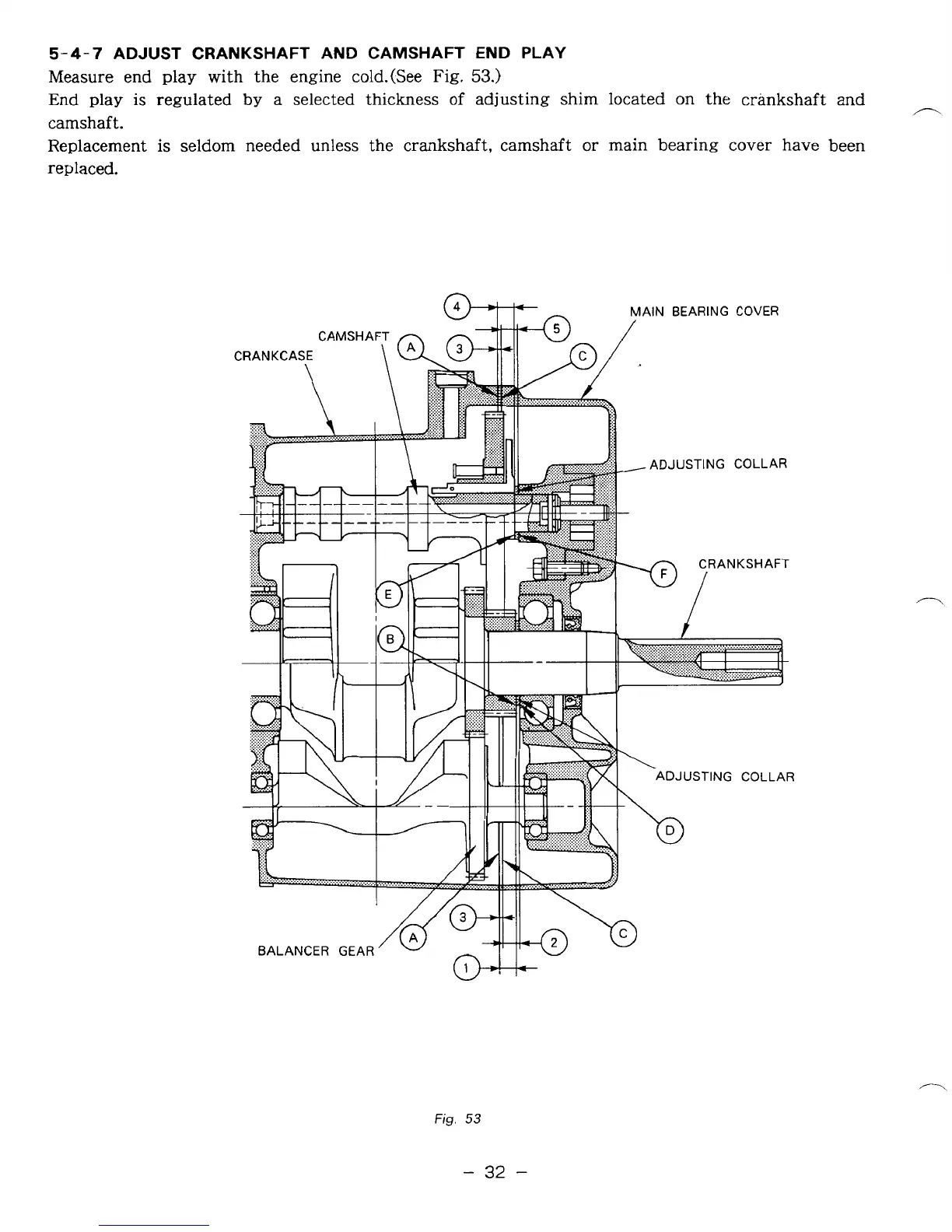

5-4-7
ADJUST CRANKSHAFT AND CAMSHAFT END
PLAY
Measure end play with the engine cold.(See
Fig.
53.)
End play
is
regulated
by
a selected thickness of adjusting shim located on the crankshaft and
camshaft.
Replacement
is
seldom needed unless the crankshaft, camshaft or main bearing cover have been
replaced.
n
@-ti"
MAIN BEARING
COVER
BALANCER
GEAR
Fig.
53
-
32
-
