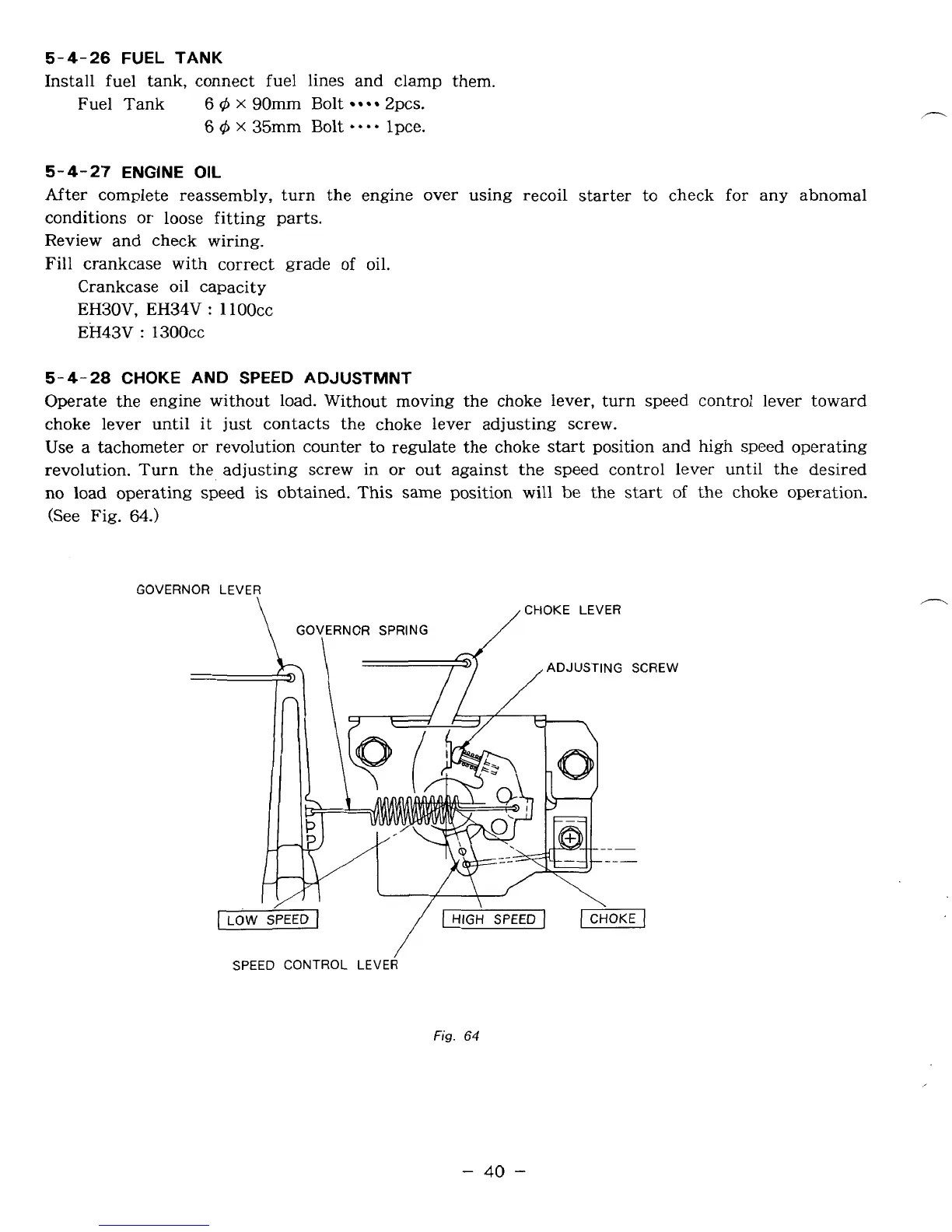

5-4-26
FUEL
TANK
Install fuel tank, connect fuel lines and clamp them.
Fuel Tank
6
@
X
90mm Bolt 2pcs.
6
@
X
35mm Bolt
*--*
lpce.
5-4-27
ENGINE
OIL
After complete reassembly, turn the engine over using recoil starter to check
for
any abnomal
conditions or loose fitting parts.
Review and check wiring.
Fill crankcase with correct grade
of
oil.
Crankcase oil capacity
EH30V,
EH34V
:
1
lOOcc
EH43V
:
1300cc
5-4-28
CHOKE AND SPEED ADJUSTMNT
Operate the engine without load. Without moving the choke lever, turn speed contrc
choke lever until it just contacts the choke lever adjusting screw.
Use a tachometer
or
revolution counter to regulate the choke start position and high speed operating
revolution. Turn the adjusting screw in or out against the speed control lever until the desired
no
load
operating speed is obtained. This same position will be the start
of
the choke operation.
(See Fig.
64.)
GOVERNOR LEVER
CHOKE LEVER
GOVERNOR SPRING
ADJUSTING
SCREW
)1
lever toward
SPEED CONTROL LEVER
fig.
64
-
40
-
