Robin EH30V User Manual

9 11
\L
i
3
8
1
2
7 >
01111111)
5 6 4

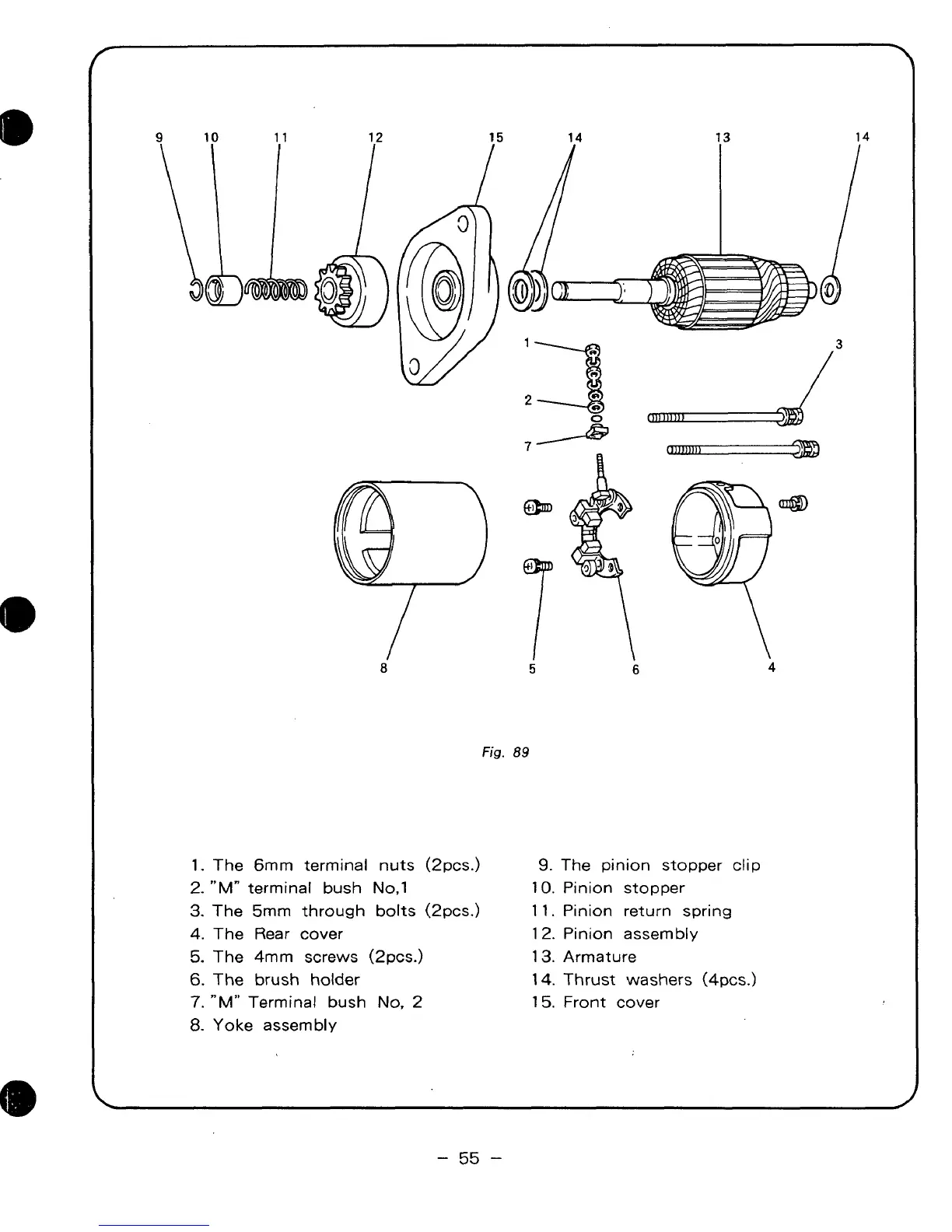

Fig. 89
1. The 6mm terminal nuts (2pcs.)
2. "M" terminal bush No,l
3. The 5mm through bolts (2pcs.)
4. The Rear cover
5. The 4mm screws (2pcs.)
6. The brush holder
7. "M" Terminal bush No, 2
8. Yoke assembly
9. The pinion stopper clip
10. Pinion stopper
1 1. Pinion return spring
12. Pinion assembly
13. Armature
14. Thrust washers (4pcs.)
15. Front cover
- 55 -
