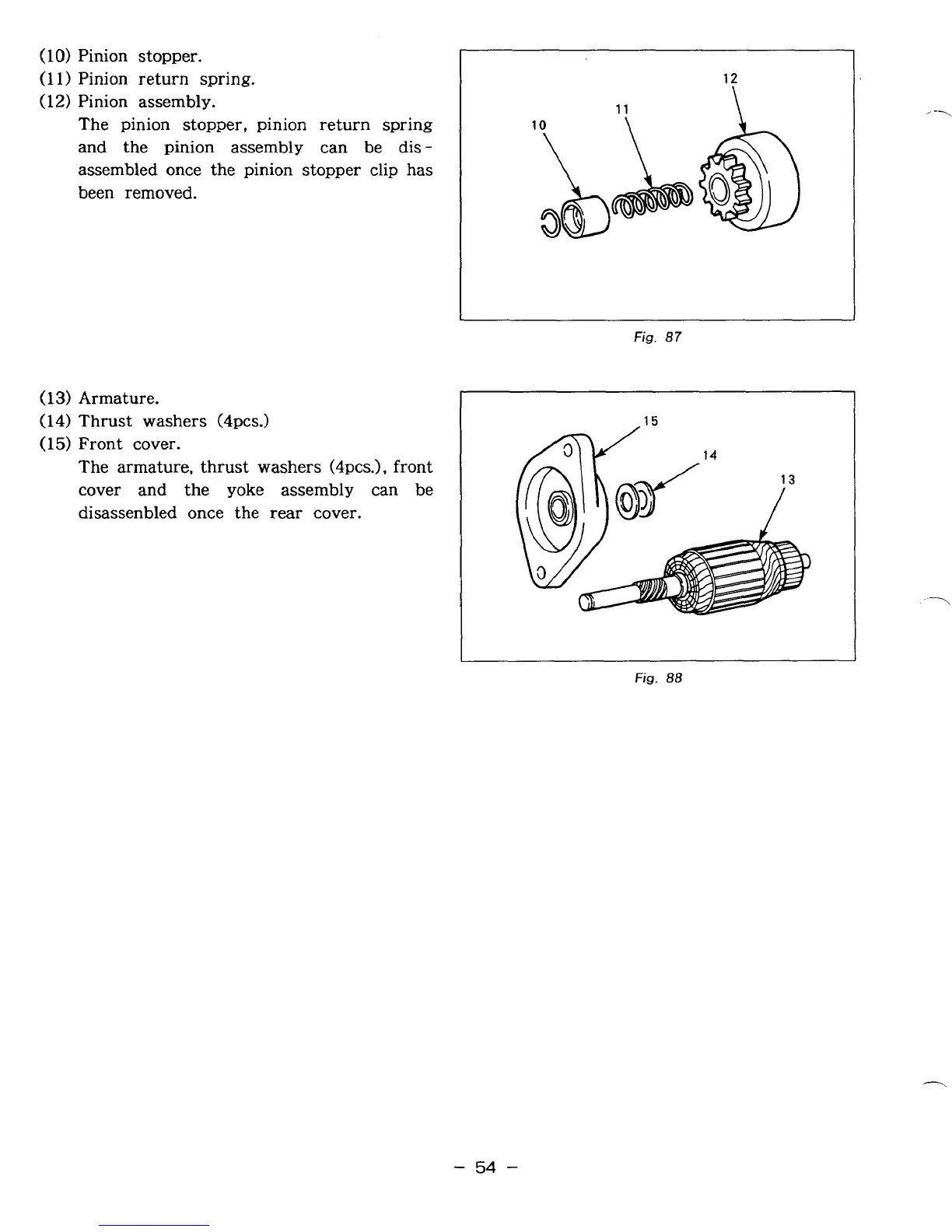

(lo) Pinion stopper.
(1 1) Pinion return spring.
( 12) Pinion assembly.
The pinion stopper, pinion return spring
and the pinion assembly can be dis -
assembled once the pinion stopper clip has
been removed.
(13) Armature.
(14) Thrust washers (4pcs.)
(15) Front cover.
The armature, thrust washers (~Pcs.), front
cover and the
yoke assembly can be
disassenbled once the rear cover.
12
11 \
Fig. 87
15
Fig. 88
- 54 -
