Robin EY15 User Manual

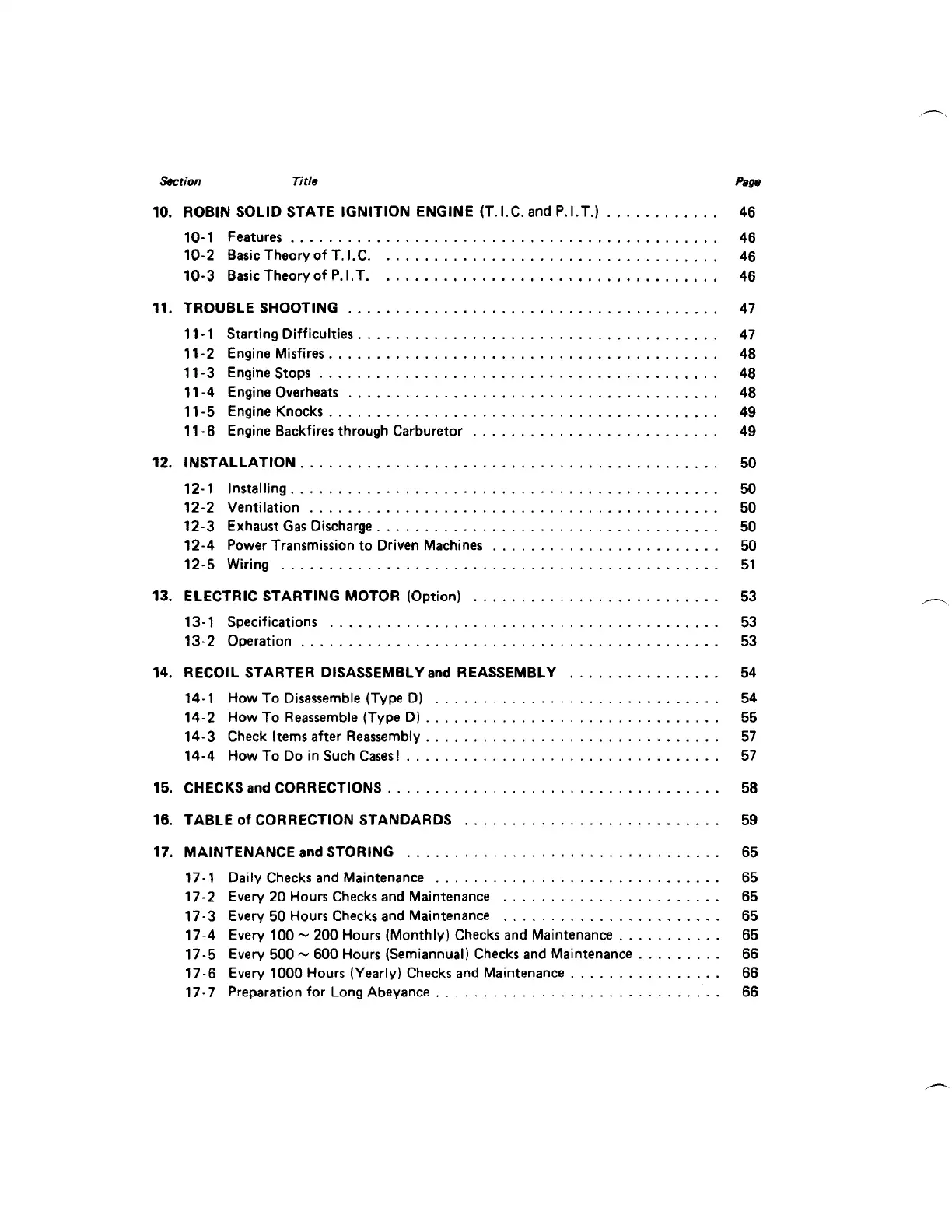

Section Title pese
10 . ROBIN SOLID STATE IGNITION ENGINE (T.I.C. and P.I.T.) ............ 46
10-1
Features ............................................. 46
10-2
Basic Theory of T . I.C. ................................... 46
10-3
Basic Theory of P . I.T. ................................... 46
11 . TROUBLE SHOOTING ....................................... 47
11
. 1 Starting Difficulties ...................................... 47
11
-2 Engine Misfires ......................................... 48
1 1 -3 Engine Stops .......................................... 48
11
-4 Engine Overheats ....................................... 48
11 -6 Engine Backfires through Carburetor .......................... 49
12 . INSTALLATION ............................................ 50
12-1
Installing ............................................. 50
12-2 Ventilation ........................................... 50
12-3
Exhaust Gas Discharge .................................... 50
12-4
Power Transmission to Driven Machines ........................ 50
12-5
Wiring .............................................. 51
13 . ELECTRIC STARTING MOTOR (Option) .......................... 53
13- 1 Specifications ......................................... 53
13-2
Operation ............................................ 53
11-5
Engine Knocks ......................................... 49
14 . RECOIL STARTER DISASSEMBLY and REASSEMBLY ................ 54
14-1
How To Disassemble (Type D) .............................. 54
14-2
How To Reassemble (Type D) ............................... 55
14-3
Check Items after Reassembly ............................... 57
14-4
How To Do in Such Cases! ................................. 57
15 . CHECKS and CORRECTIONS ................................... 58
16 . TABLE of CORRECTION STANDARDS ........................... 59
17 . MAINTENANCE and STORING .................................
17-1 Daily Checks and Maintenance ..............................
17-2 Every 20 Hours Checks and Maintenance .......................
17-3 Every 50 Hours Checks and Maintenance .......................
17-4 Every 100 - 200 Hours (Monthly) Checks and Maintenance ...........
17-5 Every 500 - 600 Hours (Semiannual) Checks and Maintenance .........
17-6 Every 1000 Hours (Yearly) Checks and Maintenance ................
17- 7 Preparation for Long Abeyance ..............................
65
65
65
65
65
66
66
66
.

Robin EY15 Specifications

General

Ignition System	Transistorized magneto
Starting System	Recoil starter
Compression Ratio	8.5:1
Fuel System	Carburetor
Engine Type	Single cylinder, 4-stroke, air-cooled
Displacement	143 cc
Maximum Torque	9.3 Nm / 3000 rpm
Dry Weight	13.5 kg
Lubrication	Splash
