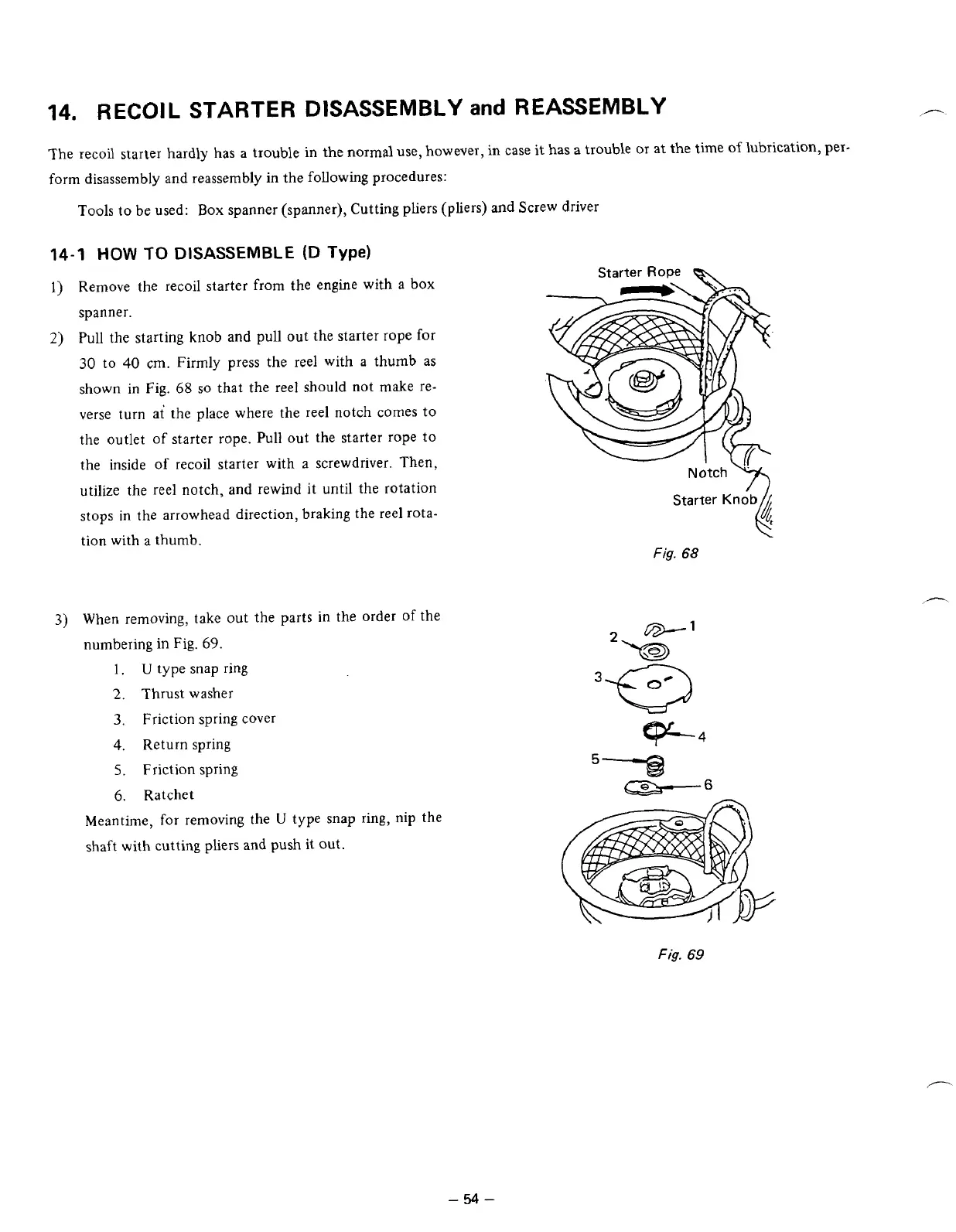

14.
RECOIL
STARTER DISASSEMBLY
and
REASSEMBLY
The recoil starter hardly
has
a trouble in the normal use, however, in case
it
has a trouble
or
at the time
of
lubrication, per-
form disassembly and reassembly in the following procedures:
Tools to be used:
Box
spanner (spanner), Cutting pliers (pliers) and Screw driver
14-1
HOW
TO
DISASSEMBLE
(D
Type)
Remove the recoil starter from the engine with
a
box
spanner.
Pull
the starting knob and pull out the starter rope
for
30
to
40
cm. Firmly press the reel with a thumb as
shown in
Fig.
68
so
that the reel should not make re-
verse turn ai the place where the reel notch comes to
the outlet
of
starter rope. Pull out the starter rope
to
the inside
of
recoil starter with
a
screwdriver. Then,
utilize the reel notch, and rewind it until the rotation
stops in the arrowhead direction, braking the reel rota-
tion with
a
thumb.
3)
When removing, take out the parts in the order
of
the
numbering in Fig.
69.
1.
U
type snap ring
2.
Thrust washer
3.
Friction spring cover
4.
Return spring
5.
Friction spring
6.
Ratchet
Meantime,
for
removing the
U
type snap ring, nip the
shaft with cutting pliers
and
push it out.
Starter
Rope
Notch
%
Starter
Knob
'4
Fig.
68
2
@-"
353
Fig.
69
-54-
