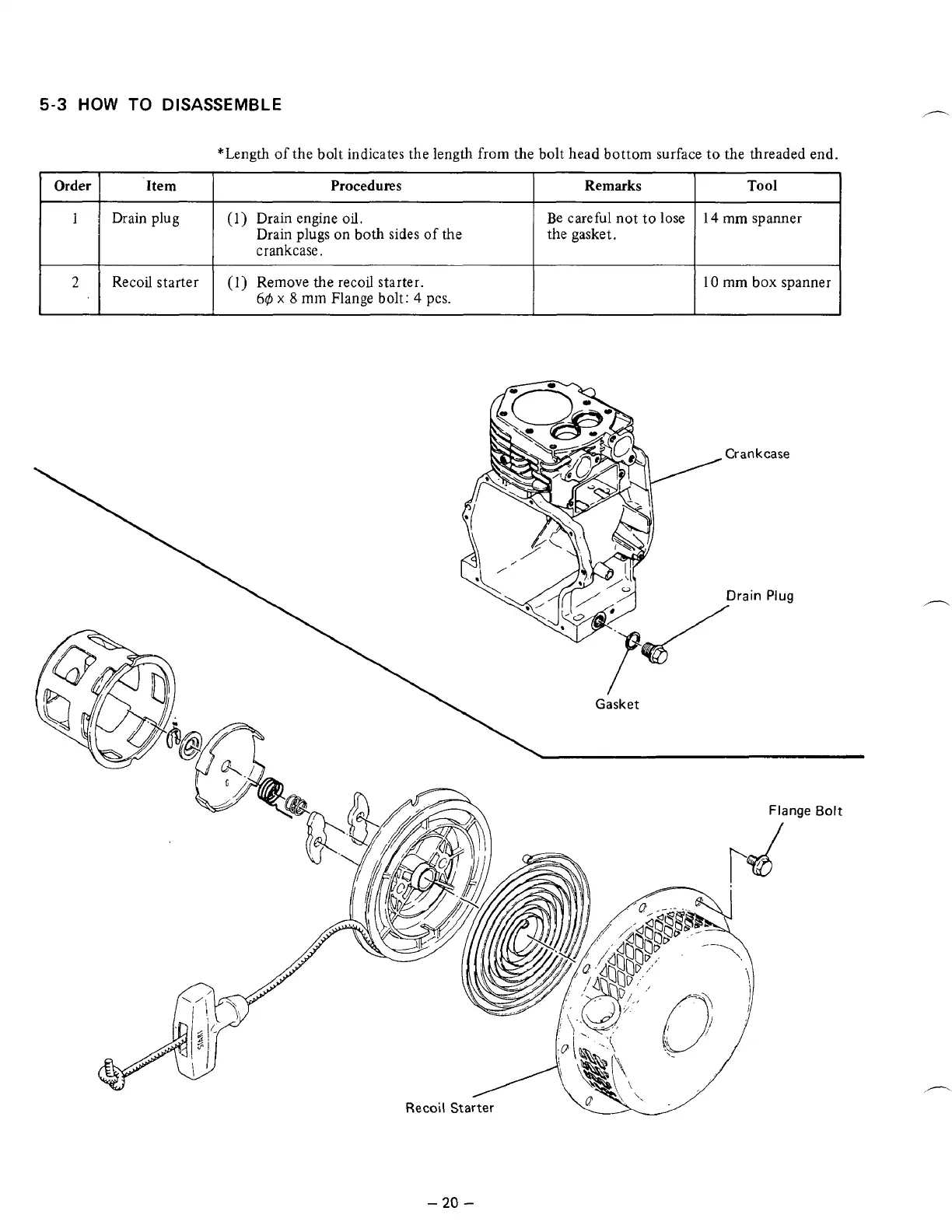

5-3 HOW TO DISASSEMBLE
*Length of the bolt indicates the length from the bolt head bottom surface to the threaded end.
I Order 1 Item
I:
Drain plug
Recoil starter
Procedures Tool Remarks
(1) Drain engine oil. 14 mm spanner Be careful not to lose
Drain plugs
on both sides of the
crankcase.
the gasket.
(1) Remove the recoil starter. 10 mm box spanner
6@ x 8 mm Flange bolt: 4 pcs.
Gasket
- 20 -
